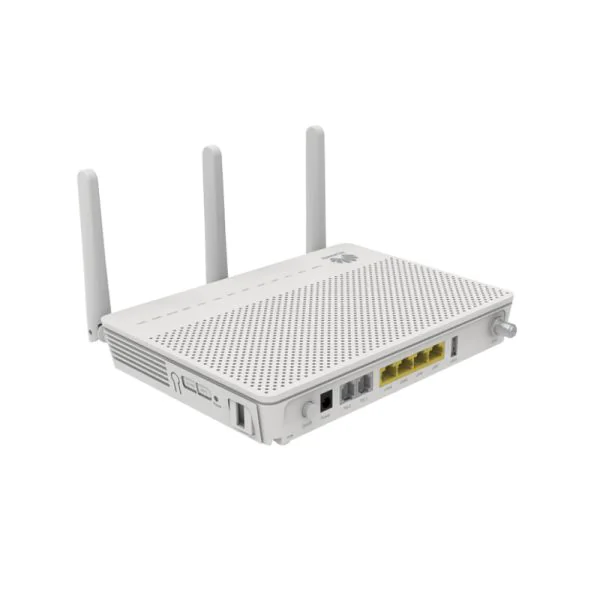

HKShanhai Group Limited EG8247Q, an intelligent routing-type ONT.
Product Details
HKShanhai Group Limited EG8247Q provides these features:
GPON Port
Class B+
Receiver sensitivity: -27 dBm
Overload optical power: -8 dBm
Wavelengths: US 1310nm, DS 1490nm
Wavelength blocking filter (WBF) of G.984.5
Flexible mapping between GEM Port and TCONT
consistent with the SN or password authentication defined in G.984.3
Bi-directional FEC
SR-DBA and NSR-DBA
Type B (single-homing&dual-homing)
Ethernet Electrical Port
Ethernet port-based VLAN tags and tag removal
1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
QinQ VLAN
Limit on the number of learned MAC addresses
MAC address learning
Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
CATV Port
Bandwidth 54 MHz to 870 MHz
Output resistance 75 ohms
Received average optical power: -8dBm to +2dBm
RF output power: 17dBmV/Ch With RF source analog channel power input = 20dBmV/ch, and 40 analog / 63 digital channels (4.3% omi analog, 2.15 % digital)
POTS Port
Maximum REN: 4
G.711A/, G.729a/b, and G.722 encoding/decoding
T.30/T.38/G.711 fax mode
DTMF
Emergency calls (with the SIP protocol)
USB Port
USB2.0
FTP-based network storage
File/Print sharing based on SAMBA
DLNA function
WLAN
IEEE 802.11 b/g/n (2.4G)
IEEE 802.11 a/n/ac (5G)
3 3 MIMO (2.4G/5G)
Antenna gain: 2 dBi
WMM/Multiple SSIDs/WPS
2.4G/5G concurrent
Air interface rate:450 Mbit/s (2.4G);1300 Mbit/s (5G)
Smart interconnection
Smart Wi-Fi coverage
SIP/H.248 auto-negotiation
Any port any service
Parental control
L2/L3 (IPv4) forwarding: 1G uplink, 2G downlink
Smart service
Scheduled Wi-Fi shutdown
Smart Wi-Fi sharing:
Portal/802.1x authentication
SoftGRE-based sharing
Association of one account with two POTS ports
Smart O&M
IPTV video quality diagnosis
eMDI
Rogue ONT detection and isolation from the OLT
Call emulation, and circuit test and loop-line test
PPPoE/DHCP simulation testing
WLAN emulation
eSight management
Layer 3 Features
PPPoE/Static IP/DHCP
NAT/NAPT
Port forwarding
ALG, UPnP
DDNS/DNS server/DNS client
IPv6/IPv4 dual stack, and DS-Lite
Static/Default routes
Multiple services on one WAN port
Multicast
IGMP v2/v3 proxy /snooping
MLD v1/v2 snooping
QoS
Ethernet port rate limitation
802.1p priority
SP/WRR/SP+WRR
Broadcast packet rate limitation
Security
SPI firewall
Filtering based on MAC/IP/URL addresses
Common O&M
OMCI/Web UI/TR069
Variable-length OMCI messages
Dual-system software backup and rollback
Power Saving
Indicator power saving
COC V5
Humanized design
Support one button to turn off all LEDs
Get More Information
Do you have any question about the EG8247Q
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited EG8247Q Specification
EG8247Q Specification |
|
|
Dimensions (Hx W x D) |
32 mm x 219 mm x 159 mm (without external antenna and pads) |
|
Operating temperature |
0°C to +40°C |
|
Operating humidity |
5% RH to 95% RH (non-condensing) |
|
Power adapter input |
100-240 V AC, 50/60 Hz |
|
System power supply |
11–14 V DC, 2 A |
|
Static power consumption |
6.6 W |
|
Max. power consumption |
24 W |
|
NNI |
GPON |
|
UNI |
2POTS + 4GE + 2.4G/5G Wi-Fi + 2USB+1CATV |
|
Optical connector |
SC/APC |
|
Indicators |
POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV |
|
Installation mode |
On the desk, or on the wall |
|
Compliance certification |
CE/WiFi |
