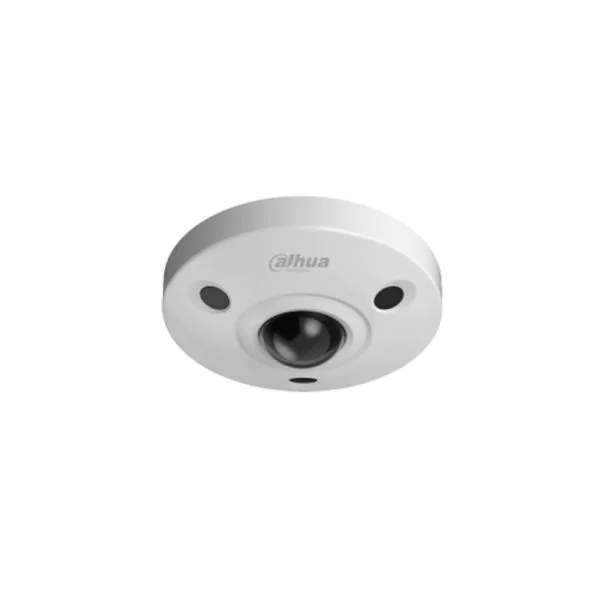

The Dahua IPC-EBW8630-IVC is a state-of-the-art 6MP Panoramic Network IR Fisheye Camera with a Panamorph Lens. Designed to deliver high-quality panoramic views, this camera is perfect for comprehensive surveillance in various environments. With advanced features and robust construction, it ensures reliable performance in diverse settings.
Quick Spec
| Image Sensor | 6MP CMOS |
| Lens Type | Panamorph |
| IR Range | Up to 10 meters |
| Video Compression | H.265/H.264 |
| Power Supply | PoE |
Product Features
- 6MP high-resolution CMOS sensor for clear imagery
- 360-degree panoramic view with Panamorph Lens
- Infrared night vision up to 10 meters for low-light conditions
- Supports advanced video compression formats H.265 and H.264
- Power over Ethernet (PoE) for simplified installation
Product Applications
- Retail stores: Monitor the entire store floor with a single camera for theft prevention and customer insights.
- Office spaces: Ensure comprehensive coverage of open-plan offices and entrance areas.
- Public areas: Ideal for monitoring public spaces such as malls, airports, and train stations for enhanced security.
Supported Options
| Wall Mount Bracket | PFB203W |
| Ceiling Mount Bracket | PFB220C |
| Pole Mount Bracket | PFA152-E |
Compare to Similar Items
| Model | Difference |
| Dahua IPC-EBW81230 | Features an 8MP sensor but lacks the Panamorph Lens |
| Dahua IPC-EBW5531 | Offers a 5MP sensor and wider IR range but uses a standard lens |
| Dahua IPC-EBW8630-IC | Similar specs but includes additional audio input capabilities |
Get more information
Contact our team through Live Chat or at sales@router-switch.com for further information about the product and its price. Check Dahua IPC-EBW8630-IVC price and IPC-EBW8630-IVC datasheet, buy Dahua IPC-EBW8630-IVC series with best price and fast shipping. Free Live Chat support is available.
Dahua EBW8630-IVC Specification
IPC-EBW8630-IVC Specifications |
|
| Brand | Dahua |
| Model | IPC-EBW8630-IVC |
| Type | Panoramic Network IR Fisheye Camera |
| Resolution | 6MP |
| Lens Type | Panamorph Lens |
| IR Distance | Up to 10 meters |
| Image Sensor | 1/1.86 Megapixel Progressive Scan CMOS |
| Angle of View | 360 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 25/30 fps@6MP |
| Min. Illumination | 0.01 Lux @F2.0, AGC ON; 0 Lux with IR |
| Day/Night | ICR |
| Audio | 1/1 channel in/out |
| Alarm | 2 channel in, 1 channel out |
| Micro SD | Up to 128GB |
| Operating Conditions | -30C to +60C (-22F to +140F) |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | < 9.5W |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Dimensions | 159.0 mm 51.3 mm (6.26″ 2.02″) |
| Net Weight | 0.98 kg (2.16 lb) |
