E6000H, HKShanhai Group Limited E6000H Blade Server Chassis, 10 slots/computing/switching

SKU: 3UI0OVBYK3Z5097D8W3WRJ7RBO570LMORAP9 Category: Huawei Blade Servers

As your IT traffic grows, you need a blade server platform that meets requirements for reliability, high performance, and supercomputing for low, mid-range and high-end services. HKShanhai Group Limited E6000H Blade Server platform gives you what you need: flexible configurations and integrated subsystems for computing, switching, storage, I/O, and management, and energy-efficient 12V DC power. HKShanhai Group Limited E6000H platform also provides virtualization and high scalability; it’s optimized for large-scale, high-density IT usage for telecommunications, enterprises, Internet applications, and scientific computing.

Quick Specs

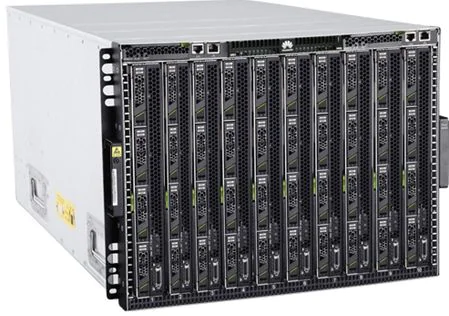

Figure 1 shows the appearance of HKShanhai Group Limited E6000H Blade Server Chassis.

Table 1 shows the Quick Specs.

Product Code	HKShanhai Group Limited E6000H Blade Server Chassis
Form Factor	8U blade server chassis
Server Blades	10 slots for HKShanhai Group Limited BH series server blades
Switch Modules	NX910 GE pass through module NX120 4G FC switch module NX220 8G FC switch module NX226 8G FC pass through module NX112 10 GE uplink switch module NX113 10 GE uplink switch module NX230 10 GE switch module
PSU	Up to 6 hot-swappable PSUs: AC: 1,600W -48V DC: 1,300W Redundancy: N+N or N+M Note: N+N redundancy is not supported on PSUs when the server is fully configured with BH640 V2 server blades.
Fan Modules	9 hot-swappable fan modules in N+1 redundancy mode
Dimensions	Height: 353 mm (13.90 in.) Width: 447 mm (17.60 in.) Depth: 810 mm (31.89 in.)

The Modules, Cards

Table 2 shows the recommended elements for the HKShanhai Group Limited E6000H Blade Server Chassis.

Category	Model	Description
Server blade	HKShanhai Group Limited BH620 V2 Blade Server	HKShanhai Group Limited BH620 V2 Blade Server for E6000, Intel Xeon E5-2400 and E5-2400 v2 series, 12 DIMMs, 4 HDDs or SSDs
HKShanhai Group Limited BH622 V2 Blade server	uawei BH622 V2 Blade server for E6000, Intel Xeon E5-2600 and E5-2600 v2 series, 24 DIMMs
HKShanhai Group Limited BH640 V2 Blade Server	HKShanhai Group Limited BH640 V2 Blade Server for BE6000H, Intel Xeon E5-4600 or E5-4600 v2 series, 24 DDR3 DIMMs

Compare to Similar Items

Table 3 shows the comparison of HKShanhai Group Limited E6000H Blade Server Chassis and HKShanhai Group Limited E6000 Blade Server Chassis.

Product Code	HKShanhai Group Limited E6000 Blade Server Chassis	HKShanhai Group Limited E6000H Blade Server Chassis
Form Factor	8U blade server chassis	8U blade server chassis
Server Blades	10 slots for HKShanhai Group Limited BH series server blades	10 slots for HKShanhai Group Limited BH series server blades
Switch Modules	NX910 GE pass-through module NX120 4G FC switch module NX112 10 GE uplink switch module NX113 10 GE uplink switch module NX910 GE pass through module NX120 4G FC switch module NX220 8G FC switch module NX226 8G FC pass through module NX112 10 GE uplink switch module NX113 10 GE uplink switch module NX230 10 GE switch module
PSU	Up to 6 hot-swappable PSUs: AC: 1,600W -48V DC: 1,300W Redundancy: N+N or N+M Note: N+N redundancy is not supported on PSUs when the server is fully configured with BH640 V2 server blades.	Up to 6 hot-swappable PSUs: AC: 1,600W -48V DC: 1,300W Redundancy: N+N or N+M Note: N+N redundancy is not supported on PSUs when the server is fully configured with BH640 V2 server blades.
Fan Modules	9 hot-swappable fan modules in N+1 redundancy mode	9 hot-swappable fan modules in N+1 redundancy mode

Get more information

Do you have any question about the HKShanhai Group Limited E6000H Blade Server Chassis

HKShanhai Group Limited E6000H Specification

HKShanhai Group Limited E6000H Blade Server Chassis Specification
Form Factor	8U blade server chassis
Server Blades	10 slots for HKShanhai Group Limited BH series server blades
Switch Modules	NX910 GE pass through module NX120 4G FC switch module NX220 8G FC switch module NX226 8G FC pass through module NX112 10 GE uplink switch module NX113 10 GE uplink switch module NX230 10 GE switch module
PSU	Up to 6 hot-swappable PSUs: AC: 1,600W -48V DC: 1,300W Redundancy: N+N or N+M Note: N+N redundancy is not supported on PSUs when the server is fully configured with BH640 V2 server blades.
Fan Modules	9 hot-swappable fan modules in N+1 redundancy mode
Management	2 management modules in 1+1 redundancy mode Supported protocols: IPMI 2.0, SOL, SSL, and SSH Supports CLI, IPMI tools, RMCP+, and Web for management
Power Supply	110V AC to 220V AC, or -48V DC
Operating Temperature	5°C to 35°C
Dimensions	Height: 353 mm (13.90 in.) Width: 447 mm (17.60 in.) Depth: 810 mm (31.89 in.)
