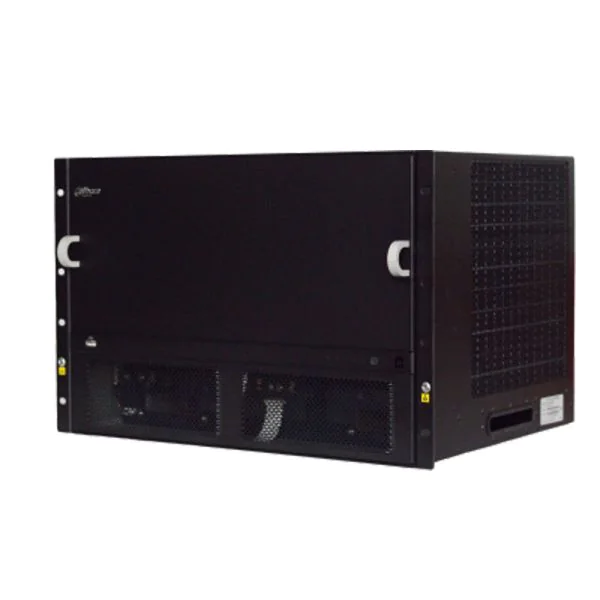

The Dahua DSCON3000-7U is a powerful multi-screen controller designed to deliver high-performance video wall solutions. This advanced controller offers unparalleled display capabilities, making it ideal for various complex and demanding environments. Its robust performance, combined with ease of use, ensures seamless integration into a diverse range of applications.
Quick Spec
| Brand | Dahua |
| Model | DSCON3000-7U |
| Input Slots | 7 |
| Video Output | Up to 32 screens |
| Max Resolution | Up to 4K |
Product Features
- High-definition multi-screen control and management
- Scalable architecture with modular input and output slots
- Supports up to 4K resolution for ultra-clear video quality
- Flexible control via software or physical panels
- Supports various video formats and sources
Product Applications
- Control rooms for enhanced situational awareness
- Commercial advertising video walls in malls and public spaces
- Large-scale event monitoring and surveillance operations
Supported Options
| HDMI Input Card | DH-HDMI-4K-HC |
| Display Port Output Card | DH-DP-4K-OC |
| Controller Management Software | CMS7000 |
Compare to Similar Items
| Dahua DSCON2000-4U | Lower input capacity, supports up to 16 screens |
| Dahua DSCON4000-10U | Higher input capacity, supports up to 48 screens |
| Dahua DSCON5000-14U | Advanced features, supports 8K resolution |
Get more information
Check Dahua DSCON3000-7U price and DSCON3000-7U datasheet, buy Dahua DSCON3000-7U Multi-screen Controller with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, you can contact us through Live Chat or sales@router-switch.com.
Dahua DSCON3000-7U Specification
DSCON3000-7U Specifications |
|
| Brand | Dahua |
| Model | DSCON3000-7U |
| Product Type | Multi-screen Controller |
| Inputs | 8x HDMI, 8x DVI, 8x VGA, 8x Composite |
| Outputs | 16x HDMI, 16x DVI |
| Maximum Video Resolution | 3840 x 2160 (4K) |
| Control Interface | Ethernet, RS232 |
| Operating System | Embedded Linux |
| Power Supply | 110-240V AC, 50-60Hz |
| Power Consumption | 500W |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 10% – 90% non-condensing |
| Dimensions (W x H x D) | 482 mm x 310 mm x 650 mm |
| Mount Type | 19″ Rack-Mount |
| Color Depth | 10-bit |
| Network Protocols | TCP/IP, DHCP, HTTP, RTSP |
| Audio Support | Yes, integrated |
| Firmware Upgrade | Through USB or network |
| User Interface | Web-based GUI |
| Compliance | CE, FCC, RoHS |
