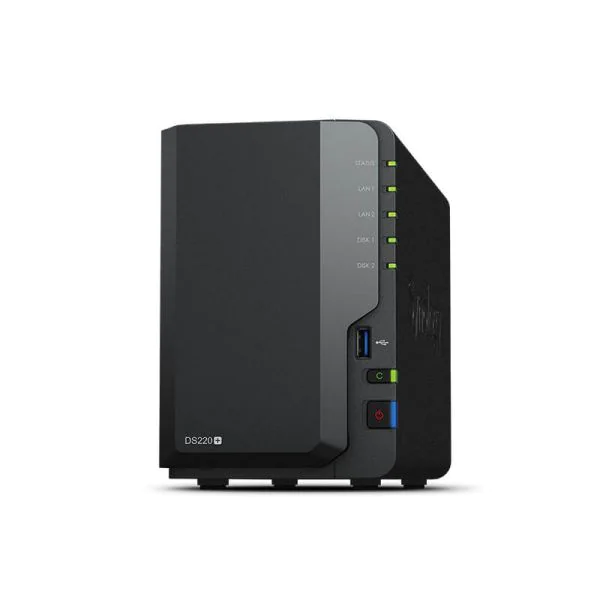

Synology DS220+ is a compact network-attached storage solution designed to streamline your data and multimedia management. It features smooth data sharing, video streaming, and photo indexing, as well as well-rounded data protection and recovery options.
Quick Spec
Table 1 shows the quick spec.
Product Code
DS220+
CPU Model
Intel Celeron J4025
CPU Quantity
1
CPU Architecture
64-bit
CPU Frequency
2-core 2.0 (base) / 2.9 (burst) GHz
Hardware Encryption Engine (AES-NI)
??/p>
System Memory
2 GB DDR4 non-ECC
Total Memory Slots
1
Maximum Memory Capacity
6 GB (2 GB + 4 GB)
Drive Bays
2
Compatible Drive Type* (See all supported drives)
3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
Maximum Single Volume Size*
108 TB
Product Details
Synology DS220+ provides these features and benefits:
Contact us now via Live Chat or sales@router-switch.com.
Synology DS220+ Specification
DS220+ Specification
CPU
CPU Model
Intel Celeron J4025
CPU Quantity
1
CPU Architecture
64-bit
CPU Frequency
2-core 2.0 (base) / 2.9 (burst) GHz
Hardware Encryption Engine (AES-NI)
??/p>
Memory
System Memory
2 GB DDR4 non-ECC
Total Memory Slots
1
Maximum Memory Capacity
6 GB (2 GB + 4 GB)
Notes
* Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
* Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Drive Bays
2
Compatible Drive Type* (See all supported drives)
3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
Maximum Single Volume Size*
108 TB
Hot Swappable Drive
??/p>
Notes
* “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
* Each internal volume (may consist of multiple drives) is expandable up to 108TB.
External Ports
RJ-45 1GbE LAN Port
2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port*
2
USB / SD Copy
??/p>
Notes
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT
Appearance
Size (Height x Width x Depth)
165 mm x 108 mm x 232.2 mm
Weight
1.30 kg
Others
System Fan
92 mm x 92 mm x 1 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Brightness Adjustable Front LED Indicators
??/p>
Power Recovery
??/p>
Noise Level*
19.3 dB(A)
Scheduled Power On / Off
??/p>
Wake on LAN / WAN
??/p>
Power Supply Unit / Adapter
60 W
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption*
14.69 W (Access)
4.41 W (HDD Hibernation)
British Thermal Unit
50.12 BTU/hr (Access)
15.05 BTU/hr (HDD Hibernation)
Notes
* Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
* Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-5°F to 140°F)
Relative Humidity
5% to 95% RH
Certification
FCC
CE
BSMI
EAC
CCC
KC
VCCI
RCM
Warranty
2 Years
Notes: The warranty period starts from the purchase date as stated on your purchase receipt.
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1
Optional Accessories
DDR4 non-ECC SODIMM: D4NESO-2666-4G
3.5″ SATA HDD: HAT5300
2.5″ SATA SSD: SAT5200
VisualStation: VS960HD/VS360HD
Surveillance Device License Pack
Notes: All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
Storage Management
Maximum Internal Volume Number
64
Supported RAID Type
??/p>
Synology Hybrid RAID
Basic
JBOD
RAID 0
RAID 1
RAID Migration
Basic to RAID 1
Volume Expansion with Larger HDDs
Synology Hybrid RAID
RAID 1
Volume Expansion by Adding a HDD
Synology Hybrid RAID
File Services
File Protocol
SMB/AFP/NFS/FTP/WebDAV
Maximum Concurrent SMB/AFP/FTP Connections
500
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)
1,500
Windows Access Control List (ACL) Integration
??/p>
NFS Kerberos Authentication
??/p>
Notes
* Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
* The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
