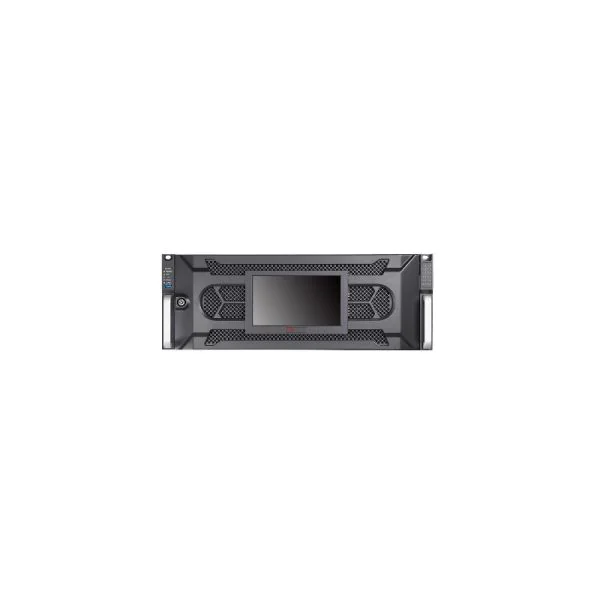

Introducing the Hikvision DS-96256NI-I24, a 256-channel 4U 4K Super NVR, designed for large-scale, high-resolution video surveillance. With cutting-edge software and robust hardware, this NVR provides top-notch performance, storage solutions, and seamless integration for any extensive surveillance needs. Perfect for critical infrastructures and environments requiring rigorous monitoring.
Quick Spec
| Channels | 256 |
| Rack Unit | 4U |
| Resolution | 4K |
| HDD Bays | 24 |
| Network Interfaces | 4 x Gigabit Ethernet |
Product Features
- Supports up to 256 IP cameras
- 4K ultra-high definition resolution
- H.265+/H.265/H.264+/H.264 video formats
- Hot-swappable HDD design
- Advanced video analytics
Product Applications
- City surveillance and traffic monitoring
- Large enterprise security systems
- Airport and transit hubs
Supported Options
| Accessory | Model |
| Storage Expansion Unit | Hikvision DS-A82024D |
| Rack Mount Kit | Hikvision RMC-240 |
| PoE Switch | Hikvision DS-3E1326P-E |
Compare to Similar Items
| Model | Differences |
| Hikvision DS-96128NI-I16 | 128 channels, 16 HDD bays |
| Hikvision DS-9632NI-I8 | 32 channels, 8 HDD bays |
| Hikvision DS-96064NI-I16 | 64 channels, 16 HDD bays |
Get more information
For additional details and pricing on the Hikvision DS-96256NI-I24, reach out through Live Chat or contact us at sales@router-switch.com. Check Hikvision DS-96256NI-I24 price and DS-96256NI-I24 datasheet, buy Hikvision DS-96256NI-I24 with the best price and fast shipping. Free Live Chat support is available.
Hikvision DS-96256NI-I24 Specification
DS-96256NI-I24 Specifications |
|
| Brand | Hikvision |
| Model | DS-96256NI-I24 |
| Channels | 256 |
| Form Factor | 4U |
| Resolution | 4K |
| HDMI Output | 2 HDMI outputs |
| VGA Output | 1 VGA output |
| LAN Interface | 4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| USB Interface | 2 USB 3.0, 1 USB 2.0 |
| Alarm In | 16 |
| Alarm Out | 8 |
| Power Supply | 100 ~ 240 VAC, 6.3 A, 50 ~ 60 Hz |
| Decoding Format | H.265+/H.265/H.264+/H.264/MPEG4 |
| Max Incoming Bandwidth | 768 Mbps |
| Max Recording Bandwidth | 256 Mbps |
| Max Decoding Capability | 20-ch @ 1080P |
| RAID Levels | 0, 1, 5, 6, 10 |
| Network Protocols | TCP/IP, DHCP, Hik-Connect, RTSP, NTP, UPnP, SADP, SMTP, NFS |
| Operating Temperature | -10��C ~ +55��C (14��F ~ 131��F) |
| Dimensions (W x D x H) | 445 mm �� 470 mm �� 146 mm |
| Power Consumption | �� 80 W (without HDD) |
| Playback Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Video Output | 2 HDMI, 2 VGA, 1 TV |
