The Hikvision DS-7732NI-K4/16P is a 32 channels network video recorder with a wide array of features, including 16 PoE network interfaces, support for up to 4k (8MP) resolution recording and playback, H.264/H.264+/H.265/H.265+ codecs, and a dual OS design for reliability and failover redundancy.
Quick Specs

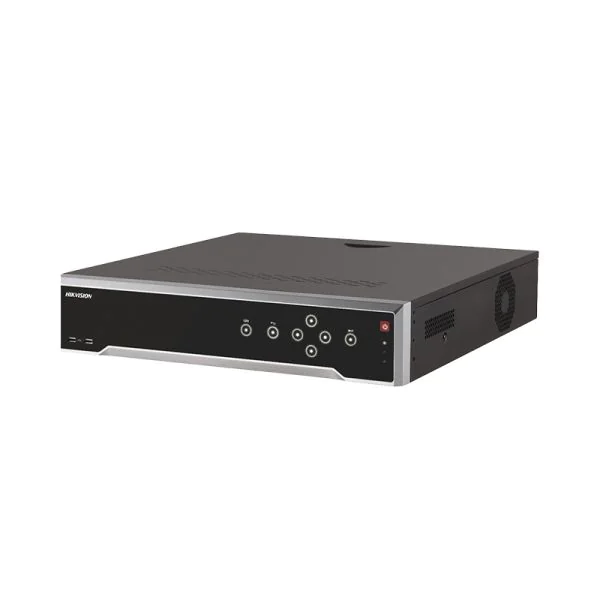

Figure 1 shows the appearance of DS-7732NI-K4/16P.
Table 1 shows the Quick Specs.
|
Product Code |
DS-7732NI-K4/16P |
|
Interface |
16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|
Standard |
IEEE 802.3 af/at |
|
Power |
??200 W |
|
Power Supply |
100 to 240 VAC, 50 to 60Hz, 1 A |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10 to 90 % |
|
Dimension (W Ă— D Ă— H) |
445 Ă— 400 Ă— 71 mm (17.5″Ă— 15.7″ Ă— 2.8″) |
Product Details
Figure 2 shows the back panel of DS-7732NI-K4/16P.
Figure 3 shows kits of DS-7732NI-K4/16P.
Product Features
- Up to 32 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 8-ch @ 1080p decoding capacity
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 4 HDDs for continuous video recording
- Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
- Supports various specific function cameras, including thermal camera /fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
- Channel-zero function ensures smooth remote live view and playback in low bandwidth environments
Compare to Similar Items
Table 2 shows the comparison of DS-7732NI-K4/16P.
|
Module |
DS-7732NI-K4/16P |
|
|
IP Video Input |
32-ch |
8-ch, Up to 8 MP resolution |
|
Incoming Bandwidth |
256 Mbps |
80 Mbps |
|
Power Supply  |
100 to 240 VAC, 50 to 60Hz, 1 A |
100 to 240 VAC, ??80 W Â |
|
Consumption  |
??20 W (without enabling PoE and HDD) |
??15 W |
|
Dimension (W Ă— D Ă— H) Â |
445 Ă— 400 Ă— 71 mm (17.5″Ă— 15.7″ Ă— 2.8″) |
440 Ă— 393 Ă— 75 mm (17.3″ Ă— 15.5″ Ă— 3.0″) |
Get More Information
Do you have any question about the DS-7732NI-K4/16P?
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-7732NI-K4/16P Specification
DS-7732NI-K4/16P Specifications |
|
|---|---|
| Video and Audio | |
| IP Video Input | 8-ch |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| HDMI Output | 4K (3840 Ă— 2160)/30 Hz, 2K (2560 Ă— 1440)/60 Hz, 1920 Ă— 1080/60 Hz, 1600 Ă— 1200/60 Hz, 1280 Ă— 1024/60 Hz, 1280 Ă— 720/60 Hz |
| VGA Output | 1920 Ă— 1080/60 Hz, 1280 Ă— 1024/60 Hz, 1280 Ă— 720/60 Hz |
| Video Output Mode | HDMI/VGA independent output |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input) |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8-ch |
| Decoding Capability | 2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Network | |
| Remote Connection | 128-ch |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?? HTTP, HTTPS |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ??80 W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 10 TB capacity for each HDD |
| USB Interface | Front panel: 1 Ă— USB 2.0; Rear panel: 1 Ă— USB 2.0 |
| Alarm In/Out | 4/1 |
| General | |
| Power Supply | 48 VDC, 2.5A |
| Consumption | ??15 W (without HDD and PoE off) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 to 90 % |
| Dimension (W Ă— D Ă— H) | 380 Ă— 317 Ă— 51.5 mm (15.0″ Ă— 12.5″ Ă— 2.0″) |
| Weight | ??3 kg (without HDD, 6.6 lb.) |
