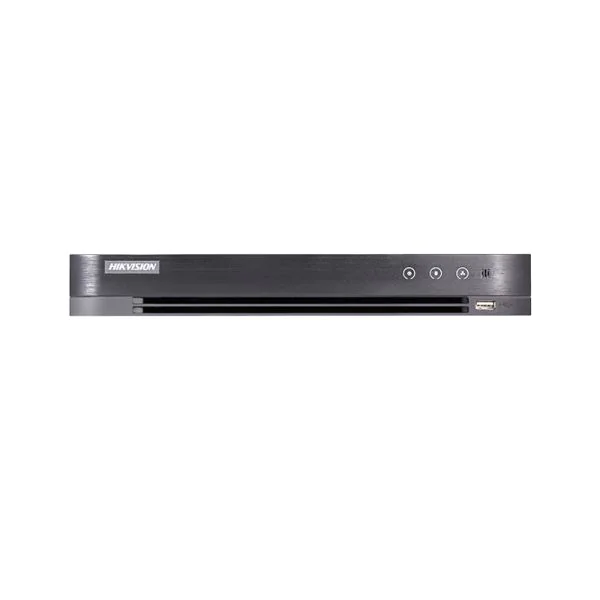

DS-7208HQHI-K1, Hikvision DS-7200 Series DVR, 8-ch 1080p, 1U, H.265

DS-7208HQHI-K1 Specification

Model

DS-7208HQHI-K1

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,

Frame Rate

Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bit Rate

32 Kbps to 6 Mbps

Dual Stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bit Rate

64 Kbps

Video And Audio

IP Video Input

4-ch (up to 12-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

AHD Input

4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Input

PAL/NTSC

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback

8-ch

HDTVI Input

4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.,

VGA/HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Network

Remote Connections

64

Network Protocols

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP??span>, HTTPS, ONVIF

Network Interface

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 10 TB capacity for each disk

Alarm In/Out

N/A

USB Interface

2 × USB 2.0

Serial Interface

RS-485 (half-duplex)

General

Power Supply

12 VDC

Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity

10 to 90 %

Dimension (W × D × H)

315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

Consumption (Without HDD)

??span> 7.5 W
