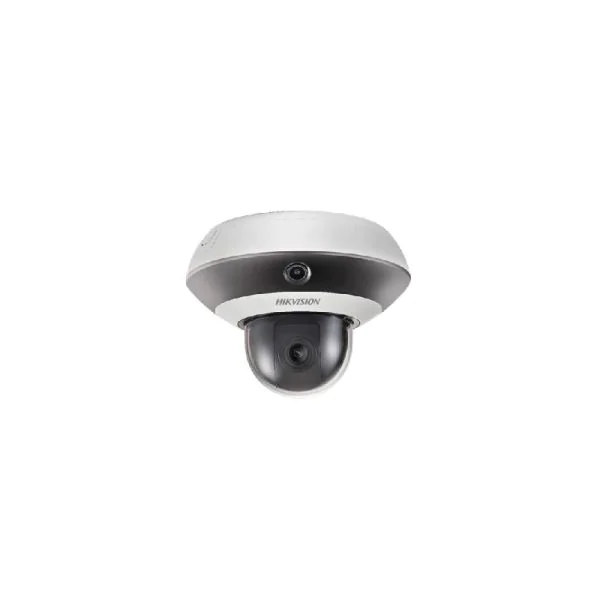

The Hikvision DS-2PT3122IZ PT3 Mini PanoVu is a compact and advanced panoramic camera designed for comprehensive surveillance solutions. Its high-performance features and cutting-edge technology make it ideal for a variety of security needs, offering an exceptional field of view and clarity to ensure maximum coverage.
Quick Spec
| Brand | Hikvision |
| Model | DS-2PT3122IZ |
| Series | PT3 Mini PanoVu |
| Resolution | 3 MP |
| Lens | 2.8-12 mm motorized zoom lens |
Product Features
- 360panoramic view for comprehensive coverage
- High-definition 3 MP resolution for clear imaging
- Smart Tracking capability
- Integrated IR illumination for low-light conditions
- Weatherproof and vandal-resistant design for durability
Product Applications
- City surveillance and public safety
- Commercial building security
- Critical infrastructure monitoring
Supported Options
| Wall Mount | DS-1602ZJ |
| Ceiling Mount | DS-1602ZJ-c |
| Pendant Mount | DS-1661ZJ |
Compare to Similar Items
| Model | Differences |
| DS-2DE4A425IW-DE | 4 MP resolution, 25x optical zoom |
| DS-2CD2143G0-I | Fixed lens, 4 MP resolution |
| DS-2CD2183G0-I | 8 MP resolution, fixed lens |
Get more information
Contact through Live Chat or sales@router-switch.com for further information about the product and its price. Check “Hikvision DS-2PT3122IZ price” and “DS-2PT3122IZ datasheet”, buy “Hikvision DS-2PT3122IZ PT3 Mini PanoVu” with best price and fast shipping. Free Live Chat are supported.
Hikvision DS-2PT3122IZ Specification
DS-2PT3122IZ Specifications |
|
| Brand | Hikvision |
| Model | PT3 Mini PanoVu DS-2PT3122IZ |
| Type | PanoVu Camera |
| Sensor Type | 1/2.8″ Progressive Scan CMOS |
| Resolution | 1920 x 1080 |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Lens | 2.8 �C 12 mm Motorized Lens |
| Field of View | Horizontal: 112.7�� to 30.1��, Vertical: 61.3�� to 16.9�� |
| IR Range | Up to 20m |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM |
| Frame Rate | Main Stream: 50Hz: 25fps (1920 �� 1080, 1280 �� 720), 60Hz: 30fps (1920 �� 1080, 1280 �� 720) |
| Image Enhancement | BLC, 3D DNR, HLC, Defog |
| Day/Night Mode | IR Cut Filter with Auto Switch |
| Pan/Tilt Range | Pan: 0�� to 330��, Tilt: -5�� to 90�� |
| Pan/Tilt Speed | Pan Speed: Up to 100��/s, Tilt Speed: Up to 30��/s |
| Network Interface | 1 RJ45 10M/100M Ethernet Interface |
| Power Supply | 12V DC �� 10%, PoE (802.3af) |
| Power Consumption | Max. 10W |
| Operating Conditions | -30��C to 60��C (-22��F to 140��F), Humidity 95% or less (non-condensing) |
