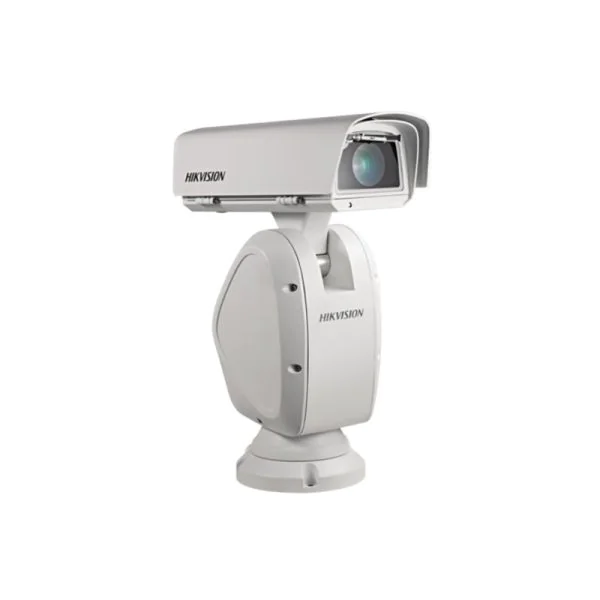

The Hikvision DS-2DY9236X-A(T3) is a 9-inch 2 MP 36X DarkFighter Network Positioning System, renowned for its exceptional low-light performance and powerful zoom capabilities. Designed for comprehensive surveillance, it offers top-tier clarity and precision, making it ideal for various high-security applications.
Quick Spec
| Image Sensor | 2 MP |
| Zoom | 36X Optical |
| Low-Light Technology | DarkFighter |
| Display Size | 9-inch |
| Network | Network Positioning System |
Product Features
- Exceptional low-light performance with DarkFighter technology
- 36X optical zoom for detailed close-up captures
- High-definition 2 MP resolution
- 9-inch display for clear and precise monitoring
- Network positioning for enhanced coverage and control
Product Applications
- Urban surveillance for monitoring large city environments
- Critical infrastructure protection such as power plants and airports
- Trouble-spot monitoring in large industrial complexes
Supported Options
| Accessory | Model |
| Wall Mount | DS-1602ZJ |
| Ceiling Mount | DS-1660ZJ |
| Junction Box | DS-1603ZJ-Box |
Compare to Similar Items
| Model | Differences |
| DS-2DY9236X-A(T2) | Previous generation with lower specs |
| DS-2DE4425IW-DE(T5) | Less zoom capability, 25X optical zoom |
| DS-2DF9C435IW-AELW | 4 MP resolution but no DarkFighter technology |
Get more information
Check Hikvision DS-2DY9236X-A(T3) price and DS-2DY9236X-A(T3) datasheet, buy Hikvision DS-2DY9236X-A(T3) with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact us through Live Chat or sales@router-switch.com.
Hikvision DS-2DY9236X-A(T3) Specification
DS-2DY9236X-A(T3) Specifications |
|
| Brand | Hikvision |
| Product Name | DS-2DY9236X-A(T3) |
| Camera Type | Network Positioning System |
| Camera Form Factor | 9-inch |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Resolution | 2 MP (1920 1080) |
| Optical Zoom | 36X |
| Digital Zoom | 16X |
| Min. Illumination | Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON) |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day/Night Mode | IR Cut Filter |
| IR Distance | Up to 300 meters |
| Pan Range | 360endless |
| Tilt Range | -20to 90 |
| Video Compression | H.265/H.264/MJPEG |
| Network Interface | RJ45 10M/100M Ethernet Interface |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP |
| Audio In/Out | 1-ch audio input, 1-ch audio output |
| Alarm In/Out | 7-ch alarm input, 2-ch alarm output |
| Power Supply | 24 VAC, PoE+ (802.3at) |
| Power Consumption | Max. 48W |
| Operating Conditions | -40C to 65C (-40F to 149F) |
| Ingress Protection | IP66 |
