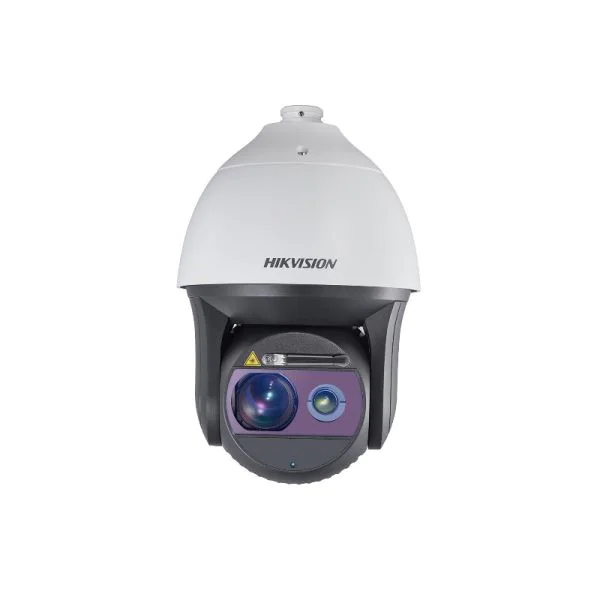

The Hikvision DS-2DF8242I5X-AELW(T3) is an advanced 8-inch 2 MP 42X DarkFighter Laser Network Speed Dome that offers exceptional performance in low-light environments. Featuring extensive zoom capabilities and robust technological enhancements, this speed dome is tailored for high-demand surveillance applications, combining clarity, speed, and broad coverage in a single device.
Quick Spec
| Brand | Hikvision |
| Model | DS-2DF8242I5X-AELW(T3) |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Resolution | 19201080 |
| Zoom | 42X optical, 16X digital |
Product Features
- DarkFighter technology for superior low-light performance
- 42X optical zoom and 16X digital zoom capability
- Smart tracking and 3D positioning
- Built-in laser light to enhance nighttime visibility
- Supports face detection, perimeter protection, and unattended baggage detection
Product Applications
- High-security zones like airports and train stations
- City surveillance and traffic management
- Critical infrastructure monitoring such as power plants and oil refineries
Supported Options
| Accessory | Model |
| Wall Mount Bracket | DS-1602ZJ |
| Ceiling Mount | DS-1604ZJ-Box |
| Surge Protector | DS-1005KI |
Compare to Similar Items
| Feature | DS-2DF8242I5X-AELW(T3) | DS-2DE7232IW-AE | DS-2DE7225IW-AE |
| Image Sensor | 8-inch 2 MP | 7-inch 2 MP | 6-inch 2 MP |
| Optical Zoom | 42X | 32X | 25X |
| Digital Zoom | 16X | 16X | 16X |
| Laser Light | Yes | No | No |
| Smart Features | Yes | Yes | Yes |
Get more information
For more details about the Hikvision DS-2DF8242I5X-AELW(T3), please contact us through Live Chat or email us at sales@router-switch.com. Check Hikvision DS-2DF8242I5X-AELW(T3) price and DS-2DF8242I5X-AELW(T3) datasheet, and buy Hikvision DS-2DF8242I5X series products at the best price with fast shipping. Free Live Chat support is available.
Hikvision DS-2DF8242I5X-AELW(T3) Specification
DS-2DF8242I5X-AELW(T3) Specifications |
|
| Brand | Hikvision |
| Model | DS-2DF8242I5X-AELW(T3) |
| Camera Type | Network Speed Dome |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Effective Pixels | 2 MP (1920 x 1080) |
| Minimum Illumination | Color: 0.002 Lux; B/W: 0.0002 Lux; 0 Lux with IR |
| Laser Distance | Up to 500 m |
| Zoom Ratio | 42X Optical Zoom |
| Lens | 5.8-240 mm |
| Field of View | 58.6to 1.6(Wide-Tele) |
| Max. Aperture | F1.5 – F4.0 |
| S/N Ratio | More than 55 dB |
| Shutter Speed | 1/1 to 1/30,000s |
| Day/Night Mode | Auto/Color/BW |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Audio Input | 1 Mic In/Line In interface, 2.0 to 2.4 V[p-p], 1k10% |
| Audio Output | 1-ch (LINE OUT), 2.0 to 2.4 V[p-p], 300(shared with Dual-purpose LINE IN/LINE OUT Audio Interface) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SMTP, UPnP, SNMP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, NTP, DNS, QoS, FTP, etc. |
| Operating Conditions | -30C to 65C (-22F to 149F), Humidity 90% or less (non-condensing) |
| Power Supply | 24 VAC; Hi-PoE |
| Power Consumption | Max. 60 W with IR and Heater on |
| Protection Level | IP67, IK10 |
