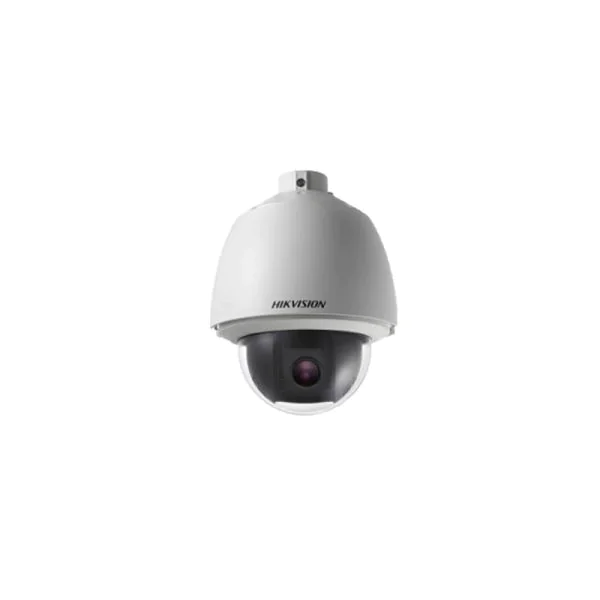

DS-2DE5330W-AE, Hikvision DS-2DE5330W Series PTZ Camera, 3MP Max Res/30X Optical Zoom/IP66 Protection

DS-2DE5330W-AE Specification

Camera

Image Sensor

1/2.8″ Progressive Scan CMOS

Effective Pixels

2048(H)x1536(V)

Signal System

PAL/NTSC

Minimum Illumination

F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux,

White Balance

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC

Auto/Manual

BLC

ON/OFF

HLC

Support

Smart defog

Support

WDR

DWDR

Shutter Time

1-1/10,000s

Day& Night

ICR

Digital Zoom

16X

Privacy Mask

2 programmable privacy masks

Auto Focus

Auto / Semi-automatic / Manual

Lens

Focal Length

4.3-129mm, 30x

Zoom Speed

Approx.3s(Optical Wide-Tele)

Field of View

57.4° to 2.8°degree (Wide-Tele)

Minimum Working Distance

10-1500mm(Wide-Tele)

Aperture Range

F1.6-F5.0

Pan & Tilt

Pan Range

360°endless

Pan Speed

Pan Manual Speed: 0.1° -250°/s, Pan Preset Speed: 300°/s

Tilt Range

-5°~90° (Auto Flip )

Tilt Speed

Tilt Manual Speed: 0.1°-150°/s, Tilt Preset Speed: 200°/s

Proportional Zoom

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset

300

Patrol

8 patrols, up to 32 presets per patrol

Pattern

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Support

Park Action

Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

PTZ Position Display

ON/OFF

Alarm

Alarm Input

2

Alarm Linkage

Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage

Input & Output

Audio Input

1 Mic in/Line in interface

Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%

Audio Output

1 Audio output interface

Line level, impedance: 600Ω

Network

Ethernet

10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution

1920×1080

Main Stream

50Hz:25fps (2048×1536,1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;

60Hz:30fps(2048×1536,1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)

Sub Stream

50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)

Third Stream

50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288)

60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288)

Video Compression

H.264 / MJPEG

ROI encoding

Support 2 areas with adjustable levels

Audio Compression

G.711ulaw/G.711alaw/G.726/MP2L2

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP,

PPPoE

Simultaneous Live View

Up to 20 channels

Storage

Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording

User/Host

Up to 32 users,3 Levels: Administrator, Operator and User

Security Measures

User authentication (ID and PW), host authentication (MAC address)

Client GUI

Camera Control

Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode

Date & Time Display

Time: Week: Date, 6 formats on the Client

Client

Support iVMS-4200

Web Browser

IE 7+, Chrome 18 – 42, Firefox 5.0 +, Safari 5.02 +

General

Language

English

Power Supply

AC 24V and PoE (802.3at, class4)

Power Consumption

Max. 18W

Working Temperature/Humidity

-30 ??65??-22??149??(outdoor dome) / -10??50??14??122??(indoor dome ) 90% or less

Protection Level

IP66, IK10 TVS 4,000V lightning protection, surge protection and voltage transient protection

Mounting

Various mounting modes optional

Dimensions

Φ220×305mm (Φ8.66”??2.02??(Outdoor)

Φ183.4×243mm(Φ7.22”??.56?? (Indoor ceiling)

Φ245×236mm(Φ9.65”??.29?? (Indoor in-ceiling)

Mount Option

Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
