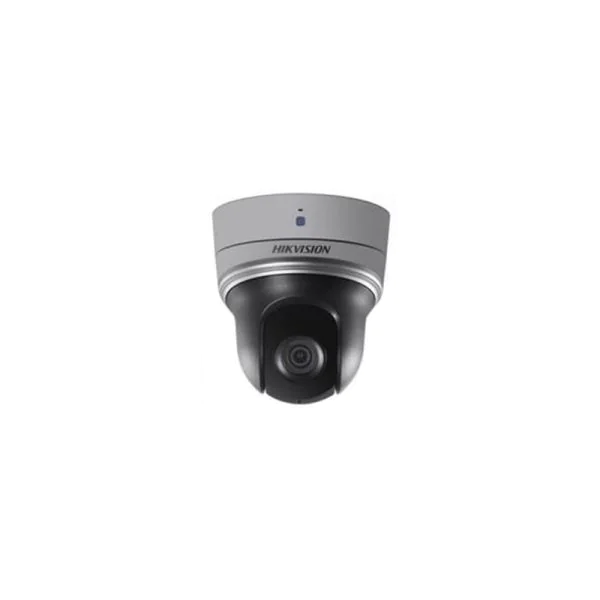

Hikvision DS-2DE2204IW-DE3, this IR Mini PTZ Camera shows the easy installation, adjustment, and maintenance. It is a camera for indoor area such as the caf, hotel, office lobby, small shop, etc. In addition, DS-2DE2204IW supports 4x zoom, Hik-Connect, and PoE & 12VDC power supply. Embedded with 1/2.8″ progressive scan CMOS chip makes DWDR and 2.0MP real-time resolution possible. With the pan/tilt, 4x zoom Day/Night IR cut filter, and the IR lights, the camera offers more details in the indoor environments. Hikvision DS-2DE2204IW Mini PTZ Camera also features a wide range of functions, including intrusion detection, line crossing detection, audio exception detection, motion detection, and video tampering detection, benefitting users with great improvement on security efficiency, more importantly, with key events/objects being recorded for further forensic needs.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-2DE2204IW-DE3 |
|
Image Sensor |
1/2.8″ Progressive Scan CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
Signal System |
PAL/NTSC |
|
Minimum Illumination |
Color: 0.05 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @ (F2.0, AGC ON) |
|
White Balance |
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
|
AGC |
Auto/Manual |
|
HLC |
Support |
|
WDR |
DWDR |
|
Shutter Time |
1/1 to 1/10,000s |
|
Day& Night |
ICR |
|
Digital Zoom |
16 |
|
Privacy Mask |
8 programmable privacy masks |
|
Auto Focus |
Auto / Semi-automatic / Manual |
Product Details
Hikvision DS-2DE2204IW-DE3 provides these key features:
1/2.8″ Progressive Scan CMOS
1920 1080@30fps Resolution
4x Zoom
DWDR
3D positioning
PoE (802.3af)
Hik-Connect
Up to 20m IR distance
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
DS-2DE2204IW-DE3 |
|
|
Image Sensor |
1/2.8″ Progressive Scan CMOS |
1/2.8″ Progressive Scan CMOS |
|
Effective Pixels |
2048(H)x1536(V) |
1920(H)x1080(V) |
|
Minimum Illumination |
F1.6, AGC On: Color: 0.05 lux, B/W: 0.01 lux |
Color: 0.05 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @ (F2.0, AGC ON) |
|
WDR |
DWDR |
DWDR |
|
Auto Focus |
Auto / Semi-automatic / Manual |
Auto / Semi-automatic / Manual |
Get More Information
Do you have any question about the DS-2DE2204IW-DE3
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-2DE2204IW-DE3 Specification
DS-2DE2204IW-DE3 Specification |
|
|
Camera |
|
|
Image Sensor |
1/2.8″ Progressive Scan CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
Signal System |
PAL/NTSC |
|
Minimum Illumination |
Color: 0.05 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @ (F2.0, AGC ON) |
|
White Balance |
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
|
AGC |
Auto/Manual |
|
HLC |
Support |
|
WDR |
DWDR |
|
Shutter Time |
1/1 to 1/10,000s |
|
Day& Night |
ICR |
|
Digital Zoom |
16Ă— |
|
Privacy Mask |
8 programmable privacy masks |
|
Auto Focus |
Auto / Semi-automatic / Manual |
|
Lens |
|
|
Focal Length |
2.8 to 12mm, 4Ă— |
|
Zoom Speed |
Approx. 2s (optical lens, wide-tele) |
|
Field of View |
100° to 25° (wide-tele) |
|
Minimum Working Distance |
10 to 1500mm (wide-tele) |
|
Aperture Range |
F1.8 to F2.5 |
|
Pan & Tilt |
|
|
Pan Range |
Pan: 0~350° |
|
Pan Speed |
0.1° to 60°/s |
|
Tilt Range |
Tilt: 0°~90° |
|
Tilt Speed |
0.1°to 50°/s |
|
Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Number of Preset |
300 |
|
Patrol |
8 patrols, up to 32 presets per patrol |
|
Power-off Memory |
Support |
|
Park Action |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
|
PTZ Position Display |
ON/OFF |
|
Infrared |
|
|
IR Distance |
20m |
|
IR irradiation angle |
Adjustable by zoom |
|
Alarm |
|
|
Alarm Input |
1 |
|
Alarm Linkage |
Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage |
|
Input & Output |
|
|
Audio Input |
Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% |
|
Audio Output |
1 channel audio output, linear level |
|
Network |
|
|
Ethernet |
10Base -T, /100Base-TX, RJ45 Connector |
|
Max.Image Resolution |
1920Ă—1080 |
|
Main Stream |
50Hz: 25fps(1920Ă—1080), 25fps(1280Ă—960), 25fps (1280Ă—720) 60Hz: 30fps(1920Ă—1080), 30fps(1280Ă—960), 30fps (1280Ă—720) |
|
Sub Stream |
50Hz: 25fps(704Ă—576, 640×480,352Ă—288); 60Hz: 30fps(704Ă—480, 640×480,352Ă—240) |
|
Third Stream |
50Hz:25fps(1280Ă—960), 25fps (1280Ă—720), 25fps(704Ă—576), 25fps (352Ă—288), 25fps (176Ă—144) 60Hz:30fps(1280Ă—960), 30fps (1280Ă—720), 30fps(704Ă—480), 30fps (352Ă—240), 30fps (176Ă—120) |
|
Video Compression |
H.264 / MJPEG |
|
Audio Compression |
G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
|
Audio Mode |
OFF/Audio input/Audio output |
|
General |
|
|
Power Supply |
12V DC & PoE (802.3af, class3) |
|
Power Consumption |
Max.: 9W |
|
Working Temperature/Humidity |
-10°C to 50°C (-14°F to 122°F) |
|
Protection Level |
TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
