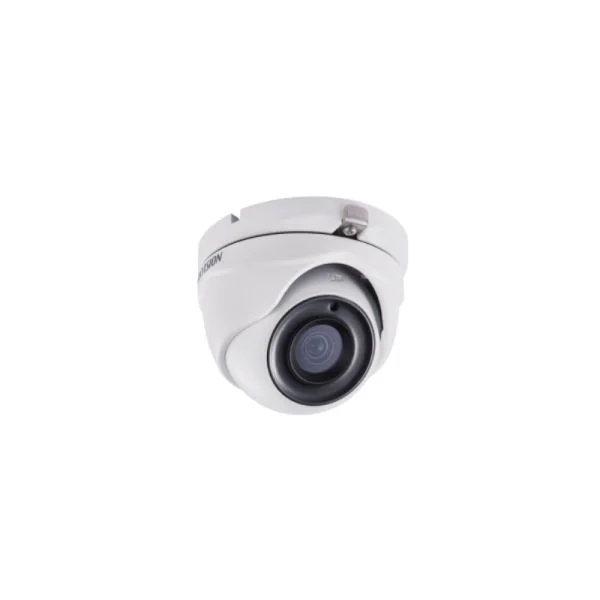

The Hikvision DS-2CE56H0T-ITMF is a high-quality 5 MP Outdoor Turret Camera designed to provide superior surveillance capabilities. With a robust design tailored for outdoor use, this camera ensures excellent image resolution and advanced features, making it a reliable choice for various security applications.
Quick Spec
| Resolution | 5 MP |
| Lens | 2.8 mm |
| IR Range | 20 meters |
| Weatherproof Rating | IP67 |
| Video Frame Rate | 20fps@5MP |
Product Features
- 5 MP high-resolution imaging
- IR night vision up to 20 meters
- 2.8 mm fixed lens for wide-angle monitoring
- IP67 weatherproof rating
- Supports TVI/AHD/CVI/CVBS video output
Product Applications
- Perimeter monitoring in residential complexes
- Outdoor surveillance for commercial buildings
- Security for parking lots and garages
Supported Options
| Mounting Bracket | DS-1273ZJ-130-TRL |
| Power Adapter | DSA-15P-12 |
| Video Balun | DS-1H18 |
Compare to Similar Items
| Model | Differences |
| DS-2CE56D0T-IT3F | 2 MP resolution, longer IR range (40m) |
| DS-2CD2321G0-I | 2 MP resolution, supports PoE |
| DS-2CE76H0T-ITM | 5 MP resolution, different form factor |
Get more information
Check Hikvision DS-2CE56H0T-ITMF price and DS-2CE56H0T-ITMF datasheet, buy Hikvision DS-2CE56H0T-ITMF Turret Camera with best price and fast shipping. Free Live Chat are supported.
For further information about the product and its price, contact us through Live Chat or email at sales@router-switch.com.
Hikvision DS-2CE56H0T-ITMF Specification
DS-2CE56H0T-ITMF Specifications |
|
| Brand | Hikvision |
| Product Name | DS-2CE56H0T-ITMF |
| Camera Type | Outdoor Turret Camera |
| Resolution | 5 MP |
| Image Sensor | 1/2.5″ Progressive Scan CMOS |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30)s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm optional |
| Focus | Fixed |
| Lens Mount | M12 |
| Angle of View | 85.5(2.8 mm), 79(3.6 mm), 51(6 mm) |
| Day/Night | ICR |
| WDR | Digital WDR |
| Sensitivity | High |
| Video Frame Rate | TVI: 5 MP @ 20 fps, 4 MP @ 25 fps, 4 MP @ 30 fps |
| S/N Ratio | More than 62 dB |
| Video Output | 1 HD Analog output |
| Operating Conditions | -40C to 60C |
| Power Supply | 12 VDC 15% |
| Power Consumption | Max. 4.3 W |
| Ingress Protection | IP67 |
