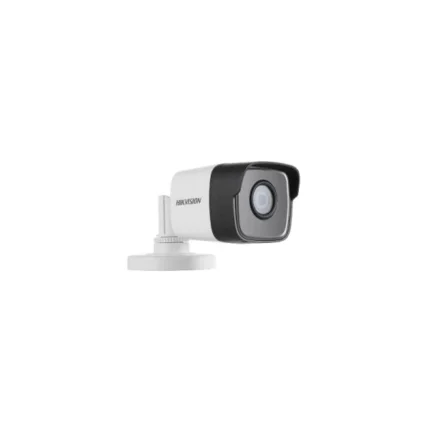

Hikvision DS-2CE16D8T-IT3E is the 2 MP Ultra Low-Light PoC EXIR Bullet Camera.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-2CE16D8T-IT3E |
|
Image Sensor |
2MP CMOS Image Sensor |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1920(H)*1080(V) |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens Mount |
M12 |
|
Adjustment Range |
Pan: 0 to 360, Tilt: 0 to 180, Rotate: 0 to 360 |
|
Day& Night |
IR cut filter |
|
Video Frame Rate |
1080p@25fps/1080p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
Product Details
Hikvision DS-2CE16D8T-IT3E provides these key features:
2 Megapixel high-performance CMOS
Ultra-Low Light
1920 1080 resolution
2.8 mm, 3.6 mm, 6 mm, 8 mm,12mm fixed focal lens
130 dB true WDR, 3D DNR
Smart IR, up to 30/60/80 m IR distance
IP67
Up the Coax(HIKVISION-C)
Power over coaxial
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
DS-2CE16D8T-IT3E |
|
|
Image Sensor |
2MP CMOS Image Sensor |
2MP CMOS Image Sensor |
|
Effective Pixels |
1920(H)*1080(V) |
1920(H)*1080(V) |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
1/25(1/30) s to 1/50,000 s |
|
Adjustment Range |
Pan: -30 to 30, Tilt: 0 to 80, Rotate: -180 to 180 |
Pan: 0 to 360, Tilt: 0 to 180, Rotate: 0 to 360 |
|
Day& Night |
IR cut filter with auto switch |
IR cut filter |
|
Video Frame Rate |
PAL: 1080p@25fps |
1080p@25fps/1080p@30fps |
Get More Information
Do you have any question about the DS-2CE16D8T-IT3E
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-2CE16D8T-IT3E Specification
DS-2CE16D8T-IT3E Specification |
|
|
Camera |
|
|
Image Sensor |
2MP CMOS Image Sensor |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
1920(H)*1080(V) |
|
Shutter Time |
1/25(1/30) s to 1/50,000 s |
|
Lens Mount |
M12 |
|
Adjustment Range |
Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° |
|
Day& Night |
IR cut filter |
|
Video Frame Rate |
1080p@25fps/1080p@30fps |
|
HD Video Output |
1 Analog HD output |
|
Synchronization |
Internal Synchronization |
|
Menu |
|
|
D/N Mode |
Auto / Color / B/W |
|
Auto White Balance |
Auto/MWB |
|
BLC |
Support |
|
AGC |
Support |
|
HLC |
Support |
|
Language |
English |
|
General |
|
|
Operating Conditions |
-40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
Power Supply |
12 VDC±25%/PoC.af |
|
Weather Proof |
IP67 |
|
IR Range |
Up to 60m |
|
Communication |
Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
Dimension |
86.7mm×81.6mm×226mm (3.41″??.23″??.67?? |
