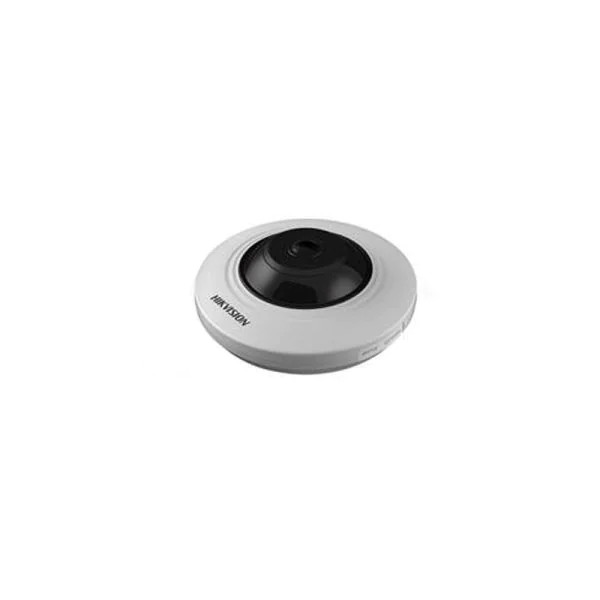

Hikvision DS-2CD2955FWD-IS is the 5 MP Network Fisheye Camera.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-2CD2955FWD-IS |
|
Image Sensor |
1/2.5″ Progressive Scan CMOS |
|
Signal System |
PAL/NTSC |
|
Min. Illumination |
Color: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on |
|
Shutter time |
1/3 s to 1/100,000 s |
|
Slow shutter |
Support |
|
Lens |
1.05 mm @ F2.2, horizontal field of view: 180, vertical field of view: 180 |
|
Lens Mount |
M12 |
|
Day& Night |
IR cut filter with auto switch |
|
Wide Dynamic Range |
120 dB |
|
Digital noise reduction |
3D DNR |
Product Details
Hikvision DS-2CD2955FWD-IS provides these key features:
Up to5 megapixel high resolution
2560 1920 @30fps
H.265, H.265+, H.264+, H.264
Support 14 display modes
FOV: horizontal FOV 180, vertical FOV 180
Dual video streams
DC12V & PoE (802.3af)
Digital Noise Reduction
Support on-board storage, up to 128 GB
Up to 8m IR range
-S: Audio/Alarm IO
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
DS-2CD2955FWD-IS |
|
|
Image Sensor |
1/2.5″ Progressive Scan CMOS |
1/2.5″ Progressive Scan CMOS |
|
Signal System |
PAL/NTSC |
PAL/NTSC |
|
Min. Illumination |
Color: 0.01 lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 lux with IR |
Color: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on |
|
Shutter time |
1/3 s to 1/100,000 s |
1/3 s to 1/100,000 s |
|
Slow shutter |
Support |
Support |
|
Lens |
2.8 mm, horizontal field of view: 102 4 mm, horizontal field of view: 79 6 mm, horizontal field of view: 50 8 mm, horizontal field of view: 40 12 mm, horizontal field of view: 23 |
1.05 mm @ F2.2, horizontal field of view: 180, vertical field of view: 180 |
|
Lens Mount |
M12 |
M12 |
|
Day& Night |
IR cut filter with auto switch |
IR cut filter with auto switch |
|
Wide Dynamic Range |
120 dB |
120 dB |
|
Digital noise reduction |
3D DNR |
3D DNR |
Get More Information
Do you have any question about the DS-2CD2955FWD-IS
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-2CD2955FWD-IS Specification
DS-2CD2955FWD-IS Specification |
|
|
Camera |
|
|
Image Sensor |
1/2.5″ Progressive Scan CMOS |
|
Signal System |
PAL/NTSC |
|
Min. Illumination |
Color: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on |
|
Shutter time |
1/3 s to 1/100,000 s |
|
Slow shutter |
Support |
|
Lens |
1.05 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180° |
|
Lens Mount |
M12 |
|
Day& Night |
IR cut filter with auto switch |
|
Wide Dynamic Range |
120 dB |
|
Digital noise reduction |
3D DNR |
|
Compression Standard |
|
|
Video Compression |
H.265+/H.265/H.264+/H.264/MJPEG |
|
H.264 code profile |
Main Profile/High Profile |
|
Video bit rate |
32Kbps~16Mbps |
|
Audio Compression |
-S: G.711/G.722.1/G.726/MP2L2/PCM |
|
Audio bit rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
|
Dual Stream |
Yes |
|
Image |
|
|
Max. Image Resolution |
2560Ă—1920 |
|
Frame Rate |
50Hz: 25fps (2560 Ă— 1920, 2048 Ă— 1536, 1280 Ă— 960) 60Hz: 30fps (2560 Ă— 1920, 2048 Ă— 1536, 1280 Ă— 960) |
|
Sub Stream |
50Hz: 25fps (352Ă— 288, 704 Ă— 576) 60Hz: 30fps (352 Ă— 240, 704 Ă— 576) |
|
Image Enhancement |
WDR/3D DNR/Backlight Compensation/Defog |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
|
Distortion Correction |
Support |
|
BLC |
Support |
|
ROI |
Support 1 fixed region for each stream |
|
Day/Night Switch |
Auto/Scheduled |
|
Network |
|
|
Network Storage |
Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS) |
|
Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
|
General Function |
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
System Compatibility |
ONVIF (Profile S, Profile G), ISAPI |
|
Interface |
|
|
Audio |
With –S model: 1 input (line in), 1 output |
|
Communication Interface |
1 RJ45 10M / 100M Ethernet interface |
|
Alarm |
with -S model?? alarm input, 1 alarm output (DC24V, 1A or AC110V, 500mA, max.) |
|
On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
|
Smart Feature-set |
|
|
Line Crossing Detection |
Cross a pre-defined virtual line |
|
Intrusion Detection |
Enter and loiter in a pre-defined virtual region |
|
General |
|
|
Operating Conditions |
-10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing) |
|
Power Consumption |
DC 12V ± 25%, 2A, 5W PoE(802.3af 36-57V, class 3), 0.4 ??0.7 A, 6.7W |
|
IR Range |
Up to 8m |
|
Dimensions |
Φ 119.9 × 41.2 mm (Φ 4.72??× 1.62?? |
