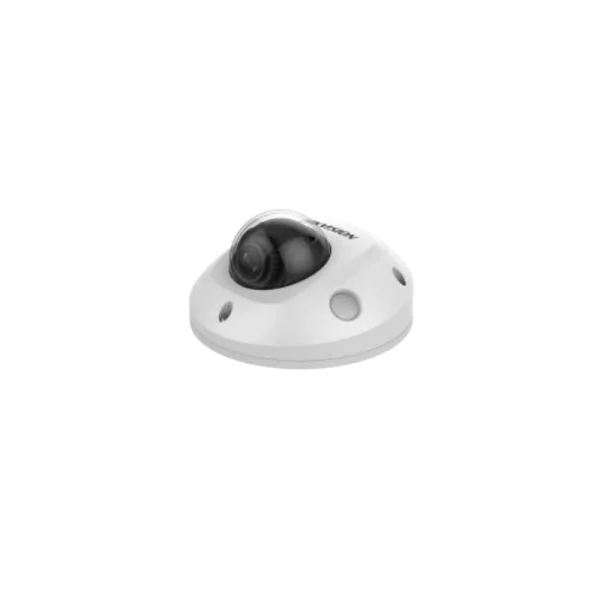

The Hikvision DS-2CD2563G0-I(W)(S) is a robust 6 MP Outdoor WDR Fixed Mini Dome Network Camera, designed for versatile surveillance applications. This camera’s advanced imaging technology ensures clear, high-resolution images even in challenging lighting conditions. Its compact form factor makes it ideal for discreet deployment in various outdoor environments.
Quick Spec
| Resolution | 6 MP |
| Lens Type | Fixed |
| WDR | 120 dB |
| IR Range | Up to 30 meters |
| Connectivity | Wired/Wireless |
Product Features
- High-resolution 6 MP imaging
- Wide Dynamic Range (WDR) of 120 dB
- Efficient H.265+ compression technology
- Weather-resistant design (IP66 rating)
- Integrated IR illumination for night vision up to 30 meters
Product Applications
- City surveillance for monitoring streets and public spaces
- Commercial property surveillance like shopping malls and parking lots
- Residential security for monitoring entry points and yards
Supported Options
| Wall Mount Bracket | DS-1273ZJ-130-TRL |
| Ceiling Mount Bracket | DS-1258ZJ |
| PoE Injector | DS-KAD606-P |
Compare to Similar Items
| Model | Difference |
| DS-2CD2183G0-I | 8 MP resolution |
| DS-2CD2543G0-I(W)(S) | 4 MP resolution |
| DS-2CD2583G0-IZS | Varifocal lens |
Get more information
Check Hikvision DS-2CD2563G0-I(W)(S) price and DS-2CD2563G0-I(W)(S) datasheet, buy Hikvision DS-2CD2563G0-I(W)(S) with best price and fast shipping. Free Live Chat are supported.
For further information about the product and its price, contact us through Live Chat or at sales@router-switch.com.
Hikvision DS-2CD2563G0-I(W)(S) Specification
DS-2CD2563G0-I(W)(S) Specifications |
|
| Brand | Hikvision |
| Model | DS-2CD2563G0-I(W)(S) |
| Resolution | 6 MP |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Lens | 2.8 mm or 4 mm fixed lens |
| Day & Night | IR cut filter with auto switch |
| WDR | 120 dB |
| Min. Illumination | 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR |
| Compression Standard | H.265+/H.265/H.264+/H.264 |
| Max. Resolution | 3072 �� 2048 |
| Frame Rate | Up to 20 fps at 3072 �� 2048 |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Alarm Trigger | Motion detection, Tampering alarm, Network disconnect, IP address conflict, Illegal login |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Communication Interface | 1 RJ45 10M/100M Ethernet port |
| Power Supply | 12 VDC �� 25%, PoE (802.3af, Class 3) |
| Power Consumption | 12 VDC, 0.6 A, MAX 7.5 W; PoE: (802.3af, 36 V to 57 V), 0.3 to 0.2 A, MAX 9W |
| Operating Conditions | -30�� C to 60�� C (-22�� F to 140�� F), Humidity 95% or less (non-condensing) |
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
| Dimensions | �� 110 �� 82.4 mm (�� 4.33″ �� 3.24″) |
| Weight | 580 g (1.28 lb) |
