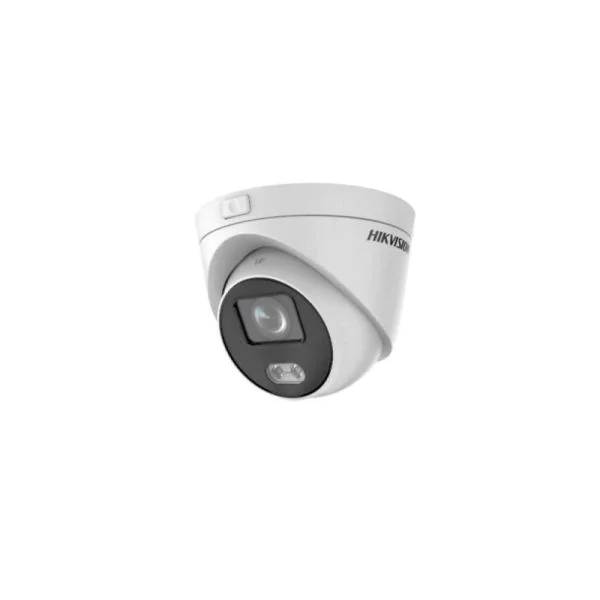

2 MP ColorVu Fixed Turret Network Camera.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
DS-2CD2327G3E-L |
|
Image Sensor |
1/2.8″ Progressive Scan CMOS |
|
Min. Illumination |
0.0035 @ F1.0 (1/30 s, AGC ON), 0.005 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on |
|
Shutter Speed |
1/3 s to 1/100,000 s |
|
Slow Shutter |
Yes |
|
Focal length |
4/6 mm |
|
Focus |
Fixed |
|
Aperture |
F1.0 |
|
FOV |
4 mm, horizontal FOV: 89, vertical FOV: 47, diagonal FOV: 106 6 mm, horizontal FOV: 56, vertical FOV: 30, diagonal FOV: 65 |
Product Details
DS-2CD2327G3E-L provides these features and benefits:
- Max. 1920 1080 @25fps
- 4 mm/6 mm fixed lens
- H.265+, H.264+
- 120dB WDR
- 0.0035 @ F1.0 (1/30 s, AGC ON), 0.005 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on
- 12 VDC & PoE (802.3af, class 3)
- Built-in micro SD/SDHC/SDXC slot, up to 128G
- IP67
- BLC/3D DNR/HLC/ROI
- 24-hour colorful video.
Get More Information
Do you have any question about the DS-2CD2327G3E-L
Contact us now via Live Chat or sales@router-switch.com.
Hikvision DS-2CD2327G3E-L Specification
DS-2CD2327G3E-L Specification |
|
|
Model |
DS-2CD2327G3E-L |
|
Camera |
|
|
Image Sensor |
1/2.8″ Progressive Scan CMOS |
|
Min. Illumination |
0.0035 @ F1.0 (1/30 s, AGC ON), 0.005 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on |
|
Shutter Speed |
1/3 s to 1/100,000 s |
|
Slow Shutter |
Yes |
|
Focal length |
4/6 mm |
|
Focus |
Fixed |
|
Aperture |
F1.0 |
|
FOV |
4 mm, horizontal FOV: 89°, vertical FOV: 47°, diagonal FOV: 106° 6 mm, horizontal FOV: 56°, vertical FOV: 30°, diagonal FOV: 65° |
|
Lens Mount |
M16 |
|
Auto-Iris |
No |
|
DNR |
3D DNR |
|
Wide Dynamic Range |
120dB |
|
3-Axis Adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
|
Compression Standard |
|
|
Video Compression |
Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.264+ |
Main stream supports |
|
H.265 Type |
Main Profile |
|
H.265+ |
Main stream supports |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
Image |
|
|
Max. Resolution |
1920 Ă— 1080 |
|
Main Stream |
50Hz: 25fps (1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720) 60Hz: 30fps (1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720) |
|
Sub Stream |
50Hz: 25fps (640 Ă— 480, 640 Ă— 360, 320 Ă— 240) 60Hz: 30fps (640 Ă— 480, 640 Ă— 360, 320 Ă— 240) |
|
Third stream |
50Hz: 1fps (1280 Ă— 720, 640 Ă— 480, 640 Ă— 360, 352 Ă— 240, 320 Ă— 240) 60Hz: 1fps (1280 Ă— 720, 640 Ă— 480, 640 Ă— 360, 352 Ă— 240, 320 Ă— 240) |
|
Image Enhancement |
BLC/3D DNR/HLC |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
|
ROI (Region of Interest) |
Support 1 fixed region for main stream |
|
Network |
|
|
API |
ONVIF (PROFILE S, PROFILE G), ISAPI |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
|
User/Host |
Up to 32 users 3 levels: Administrator, Operator and User |
|
Network Storage |
Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR |
|
Client |
iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200 |
|
Web Browser |
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
|
Alarm Trigger |
Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
|
Interface |
|
|
On-Board Storage |
Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
|
Reset Button |
Yes |
|
SVC |
H.265 encoding and H.264 encoding support |
|
General |
|
|
Power Supply |
12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
|
Power Consumption |
12 VDC, 0.5 A, max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max: 6.5 W |
|
Camera Dimension |
Φ130 × 103.6 mm (Φ5.1??× 4.1?? |
