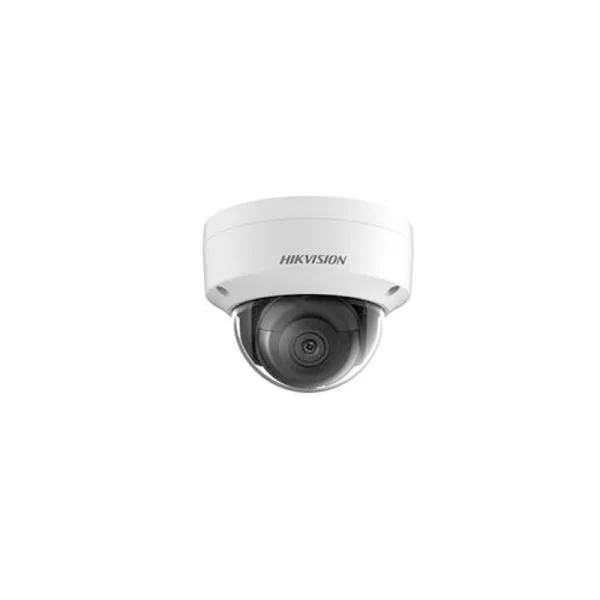

DS-2CD2185FWD-IS, Hikvision DS-2CD Series IP Camera, 8MP 4K Resolution/H.265+/IP67 IK10

DS-2CD2185FWD-IS Specification

Camera

Image Sensor

1/2.5″ Progressive Scan CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.01 lux @(F1.2, AGC ON), 0.028 Lux @(F2.0, AGC ON), 0 lux with IR

Shutter time

1/3 s to 1/100,000 s

Slow shutter

Support

Lens

2.8 mm, horizontal field of view: 102°

4 mm, horizontal field of view: 79°

6 mm, horizontal field of view: 50°

8 mm, horizontal field of view: 40°

12 mm, horizontal field of view: 23°

Lens Mount

M12

Adjustment Range

Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°

Day& Night

IR cut filter with auto switch

Wide Dynamic Range

120 dB

Digital noise reduction

3D DNR

Focus

Fixed

Compression Standard

Video Compression

H.265+/H.265/H.264+/H.264/MJPEG

Video bit rate

32Kbps~16Mbps

Audio Compression

-S: G.711/G.722.1/G.726/MP2L2/PCM

Audio bit rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Triple Streams

Yes


Max. Image Resolution

3840 × 2160

Frame Rate

50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR/ROI/HLC

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

ROI

Support 1 fixed region for main stream and sub stream separately

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Network

Network Storage

microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP,

802.1X, QoS, IPv6

General Function

One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering

System Compatibility

ONVIF (Profile S, Profile G), ISAPI

Interface

Audio

with -S model?? audio input (line in), 1 audio output interface, terminal block

Communication Interface

1 RJ45 10M / 100M Ethernet interface

Alarm

with -S model?? alarm input, 1 alarm output (max. 12 VDC, 30 mA), terminal block

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button

Yes

Audio

Environment Noise Filtering

Support(-S)

Audio I/O

support

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Smart Feature-set

Behavior Analysis

Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection

Line Crossing Detection

Cross a pre-defined virtual line

Intrusion Detection

Enter and loiter in a pre-defined virtual region

Unattended Baggage

Objects left over in the pre-defined region such as the baggage, purse, dangerous materials

Object Removal

Objects removed from the pre-defined region, such as the exhibits on display.

Exception Detections

Scene change detection

Recognition

Face Detection

General

Operating Conditions

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, PoE (802.3af Class3)

Power Consumption

12 VDC ± 25%, 6.2 W

PoE (802.3af, 36 V to 57 V, class 3), 9 W

Impact Protection

IK10

Weather Proof

IP67

IR Range

Up to 30m

Dimensions

Camera: Φ 111 × 82.4 mm (Φ 4.4??× 3.2??
