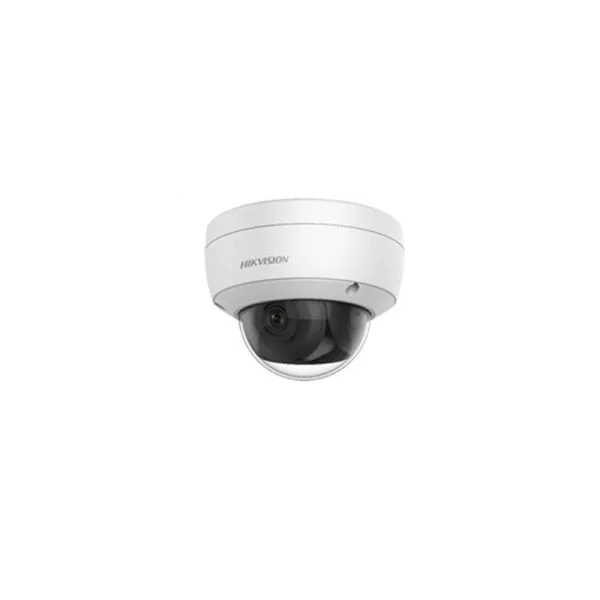

DS-2CD2126G1-IS, Hikvision DS-2CD2000 Series IP Camera, 2MP Max Resolution/H.265 Codec/120dB WDR

DS-2CD2126G1-IS Specification

Model

DS-2CD2126G1-IS

Camera

Image Sensor

1/2.8″ Progressive Scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON)

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

120 dB

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Focus

Fixed

Lens Type

2.8/4/6 mm

FOV

2.8 mm, horizontal FOV: 108°, vertical FOV: 58°, diagonal FOV: 128°,4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 103°,6 mm, horizontal FOV: 52°, vertical FOV: 29°, diagonal FOV: 60°

Aperture

F1.6

Lens Mount

M12

Aperture Type

Fixed

Illuminator

IR Range

Up to 30 m

Wavelength

850 nm

Video

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Video Compression

Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Main Profile/High Profile

H.265 Type

Main Profile

H.264+

No

H.265+

No

Scalable Video Coding (SVC)

H.265 encoding and H.264 encoding support

Region Of Interest (ROI)

Support 1 fixed region for main stream and sub stream separately

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8kHz/16kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

Network

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

User/Host

Up to 32 users,3 levels: Administrator, Operator and User

Network Storage

Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Alarm Trigger

Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error


Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In(-S)

DNR

3D DNR

Image Enhancement

BLC/3D DNR

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Interface

Audio

1 audio input (line in/mic in), 1 audio output, mono sound

Alarm

1 alarm input, 1 alarm output

On-Board Storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

General

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)

Power Consumption And Current

12 VDC, 0.6 A, max: 7 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max: 8.5 W

Camera Dimension

Camera: Φ 121.4 × 92.2 mm (Φ 4.8??× 3.6??span>)
