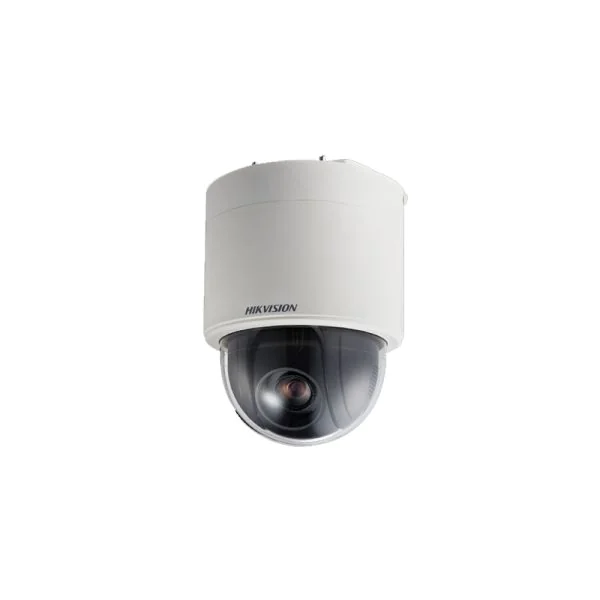

The Hikvision DS-2AE5232T-A3 is a high-performance 5-inch PTZ camera that combines advanced features with robust protection. It offers 32x optical zoom and 16x digital zoom, making it a versatile choice for various surveillance needs. With 120dB WDR and a 4-in-1 output, this camera ensures clear and reliable imaging in diverse lighting conditions. It also supports an in-ceiling installation option and operates on a 24 VAC power supply, providing flexible and reliable usage scenarios.
Quick Spec
| Optical Zoom | 32x |
| Digital Zoom | 16x |
| WDR | 120dB |
| Power Supply | 24 VAC |
| Output Type | 4-in-1 |
Product Features
- 5-inch PTZ camera with robust protection
- 32x optical zoom and 16x digital zoom for detailed surveillance
- 120dB Wide Dynamic Range (WDR) for superior image quality
- 4-in-1 output: TVI, AHD, CVI, and CVBS
- In-ceiling installation option available
Product Applications
- City surveillance where large areas need detailed monitoring
- Shopping malls with diverse lighting conditions
- Arenas and stadiums requiring extensive zoom capabilities
Supported Options
| Wall Mount | DS-1618ZJ |
| Pendant Mount | DS-1619ZJ |
| In-ceiling Mount | DS-1661ZJ |
Compare to Similar Items
| Model | Differences |
| DS-2DE5425IW-AE | 25x optical zoom, supports PoE |
| DS-2AE4215TI-D | 15x optical zoom, lacks 120dB WDR |
| DS-2AE5123TI-A | 23x optical zoom, smaller 4.7″ form factor |
Get more information
Check Hikvision DS-2AE5232T-A3 price and DS-2AE5232T-A3 datasheet, buy Hikvision DS-2AE5232T-A3 with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, contact us through Live Chat or sales@router-switch.com.
Hikvision DS-2AE5232T-A3 Specification
DS-2AE5232T-A3 Specifications |
|
| Brand | Hikvision |
| Model | DS-2AE5232T-A3 |
| PTZ Size | 5″ |
| Pan/Tilt Range | Pan: 360, Tilt: -90to 90 |
| Optical Zoom | 32x |
| Digital Zoom | 16x |
| Wide Dynamic Range | 120dB WDR |
| Output Mode | 4-in-1 (TVI/AHD/CVI/CVBS) |
| In-ceiling Mount Availability | Yes |
| Power Supply | 24 VAC |
| Resolution | Up to 2MP (1920×1080) |
| Minimum Illumination | Color: 0.05 Lux, B/W: 0.01 Lux |
| Day/Night Mode | IR Cut Filter with Auto Switch |
| Lens | 4.8-153mm |
| Backlight Compensation | Yes |
| Noise Reduction | 3D DNR |
| Privacy Masking | Up to 8 Zones |
| Initial Position | Yes |
| Operating Conditions | -30C to 65C (-22F to 149F) |
| Ingress Protection | IP66 |
| Video Compression | H.264 |
