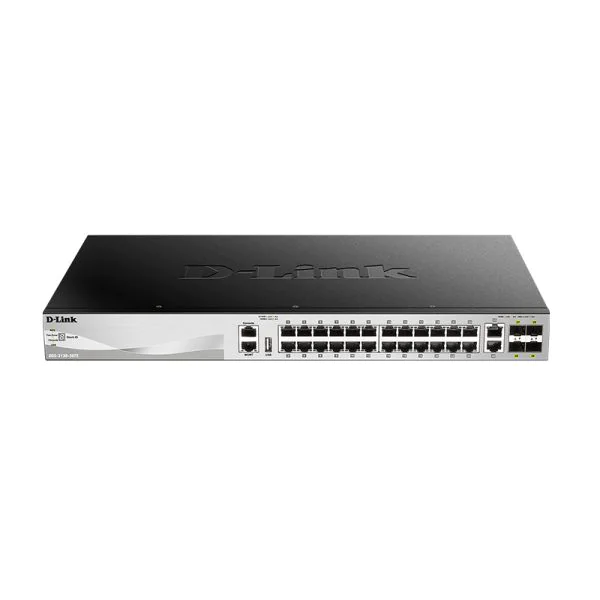

The D-Link DGS-3130-30S is a robust three-layer stackable management switch designed to offer superior network performance and scalability. Featuring 24 Gigabit optical ports, 2 10 Gigabit electrical ports, and 4 10 Gigabit optical ports, this switch is engineered to support demanding network environments. With a switching capacity of 336G/3.36T and a packet forwarding rate of 144Mpps/166Mpps, the DGS-3130-30S is ideal for providing high-speed, high-performance networking solutions. Additionally, it supports advanced functionalities including DHCP server and machine shelf for enhanced network management.
Quick Spec
| Brand | D-Link |
| Product Name | DGS-3130-30S |
| Switching Capacity | 336G/3.36T |
| Packet Forwarding Rate | 144Mpps/166Mpps |
| Number of Ports | 30 (24 Gigabit optical, 2 10 Gigabit electrical, 4 10 Gigabit optical) |
Product Features
- Support for 24 Gigabit optical ports
- Two 10 Gigabit electrical ports and four 10 Gigabit optical ports
- Switching capacity of 336G/3.36T
- Packet forwarding rate up to 144Mpps/166Mpps
- Three-layer stackable management capabilities
Product Applications
- Corporate data centers requiring scalable network management
- High-traffic server farms needing high-speed connectivity
- Advanced enterprise networking deployments with DHCP Server support
Supported Options
| Accessory | Model |
| Power Supply Unit | DPS-500A |
| SFP+ Transceiver | DGS-712 |
| Stacking Cable | DPS-CB150 |
Compare to Similar Items
| Model | Difference |
| DGS-3130-54PC | Offers 48 Gigabit optical ports and 6 10G uplink ports |
| DGS-1510-28X | Less switching capacity at 128G and fewer ports |
| DGS-3630-28S | Supports Layer 3 routing capabilities with a different port arrangement |
Get more information
Contact us through Live Chat or at sales@router-switch.com for further information about the product and its price. Check D-Link DGS-3130-30S price and DGS-3130-30S datasheet, buy D-Link DGS-3130 Switch with best price and fast shipping. Free Live Chat support is available.
D-Link DGS-3130-30S Specification
DGS-3130-30S Specification |
|
| SFP ports | 24 |
| 10GBASE-T ports | 2 |
| 10G SFP+ ports | 4 |
| RJ-45 Console port | 1 |
| RJ-45 Management port | 1 |
| USB 2.0 port | 1 |
| 1000Base-T Interface | 0 |
| 1000Base-T PoE Interface | 0 |
| 1000M SFP Interface | 24 |
| 100M SFP Interface | 0 |
| 10G SFP+ Interface | 4 |
| 10GBase-T Interface | 2 |
| Console Port | 1 |
| USB Port | 1 |
| Switch Capacity | 168 Gbps |
| Max. Packet Forwarding Rate | 125 Mpps |
| Store & Forwarding Forwading | Yes |
| Control Module Redundancy | Yes |
| Dimension | 440(W) x 44(H) x 250(D) mm |
| Operation Temperature | 0 ~ 50 °C |
| Storage Temperature | – 40 ~ 70 °C |
| Operation Humidity | 10% ~ 90% RH |
| Storage Humidity | 5% ~ 90% RH |
| Operating Altitude | 2000m |
| Maximum Power Consumption | 82.4 W |
| Standby Power Consumption | 43.9W |
| Maximum Heat Dissipation | 281.16 BTU/h |
| MTBF | 487,153 hours |
| Power Input | AC??00 ~ 240 V |
| Redundant Power Supply | DPS-500A |
| CPU Speed | 1.25GHz |
| DRAM Size | 1GB DDR4 |
| Flash Memory Size | 256MB NAND |
| Packet Buffer Size | 2MB |
| FAN | Yes |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| Power Saving By Cable Length | Yes |
| Power Saving By LED Shut-Off | Yes |
| Power Saving By Port Shut-Off | Yes |
| Power Saving By Port Standby | Yes |
| Power Saving By System Hibernation | Yes |
| Maximum PoE Budget | 0 |
| Physical Stacking | Yes |
| Physical Stacking Bandwidth | 80G, with stacking port trunking |
| Units Per Physical Stack | 9 |
| D-Link Single IP Management (SIM) | Yes |
| Units Per SIM Stack | 32 |
| MAC Address Table Size | 16,384 (16K) |
| Black Hole MAC Address | Yes |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| 802.1D Spanning Tree (STP) | Yes |
| 802.1w Rapid Spanning Tree (RSTP) | Yes |
| 802.1s Multiple Spanning Tree (MSTP) | Yes |
| BPDU Filtering | Yes |
| Root Restriction | Yes |
| BPDU Restriction | Yes |
| G.8032 ERPS | Yes |
| Multiple ERPS Ring | Yes |
| 802.1AX Link Aggregation | Yes |
| 802.3ad Link Aggregation | Yes |
| Link Aggregation Group Per Device | 32 |
| Max Port Per Link Aggregation Group | 8 |
| Port Mirroring | Yes |
| Flow-based (ACL) mirroring | Yes |
| RSPAN | Yes |
| Jumbo Frame | 9,216 (9K) Bytes |
| Loopback Detection (LBD) | Yes |
| L2 Protocol Tunneling | Yes |
| IGMP Snooping | Yes |
| Max IGMP Snooping Groups | 1,024 |
| IGMP Snooping Fast Leave | Yes |
| IGMP Authentication | Yes |
| IGMP Proxy Reporting | Yes |
| MLD Snooping | Yes |
| MLD Snooping Groups | 1,024 |
| MLD Proxy Reporting | Yes |
| MLD Snooping Fast Leave | Yes |
| 802.1Q VLAN | Yes |
| VLAN Groups | 4094 |
| Port-based VLAN | Yes |
| 802.1v Protocol-based VLAN | Yes |
| MAC-based VLAN | Yes |
| Voice VLAN | Yes |
| Auto Surveillance VLAN | Yes |
| GVRP | Yes |
| Double VLAN (Q in Q) | Yes |
| Selective Q in Q | Yes |
| VLAN Translation | Yes |
| ISM VLAN (Multicast VLAN) | Yes |
| Asymmetric VLAN | Yes |
| Private VLAN | Yes |
| Super VLAN | Yes |
| VLAN trunking | Yes |
| IP Interface | Yes |
| Max Number of IP Interface | 16 |
| Loopback Interface | Yes |
| ARP Entries | 2,048 |
| ARP | Yes |
| Gratuitous ARP | Yes |
| IPv6 Neighbor Discovery (ND) | Yes |
| ND Entries | 1,024 |
| UDP Helper | Yes |
| Routing Table Entry | 1,024 |
| L3 Forwarding Table Entry | 4,096 |
| Equal-Cost Multi-Path Route (ECMP) | Yes |
| Weighted-Cost Multi-Path Route (WCMP) | Yes |
| Default Route | Yes |
| Static Route | Yes |
| Route Preference Setting | Yes |
| Policy-based Route (PBR) | Yes |
| Null Route | Yes |
| Route Redistribution | Yes |
| VRRP | Yes |
| RIPv1 | Yes |
| RIPv2 | Yes |
| RIPng | Yes |
| Number of Queue | 8 |
| Class of Service (CoS) | Yes |
| Two Rate Three Color Marker (trTCM) | Yes |
| Single Rate Three Color Marker (srTCM) | Yes |
| Remark 802.1p priority | Yes |
| Remark ToS/DSCP | Yes |
| Rate Limiting | Yes |
| Time based QoS | Yes |
| Queue Handling | Yes |
| Strict Priority Queue (SPQ) | Yes |
| Weighted Round Robin (WRR) | Yes |
| Weighted Deficit Round Robin (WDRR) | Yes |
| SPQ + WRR | Yes |
| Weighted Random Early Detection (WRED) | Yes |
| Simple Random Early Detection (SRED) | Yes |
| Port-based Bandwidth Control | Yes |
| Queue-based Bandwidth Control | Yes |
| Flow-based bandwidth Control | Yes |
| Max Access Control List (ACL) Entries | Yes |
| MAC Access List | Yes |
| IP Access List | Yes |
| IPv6 Access List | Yes |
| Time based ACL | Yes |
| CPU Interface Filtering | Yes |
| SSH | Yes |
| SSL | Yes |
| Port Security | Yes |
| Broadcast/Multicast/Unicast Storm Control | Yes |
| Traffic Segmentation | Yes |
| DHCP Snooping | Yes |
| IP Source Guard | Yes |
| IP-MAC-Port Binding (IMPB) | Yes |
| IPv6 Snooping | Yes |
| Dynamic ARP Inspection (DAI) | Yes |
| IPv6 Route Advertisement (RA) Guard | Yes |
| DHCPv6 Guard | Yes |
| D-Link Safeguard Engine | Yes |
| IPv6 ND Inspection | Yes |
| L3 Control Packet Filtering | Yes |
| NetBIOS/NetBEUI filtering | Yes |
| DHCP Server Screening | Yes |
| DHCP Client Filtering | Yes |
| BPDU Attack Protection | Yes |
| ARP Spoofing Prevention | Yes |
| DoS Attack Prevention | Yes |
| 802.1X | Yes |
| Host based 802.1X Authentication | Yes |
| Port based 802.1X Authentication | Yes |
| Identity Driven 802.1X Policy Assignment | Yes |
| Web-based Access Control (WAC) | Yes |
| Port based WAC Authentication | Yes |
| Host based WAC Authentication | Yes |
| Identity Driven WAC Policy Assignment | Yes |
| MAC-based Access Control (MAC) | Yes |
| Host based MAC Authentication | Yes |
| Port based MAC Authentication | Yes |
| Compound Authentication | Yes |
| Identity Driven MAC Policy Assignment | Yes |
| Microsoft® NAP Support | Yes |
| Guest VLAN | Yes |
| Authentication for Management Access | Yes |
| Privilege Level for Management Access | Yes |
| RADIUS | Yes |
| RADIUS Accounting | Yes |
| TACACS+ | Yes |
| Authentication Database Failover | Yes |
| Trusted Host | Yes |
| Cable Diagnostics | Yes |
| 802.3ah Ethernet Link OAM | Yes |
| D-link Unidirectional Link Detection (DULD) | Yes |
| Dying Gasp | Yes |
| 802.1ag Connectivity Fault Management (CFM) | Yes |
| Y.1731 OAM | Yes |
| Optical Transceiver Digital Diagnostic Monitoring (DDM) | Yes |
| Network Time Protocol (NTP) | Yes |
| Simple Network Time Protocol (SNTP) | Yes |
| Web-based GUI | Yes |
| Telnet Server | Yes |
| Command Line Interface (CLI) | Yes |
| Telnet Client | Yes |
| SNMP | Yes |
| SNMP Trap | Yes |
| TFTP Client | Yes |
| Secured FTP (SFTP) Server | Yes |
| ZModem | Yes |
| Command Logging | Yes |
| System Log | Yes |
| SMTP | Yes |
| RMONv1 | Yes |
| LLDP | Yes |
| RMONv2 | Yes |
| LLDP-MED | Yes |
| D-Link Discover Protocol (DDP) | Yes |
| DHCP/BootP Client | Yes |
| DHCP Auto-configuration | Yes |
| DHCP relay | Yes |
| DHCP Server | Yes |
| Flash file system | Yes |
| PPPoE Circuit-ID Tag Insertion | Yes |
| Multiple Images | Yes |
| Dual Configurations | Yes |
| Dual Images | Yes |
| Editable Login Banner | Yes |
| Multiple Configurations | Yes |
| Editable System Prompt | Yes |
| DNS Client | Yes |
| Password Recovery | Yes |
| Debug Command | Yes |
| Password Encryption | Yes |
| MTU Setting | Yes |
| Ping | Yes |
| Traceroute | Yes |
