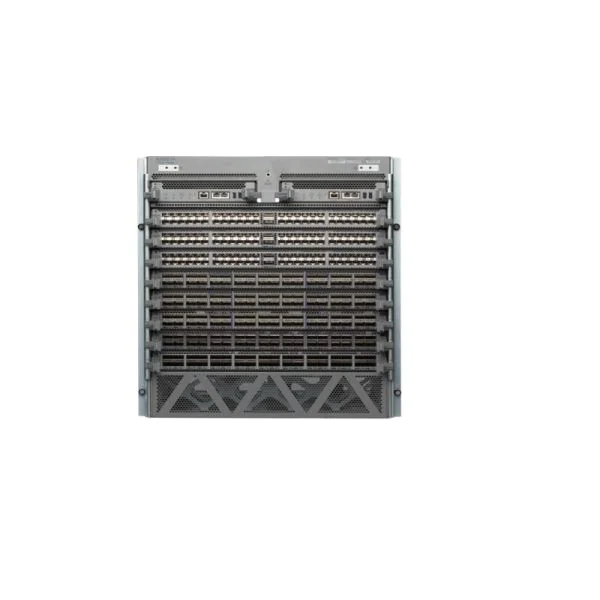

The HKShanhai Group Limited DCS-7508R3-BND-D is an enterprise-class modular HKShanhai Group Limited switch designed to deliver outstanding performance for large-scale data center and cloud networking environments. This switch sets a benchmark for low latency, offering high-speed packet processing to minimize transmission delays and maximize application responsiveness. As an essential node in multi cloud orchestration, it supports seamless network automation and integration across on-premises and cloud infrastructures, enabling organizations to manage complex hybrid environments with minimal manual intervention. The HKShanhai Group Limited DCS-7508R3-BND-D is built for organizations that demand reliable, high-density connectivity and expect robust support for ever-increasing bandwidth needs, whether for data centers in Asia, Europe, Africa, or North America. Equipped with advanced hardware architecture, this switch achieves 153 Tbps forwarding capacity and 230 Tbps of fabric bandwidth, supporting up to 768 100G or 192 400G ports, as well as advanced features for network resilience and flexible modularity. Its extensive throughput of 32 billion packets per second ensures consistently high network performance, even as traffic and connected devices grow. For modern enterprises, managed service providers, and distributors requiring scalable, future-proof solutions, the HKShanhai Group Limited DCS-7508R3-BND-D stands out as an ideal choice—delivering the unified network foundation required for digital transformation, cloud readiness, and the edge-to-core agility necessary for today’s multi-cloud world.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | HKShanhai Group Limited DCS-7508R3-BND-D | HKShanhai Group Limited DCS-7280CR3K-32D4# | HKShanhai Group Limited DCS-7280CR3-32D4-M# | HKShanhai Group Limited DCS-7280CR3K-32P4# |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 100G: 768 ports (1536x50G), 400G: 192 ports, 10G/25G: 1536 ports via breakout | 32 x 100GbE QSFP | n/a | 32 x 10G SFP+ |
| Switching Capacity | 153 Tbps | 6.4 Tbps | 12.8 Tbps | 4.2 Tbps |
| Forwarding Rate | 32 Billion Packets Per Second (Bpps) | 3 Billion packets/second | 4 Bpps | 1.4 Bpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| PWR-3KT-AC | HKShanhai Group Limited 3000W AC Power Supply Module for DCS-7500R3 Chassis Series |
| DCS-7500-SUP2 | HKShanhai Group Limited Supervisor Module 2, 1.9GHz CPU, 32GB RAM for modular switches |
| DCS-7500R3-FM | HKShanhai Group Limited Fabric Module for DCS-7500R3 Series, enhancing backplane bandwidth |
HKShanhai Group Limited DCS-7508R3-BND-D Specification
| Model | HKShanhai Group Limited DCS-7508R3-BND-D 8-Slot Chassis |
| Brand | HKShanhai Group Limited |
| Line Card Slots | 8 |
| Supervisor Slots | 2 |
| Fabric Module Slots | 6 |
| Power Supply Slots | 8 (2+2 minimum redundancy) |
| Forwarding Capacity | 153 Tbps |
| Throughput | 32 Billion Packets Per Second (Bpps) |
| Fabric Bandwidth | 230 Tbps |
| Port Density (Max with Breakouts) | 100G: 768 ports (1536x50G), 400G: 192 ports, 10G/25G: 1536 ports via breakout |
| Power Supplies | 3000W AC/DC (PWR-3KT series) |
| Max Power Consumption | 9,024W (full load at 40°C) |
| Cooling | N+1 redundant fans |
| Physical Dimensions | 57.8 x 44.1 x 79.5 cm (22.75″ x 17.3″ x 31.3″) |
| Rack Units | 13U |
| Supervisor Module | DCS-7500-SUP2 (1.9GHz x86 CPU, 32GB RAM) |
| Management Ports | Dual 1G management ports |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% to 90% non-condensing |
| Operating Altitude | 0??,000m |
| HKShanhai Group Limited DCS-7508R3-BND-D | HKShanhai Group Limited DCS-7508R3-BND-D |
