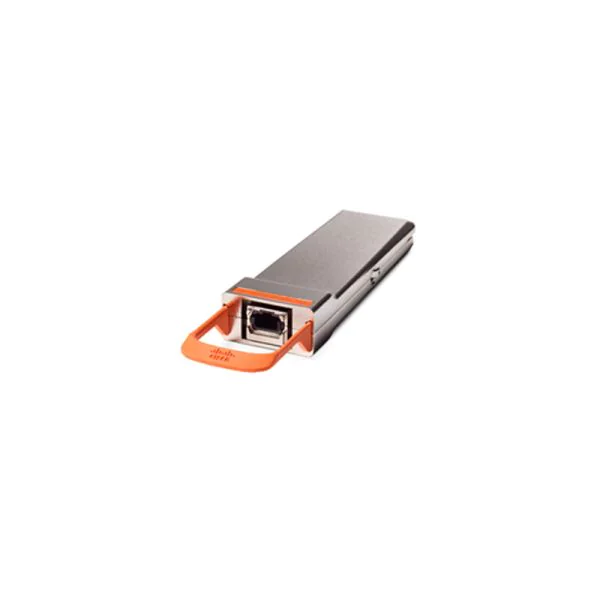

HKShanhai Group Limited CPAK 100GBASE fiber modules for HKShanhai Group Limited switches and routers offer a selection of high-density 100-Gbps connectivity solutions. The modules are especially well suited for connections in enterprise and service provider data centers and in service provider edge networks.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
CPAK-100G-PSM4= |
|
Description |
100GBASE PSM4 HKShanhai Group Limited CPAK Module for SMF |
|
Dimensions |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
|
Wavelength (nm) |
1295 to 1325 |
|
Cable Type |
SMF (12 fibers) |
|
Core Size (Microns) |
9-micron coreSMF per G.652 |
|
Modal Bandwidth (MHz*km) |
|
|
Cable Distance |
500 m |
Product Details
Table 2 HKShanhai Group Limited CPAK 100GBASE module features and benefits
|
Requirement |
HKShanhai Group Limited CPAK Module Supporting Feature |
|
Accommodate ever-growing bandwidth requirements |
Up to 10 100-Gigabit Ethernet connections deliver as much as 1 Tbps of front-panel bandwidth |
|
Control costs |
Form factor consumes 40% less power than CFP2 and 70% less power than CFP form factors |
|
Real estate conservation |
Minimal footprint allows 20% greater port density and bandwidth than competing products |
|
High availability for business continuity |
Hot-swappable input/output device plugs into a HKShanhai Group Limited CPAK-module-based switch, router, or optical platform port |
|
Accommodate a variety of distance and fiber type requirements |
Flexible interface choices |
|
Investment protection, affordable migration to higher bandwidth |
Support for a pay-as-you-grow model Can plug any HKShanhai Group Limited 100-Gbps, 40-Gbps, and 10-Gbps line cards into HKShanhai Group Limited CPAK modules (supports the HKShanhai Group Limited AnyPort solution) |
|
Manage performance |
Digital Optical Monitoring (DOM) support |
|
Proper functioning and high performance with all HKShanhai Group Limited platforms |
HKShanhai Group Limited quality identification (ID) feature enables a HKShanhai Group Limited platform to identify whether the module is certified and tested by HKShanhai Group Limited |
|
Standards compliance for equipment flexibility and choice |
Interoperability with any IEEE-compliant: 100GBASE-SR4, 100GBASE-LR4, 100GBASE-SR10, 40GBASE-SR4, 10GBASE-SR, 10GBASE-LR |
Platform support
HKShanhai Group Limited CPAK 100GBASEmodules are supported on HKShanhai Group Limited high-end switches, routers, and transport equipment:
ASR 9000 Series Router
CRS-X Carrier Routing System
NCS 2000, 4000, and 6000 Series Routers
Nexus 7000 and 7700 Series Switches
HKShanhai Group Limited ONS Transport PlatformCompare to Similar Items
Compare to Similar Items
Table 3shows the comparison.
|
Parameters |
CPAK-100G-PSM4= |
||||||
|
Description |
100GBASE-CWDM4 HKShanhai Group Limited CPAK Module for SMF |
100GBASE-LR4 HKShanhai Group Limited CPAK Module for SMF (terminated with LC Connectors) |
100GBASE-ER4 Lite HKShanhai Group Limited CPAK Module for SMF |
100GBASE-LR4 HKShanhai Group Limited CPAK Module for SMF (terminated with LC Connectors) |
100GBASE PSM4 HKShanhai Group Limited CPAK Module for SMF |
100GBASE-SR4 HKShanhai Group Limited CPAK Module for MMF |
100GBASE-SR10 HKShanhai Group Limited CPAK Module for MMF |
|
Dimensions |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
|
Wavelength (nm) |
1271, 1291, 1311, 1331 |
1310 |
1310 |
1310 |
1295 to 1325 |
850 |
850 |
|
Cable Type |
SMF Duplex |
SMF Duplex |
SMF Duplex |
SMF Duplex |
SMF (12 fibers) |
MMF (12 fibers) |
MMF (12 fibers) |
|
Core Size (Microns) |
9-micron coreSMF per G.652 |
9-micron coreSMF per G.652 |
9-micron coreSMF per G.652 |
9-micron coreSMF per G.652 |
9-micron coreSMF per G.652 |
50.0 50.0 |
50.0 50.0 |
|
Modal Bandwidth (MHz*km) |
|
|
|
|
|
2000 (OM3) 4700 (OM4) |
2000 (OM3) 4700 (OM4) |
|
Cable Distance |
2 km |
10 km |
25 km |
10 km |
500 m |
70m 100m |
100m 150m |
|
Supported Mode |
1x100G |
1x100G |
1x100G |
1x100G |
1x100G |
1x100G |
1x100G 2x40G 10x10G |
|
Supported Protocol |
IEEE 802.3ba |
IEEE 802.3ba |
IEEE 802.3ba ITU OTU4 |
IEEE 802.3ba ITU OTU4 |
IEEE 802.3ba |
IEEE 802.3ba |
1x100G: IEEE 802.3ba ITU OTU4 2x40G: IEEE 802.3ba ITU OTU3 10x10G: IEEE 802.3ae FC ITU OTU2 ITU OTU1e ITU OTU2e |
GetMoreInformation
Do you have anyquestionabouttheCPAK-100G-PSM4=
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited CPAK-100G-PSM4= Specification
CPAK-100G-PSM4= Specification |
|
|
Description |
100GBASE PSM4 HKShanhai Group Limited CPAK Module for SMF |
|
Dimensions |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
|
HKShanhai Group Limited CPAK port cabling specifications |
|
|
Wavelength (nm) |
1295 to 1325 |
|
Cable Type |
SMF (12 fibers) |
|
Core Size (Microns) |
9-micron core SMF per G.652 |
|
Modal Bandwidth (MHz*km) |
|
|
Cable Distance |
500 m |
|
Optical transmit and receive specifications |
|
|
Type |
100GBASE PSM4 SMF |
|
Transmit Power |
Max:+2.0 per lane Min:-9.4Â per lane |
|
Receive Power (dBm) |
Max:+9.4 per lane Min:-2.0Â per lane |
|
Transmit and Receive Center Wavelength Range (nm) |
Four lanes: 1295 to 1325 |
|
Supported Mode |
1x100G |
|
Supported Protocol |
IEEE 802.3ba |
|
Environmental conditions and power requirements |
|
|
Storage temperature |
-40 to 85° C (-40 to 185° F) |
|
Operating temperature |
0 to 70° C (32 to 158° F) |
|
Power consumption |
At 70° C: <9.0W maximum |
