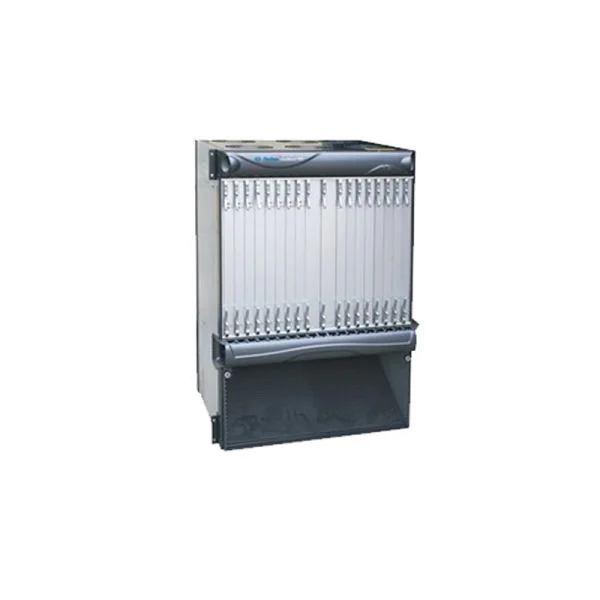

Introducing the FiberHome CITRANS 550F O2500 V16.2, an advanced STM16 light path solution designed for high-capacity optical transport systems. This robust device offers superior performance and reliability, tailored for complex network setups requiring substantial data transfer rates and enhanced connectivity. It is specifically designed to support evolving telecom and data communication needs.
Quick Spec
| Brand | FiberHome |
| Model | CITRANS 550F O2500 V16.2 |
| Interface | LC |
| Light Path | STM16 |
| Version | V16.2 |
Product Features
- High-speed transmission up to 2.5 Gbps.
- Enhanced data integrity and reliability.
- Support for LC interface to ensure seamless connectivity.
- Optimized for STM16 light path usage.
- Advanced fault detection mechanisms for network stability.
Product Applications
- Telecommunication networks requiring high-capacity data transport.
- Data center interconnects for large-scale data transfers.
- Enterprise networks demanding reliable and fast optical connections.
Supported Options
| Accessory | Model |
| Carrier Grade Power Supply | PSU-CG550 |
| Fiber Optic Patch Cable | FO-PC550 |
| Network Management Card | NMC-550F |
Compare to Similar Items
| Model | Differences |
| CITRANS 550F O2000 V15.1 | Lower transmission speed, older version. |
| CITRANS 560F O3000 V17.0 | Higher transmission speed, newer version. |
| CITRANS 540E O1500 V15.2 | Different light path interface, previous version. |
Get more information
For further details about the FiberHome CITRANS 550F O2500 V16.2 and pricing, please contact us through Live Chat or email us at sales@router-switch.com.
FiberHome CITRANS 550F O2500 V16.2 Specification
FiberHome CITRANS 550F O2500 V16.2 Specifications |
|
| Brand | FiberHome |
| Model | FiberHome CITRANS 550F O2500 V16.2 |
| Type | STM16 light path |
| Software Version | V16.2 |
| Connector Type | LC |
| Max Transmission Distance | Up to 2500 km |
| Transmission Rate | 2.5 Gbps |
| Network Topology | Ring, Mesh |
| Protocols Supported | SDH, SONET |
| Power Supply | -48V DC |
| Power Consumption | 150W |
| Operating Temperature | -5C to 55C |
| Storage Temperature | -40C to 70C |
| Relative Humidity | 5% to 95% |
| Dimensions (HxWxD) | 44 mm x 483 mm x 300 mm |
| Fiber Type | Single-mode |
| Management | SNMP, Web-based |
| Diagnostic Tools | Optical Time-Domain Reflectometer (OTDR), Loopback |
| Protection Mechanism | MSP (Multiplex Section Protection) |
| Alarming | Yes, with detailed logs |
| Compliance | ITU-T G.707, G.783, G.957 |
