CE5850-48T4S2Q-EI-B is one of the HKShanhai Group Limited HKShanhai Group Limited CE5850-48T4S2Q-EI switches. HKShanhai Group Limited CE5850-48T4S2Q-EI provides 48 * GE line-speed ports plus 4 * 10 GE and 2 * 40G upstream ports for stacking up to 16 switches. 10 GE and 40G ports enable creation of a non-blocking stack that can extend across geographical distances between data centers. Using the HKShanhai Group Limited VRP8 software platform, CE5800 switches support Transparent Interconnection of Lots of Links (TRILL) and have a high stacking capability (up to 16-member switches in a stack system). In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers. CE5800 switches provide high-density GE access to help enterprises build a scalable data center network platform for cloud computing. They can also be used as aggregation or access switches for enterprise campus networks.
Quick Specs

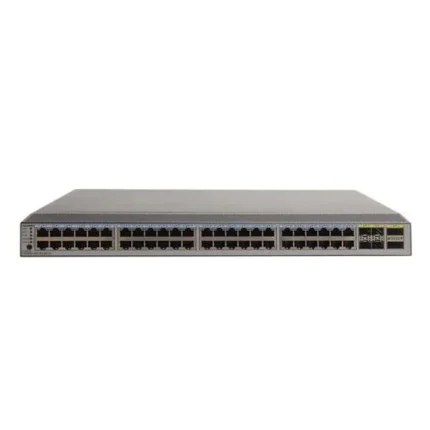

Figure 1 shows the appearance of CE5850-48T4S2Q-EI-B.
Table 1 shows the Quick Specs.
|
Product Code |
CE5850-48T4S2Q-EI-B |
|
Part Number |
02350EXY |
|
Software Version |
V100R001C00 and later |
|
Base-T Ports |
48 |
|
SFP+ Ports |
4 |
|
QSFP+ Ports |
2 |
|
Switching Capacity |
336 Gbit/s |
|
Forwarding Rate |
252 Mpps |
|
Rated voltage range (with Power module) |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
|
Maximum power consumption |
131W |
|
Airflow |
Front-to-back or back-to-front |
|
Dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm |
|
Weight (fully loaded) |
8.8 kg (19.4 lb) |
Product Details
Figure 2 shows the CE5850-48T4S2Q-EI-B rear view (port side).
Note:
|
??/p> |
Forty-eight 10/100/1000BASE-T Ethernet electrical ports |
|
??/p> |
Four 10GE SFP+ Ethernet optical ports |
|
??/p> |
Two 40GE QSFP+ Ethernet optical ports |
Figure 3 shows the CE5850-48T4S2Q-EI-B front view (power supply side).
Note:
|
??/p> |
Power supply slot 1 |
|
??/p> |
Fan slot 1 |
|
??/p> |
Console port |
|
??/p> |
ETH management port |
|
??/p> |
Bar code label |
|
??/p> |
USB port |
|
??/p> |
Fan slot 2 |
|
??/p> |
Power supply slot 2 |
The Modules
Table 2 shows the recommended elements for the CE5850-48T4S2Q-EI-B.
|
Model |
Description |
|
GE-SFP Optical Transceiver |
|
|
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
|
|
10G-SFP+ Optical Transceiver |
|
|
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
|
|
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
|
|
Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) |
|
|
GE Copper Transceiver |
|
|
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
|
|
FAN-40EA |
|
|
 |
FAN-40EA-F fan module (front-to-back, air intake on panel) |
|
 |
FAN-40EA-B fan module (back-to-front, air exhaust on panel) |
Compare to Similar Items
Table 3 shows the comparison of CE5850-48T4S2Q-EI-B and CE5850-48T4S2Q-HI-B.
|
Product Code |
CE5850-48T4S2Q-EI-B |
|
|
Part Number |
02350EXY |
02350EYD |
|
Software Version |
V100R001C00 and later |
V100R003C00 and later |
|
Base-T Ports |
48 |
48 |
|
SFP+ Ports |
4 |
4 |
|
QSFP+ Ports |
2 |
2 |
|
Switching Capacity |
336 Gbit/s |
336 Gbit/s |
|
Forwarding Rate |
252 Mpps |
252 Mpps |
|
Maximum power consumption |
131W |
131W |
Get more information
Do you have any question about the CE5850-48T4S2Q-EI-B
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited CE5850-48T4S2Q-EI-B Specification
CE5850-48T4S2Q-EI-B Specification |
|
|
Base-T Ports |
 48 |
|
SFP+ Ports |
 4 |
|
QSFP+ Ports |
 2 |
|
Switching Capacity |
336 Gbit/s |
|
Forwarding Rates |
252 Mpps |
|
Airflow Design |
Front-to-back or back-to-front |
|
Device Virtualization |
iStack |
|
Super Virtual Fabric (SVF)Â |
|
|
Network Virtualization |
M-LAG |
|
TRILL (CE5855 & CE5850) |
|
|
VM Awareness |
Agile Controller |
|
SDN |
Open Programmability System (OPS) |
|
Traffic Analysis |
NetStream |
|
sFlow |
|
|
VLAN |
Adding access, trunk, and hybrid interfaces to VLANs |
|
Default VLAN |
|
|
QinQ |
|
|
MUX VLAN |
|
|
GVRP |
|
|
ACL |
ingress: 4.5k egress: 1k |
|
MAC Address Table |
maximum: 128k |
|
Dynamic learning and aging of MAC addresses |
|
|
Static, dynamic, and black hole MAC address entries |
|
|
Packet filtering based on source MAC addresses |
|
|
MAC address limiting based on ports and VLANs |
|
|
ARP (maximum) |
16k |
|
IPv4 FIB (maximum) |
12k |
|
IP Routing |
IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
|
IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+Â (not supported by CE5855) |
|
|
IPv6 FIB (maximum) |
6k |
|
IPv6 |
IPv6 Neighbor Discovery (ND)Â (not supported by CE5855) |
|
Path MTU Discovery (PMTU)Â (not supported by CE5855) |
|
|
TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6 |
|
|
Multicast FIB (maximum) |
2k |
|
Multicast |
IGMP, PIM-SM, PIM-DM, MSDP, and MBGP |
|
IGMP snooping |
|
|
IGMP proxy |
|
|
Fast leave of multicast member interfaces |
|
|
Multicast traffic suppression |
|
|
Multicast VLAN |
|
|
Reliability |
LACP |
|
STP, RSTP, VBST, MSTP |
|
|
BPDU protection, root protection, and loop protection |
|
|
Smart Link and multi-instance |
|
|
DLDP |
|
|
ERPS (G.8032) |
|
|
VRRP, VRRP load balancing, and BFD for VRRP |
|
|
BFD for BGP/IS-IS/OSPF/Static route |
|
|
QoS |
Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
|
Actions of ACL, CAR, re-marking, and scheduling |
|
|
Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR |
|
|
Congestion avoidance mechanisms, including WRED and tail drop |
|
|
Traffic shaping |
|
|
Configuration and Maintenance |
Console, Telnet, and SSH terminals |
|
Network management protocols, such as SNMPv1/v2c/v3 |
|
|
File upload and download through FTP and TFTP |
|
|
BootROM upgrade and remote upgrade |
|
|
802.3az Energy Efficient Ethernet (EEE) |
|
|
Hot patches |
|
|
User operation logs |
|
|
Zero-Touch Provisioning (ZTP) |
|
|
Security and Management |
802.1x authentication |
|
Command line authority control based on user levels, preventing unauthorized users from using commands |
|
|
DoS, ARP, and ICMP attack defenses |
|
|
Port isolation, port security, and sticky MAC |
|
|
Binding of the IP address, MAC address, interface number, and VLAN ID |
|
|
Authentication methods, including AAA, RADIUS, and HWTACACS |
|
|
Remote Network Monitoring (RMON) |
|
|
Dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm |
|
Weight (fully loaded) |
8.8 kg (19.4 lb) |
|
Environmental Parameters |
Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) |
|
Storage temperature: -40°C to 70°C (-40°F to 158°F) |
|
|
Relative humidity: 5%Â to 95%, non-condensing |
|
|
Operating Voltage |
AC: 90V to 264V |
|
DC: -38.4V to -72V |
|
|
Maximum Power Consumption |
133W |
