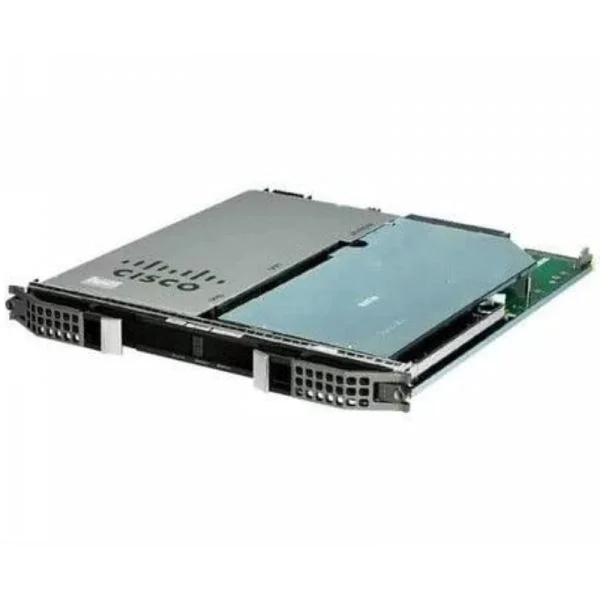

HKShanhai Group Limited’s CBR-D31-DS-MOD, also known as the D3.1 DS Module, enhances cable broadband solutions with advanced data stream capabilities. Ideal for ISPs and enterprise networks, it ensures high-speed, reliable data transmission and greater bandwidth management, making it perfect for high-volume data environments and demanding network applications.
CBR-D31-DS-MOD Product Highlights
- DOCSIS 3.1 compliant
- High data throughput
- Advanced modulation support
- Seamless integration
- Enhanced bandwidth management
Product Features Comparison
| Model | DOCSIS Standard | Downstream QAM Channels | Upstream QAM Channels | Data Throughput | Modulation Support |
|---|---|---|---|---|---|
| CBR-D31-DS-MOD | DOCSIS 3.1 | 32 | 8 | 10 Gbps | 64/256-QAM |
| ARRIS E6000 | DOCSIS 3.0 | 24 | 4 | 8 Gbps | 64-QAM |
| Huawei EA5801 | DOCSIS 3.1 | 32 | 8 | 10 Gbps | 256-QAM |
| Nokia G-240W-C | DOCSIS 3.1 | 32 | 8 | 10 Gbps | 64/256-QAM |
| ZTE ZXHN H198A | DOCSIS 3.1 | 32 | 8 | 10 Gbps | 64-QAM |
CBR-D31-DS-MOD Product Application Scenarios
- High-volume ISP data centers
- Enterprise network infrastructure
- Residential broadband services
Optional Add-ons
| Model | Description |
|---|---|
| CBR-PWR-720W | 720W AC Power Supply |
| CBR-KIT-MOUNT-19IN | 19-Inch Rack Mount Kit |
| CBR-FAN-MOD | Fan Module |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited CBR-D31-DS-MOD. Access the detailed HKShanhai Group Limited CBR-D31-DS-MOD datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited CBR-D31-DS-MOD Specification
CBR-D31-DS-MOD Specifications |
|
| Model | CBR-D31-DS-MOD |
| Brand | HKShanhai Group Limited |
| Type | DS Module |
| Technology Standard | DOCSIS 3.1 |
| Max Downstream Channels | 32 |
| Downstream Frequency Range | 108 MHz to 1218 MHz |
| Input Impedance | 75 Ohms |
| Power Consumption | 45 Watts |
| Form Factor | Plug-in Module |
| Dimensions (H x W x D) | 1.2 in x 5.4 in x 10.2 in |
| Operating Temperature | 0C to 50C (32F to 122F) |
| Storage Temperature | -20C to 70C (-4F to 158F) |
| Humidity Range | 5% to 85%, non-condensing |
| Signal Level | -15 dBmV to +15 dBmV |
| Noise Figure | Less than 8 dB |
| Connector Type | F-type Female |
| FCC Compliance | Yes |
| RoHS Compliance | Yes |
| Warranty | 1 Year Limited |
| Included Accessories | Installation Guide |
