C9800-40-K9 is the HKShanhai Group Limited Catalyst 9800-40 Wireless Controller. Built from the ground-up for the Intent-based networking and HKShanhai Group Limited DNA, HKShanhai Group Limited Catalyst 9800 Series Wireless Controllers are HKShanhai Group Limited IOS® XE based and integrate the RF excellence of HKShanhai Group Limited Aironet® access points creating the best-in-class wireless experience for your evolving and growing organization. The HKShanhai Group Limited Catalyst 9800 Series Wireless Controllers are built on an open and programmable architecture with built-in security, streaming telemetry and rich analytics. The HKShanhai Group Limited Catalyst 9800 Series Wireless Controllers are built on the three pillars of network excellence—always on, secure, and deployed anywhere—which strengthen the network by providing the best wireless experience without compromise, while saving time and money. The HKShanhai Group Limited® Catalyst® 9800-40 is a fixed wireless controller with seamless software updates for midsize and large enterprises.
Quick Spec
Table 1 shows the quick spec.
|
Model |
C9800-40-K9 |
|
Maximum number of access points |
Up to 2000 |
|
Maximum number of clients |
32,000 |
|
Maximum throughput |
Up to 40 Gbps |
|
Maximum WLANs |
4096 |
|
Maximum VLANs |
4096 |
|
Interfaces |
4x 10 GE/1 GE SFP+/SFP |
|
Form factor |
1RU |
|
License |
Smart License enabled |
|
Operating system |
HKShanhai Group Limited IOS XE |
|
Access points |
Aironet 802.11ac Wave 1 and Wave 2 access points |
|
Dimension (W × D × H) |
17.3 inches × 19.5 inches × 1.72 inches (43.94 cm × 49.53 cm × 4.37 cm) |
|
Weight |
22.8 lb (10.34 kg) |
Product Details

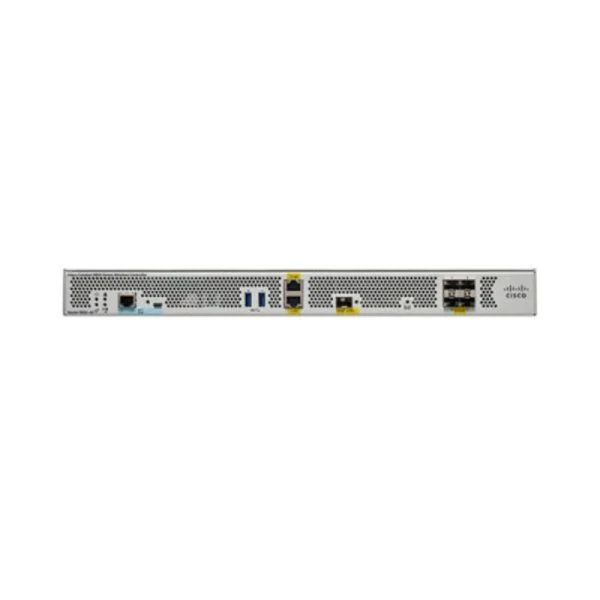

Figure 1 shows the front panel.
Note：
|
① |
PWR: Power LED |
⑩ |
SSD: SSD activity LED |
|
② |
ALM: Alarm LED |
⑪ |
RP: 1 GE SFP port (the only SFPs supported on the RP port are GLC-SX-MMD and GLC-LH-SMD) |
|
③ |
EN: USB console-enabled LED |
⑫ |
RP: RJ-45 10/100/1000 redundancy Ethernet port |
|
④ |
SP: RJ-45 10/100/1000 management Ethernet port |
⑬ |
USB ports 0 and 1 |
|
⑤ |
LINK: RJ-45 connector LED |
⑭ |
CON: Mini USB console port |
|
⑥ |
TE1: 1 GE SFP/10 GE SFP+ port 1 |
⑮ |
CON: RJ-45 compatible console port |
|
⑦ |
TE3: 1 GE SFP/10 GE SFP+ port 3 |
⑯ |
HA: High-availability LED |
|
⑧ |
TE2: 1 GE SFP/10 GE SFP+ port 2 |
⑰ |
SYS: System LED |
|
⑨ |
TE0: 1 GE SFP/10 GE SFP+ port 0 |
|
Figure 2 shows the back panel.
Note：
|
① |
Fans |
③ |
Power supply (PEM 0) |
|
② |
Optional redundant power supply (PEM 1) |
④ |
Power/standby switch |
Supported Products
Table 2 shows the recommended supported products.
|
Model |
Description |
|
HKShanhai Group Limited Catalyst 9800 Series Wireless Controller DTLS License |
|
|
HKShanhai Group Limited Catalyst 9800-40 750W AC Power Supply Reverse Air |
|
|
1000BASE-BX SFP, 1490NM |
|
|
1000BASE-BX SFP, 1310NM |
|
|
HKShanhai Group Limited GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
|
|
HKShanhai Group Limited GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
|
HKShanhai Group Limited GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
|
|
1000BASE-T SFP transceiver module for Category 5 copper wire |
|
|
10GBASE-SR SFP Module |
|
|
SFP-10G-SR-X= 10GBASE-SR SFP Module, LC connector, 850nm, 300m range, multimode fiber (MMF), extended operating temperature range |
|
|
10GBASE-LR SFP+ Module for SMF 10 Gbps |
|
|
10GBASE-LRM SFP Module |
|
|
HKShanhai Group Limited 10GBASE-ER SFP+ Module for SMF |
|
|
HKShanhai Group Limited 10GBASE-ZR SFP10G Module for SMF |
|
|
HKShanhai Group Limited Direct-Attach Active Optical Cables with SFP+ Connectors, SFP-H10GB-ACU7M |
|
|
HKShanhai Group Limited SFP-H10GB-ACU10M Direct-Attach Active Optical Cables with SFP+ Connectors |
Compare to Similar Item
Table 3 shows the comparison.
|
Model |
C9800-40-K9 |
||
|
Maximum number of access points |
Up to 2000 |
Up to 6000 |
Up to 6000 |
|
Maximum number of clients |
32,000 |
64,000 |
64,000 |
|
Maximum throughput |
Up to 40 Gbps |
Up to 80 Gbps |
Up to 2.5 Gbps |
|
Maximum WLANs |
4096 |
4096 |
4096 |
|
Maximum VLANs |
4096 |
4096 |
4096 |
|
License |
Smart License enabled |
Smart License enabled |
Smart License enabled |
|
Operating system |
HKShanhai Group Limited IOS XE |
HKShanhai Group Limited IOS XE |
HKShanhai Group Limited IOS XE |
|
Access points |
Aironet 802.11ac Wave 1 and Wave 2 access points |
Aironet 802.11ac Wave 1 and Wave 2 access points |
Aironet 802.11ac Wave 1 and Wave 2 access points
|
Get More Information
Do you have any question about the C9800-40-K9?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited C9800-40-K9 Specification
| Model | C9800-40-K9 |
| Brand | HKShanhai Group Limited |
| Wireless Standards | IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave1 and Wave2, 802.11ax |
| Wired, Switching, and Routing Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, 1000BASE-T, 1000BASE-SX, 1000BASE-LH, IEEE 802.1Q VLAN tagging, 802.1AX Link Aggregation |
| Maximum Throughput | Up to 40 Gbps |
| Data Standards | RFC 768 (UDP), RFC 791 (IP), RFC 2460 (IPv6), RFC 792 (ICMP), RFC 793 (TCP), RFC 826 (ARP), RFC 1122 (Requirements for Internet Hosts), RFC 1519 (CIDR), RFC 1542 (BOOTP), RFC 2131 (DHCP), RFC 5415 (CAPWAP), RFC 5416 (CAPWAP Binding for 802.11) |
| Security Standards | Wi-Fi Protected Access (WPA), IEEE 802.11i (WPA2, RSN), Wi-Fi Protected Access 3 (WPA3), RFC 1321 (MD5), RFC 1851 (ESP 3DES), RFC 2104 (HMAC), RFC 2246 (TLS 1.0), RFC 2401 (Security Architecture for the Internet Protocol), RFC 2403 (HMAC-MD5-96), RFC 2404 (HMAC-SHA-1-96), RFC 2405 (ESP DES-CBC), RFC 2407 (ISAKMP Interpretation), RFC 2408 (ISAKMP), RFC 2409 (IKE), RFC 2451 (ESP CBC-Mode), RFC 3280 (X.509 PKI), RFC 4347 (DTLS), RFC 5246 (TLS 1.2) |
| Encryption Standards | Static WEP RC4 40, 104, 128 bits, AES: CBC, CCM, CCMP, DES: DES-CBC, 3DES, SSL and TLS: RC4 128-bit and RSA 1024-, 2048-bit, DTLS: AES-CBC, IPsec: DES-CBC, 3DES, AES-CBC, 802.1AE MACsec encryption |
| AAA Standards | IEEE 802.1X, RFC 2548 (Microsoft VSA), RFC 2716 (PPP EAP-TLS), RFC 2865 (RADIUS Authentication), RFC 2866 (RADIUS Accounting), RFC 2867 (RADIUS Tunnel Accounting), RFC 2869 (RADIUS Extensions), RFC 3576 (Dynamic Authorization Extensions), RFC 5176 (Dynamic Authorization Extensions), RFC 3579 (RADIUS Support for EAP), RFC 3580 (IEEE 802.1X RADIUS Guidelines), RFC 3748 (EAP), Web-based authentication, TACACS support for management users |
| Management Standards | SNMP v1, v2c, v3, RFC 854 (Telnet), RFC 1155 (Management Information for TCP/IP), RFC 1156 (MIB), RFC 1157 (SNMP), RFC 1213 (SNMP MIB II), RFC 1350 (TFTP), RFC 1643 (Ethernet MIB), RFC 2030 (SNTP), RFC 2616 (HTTP), RFC 2665 (Ethernet-Like Interface Types MIB), RFC 2674 (Managed Objects for Bridges), RFC 2819 (RMON MIB), RFC 2863 (Interfaces Group MIB), RFC 3164 (Syslog), RFC 3414 (USM for SNMPv3), RFC 3418 (MIB for SNMP), RFC 3636 (Managed Objects for IEEE 802.3 MAUs), RFC 4741 (NETCONF), RFC 4742 (NETCONF over SSH), RFC 6241 (NETCONF), RFC 6242 (NETCONF over SSH), RFC 5277 (NETCONF event notifications), RFC 5717 (Partial Lock RPC), RFC 6243 (With-Defaults capability for NETCONF), RFC 6020 (YANG), HKShanhai Group Limited private MIBs |
| Max RF Tags | Web-based: HTTP/HTTPS, CLI: Telnet, SSH, serial port, SNMP, NETCONF |
| Hard Disk Drives (HDD) | SATA SSD, 240 GB of memory |
| Environmental Conditions Supported | Operating temperature: Normal: 5°C to 40°C (41°F to 104°F), Short term: 5°C to 50°C (41°F to 122°F), Nonoperating temperature: -40°C to 65°C (-104°F to 149°F), Operating humidity: Nominal: 5% to 85% non-condensing, Short term: 5% to 90% noncondensing, Nonoperating temperature humidity: 5% to 93% at 82°F (28°C), Operating altitude: 0 to 3000 m (0 to 10,000 ft), Non-operating altitude: 0 to 12,192 m (0 to 40,000 ft), Electrical input: AC input frequency range: 47 to 63 Hz, AC input range: 90 to 264 VAC with AC PEM, 1100W AC with optional redundant power supply (hot-swappable), Maximum power: 381W, Heat dissipation: 1,300 BTU/hr, Sound power level measure: A-weighted sound power level is 74.1 LpAm(dBA) @ 27°C nominal operation |
| Regulatory Compliance | Safety: UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1, EMC Emissions Class A: FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EMC Emissions: EN61000-3-2 (Power Line Harmonics), EN61000-3-3 (Voltage Changes, Fluctuations, and Flicker), EMC Immunity: IEC/EN61000-4-2 (Electrostatic Discharge), IEC/EN61000-4-3 (Radiated Immunity), IEC/EN61000-4-4 EFT-B (AC Power Leads, DC Power Leads, Signal Leads), IEC/EN61000-4-5 (Surge AC Port, DC Port, Signal Port), IEC/EN61000-4-6 (Conducted Disturbances), IEC/EN61000-4-8 (Power Frequency Magnetic Field Immunity), IEC/EN61000-4-11 (Voltage Dips, Short Interruptions), K35 (EMI-2), EMC (ETSI/EN): EN 300 386 (Telecommunications Network Equipment), EN55022 (Information Technology Equipment Emissions), EN55024/CISPR 24 (Information Technology Equipment Immunity), EN50082-1/EN61000-6-1 (Generic Immunity Standard) |
| C9800-40-K9 | C9800-40-K9 |
