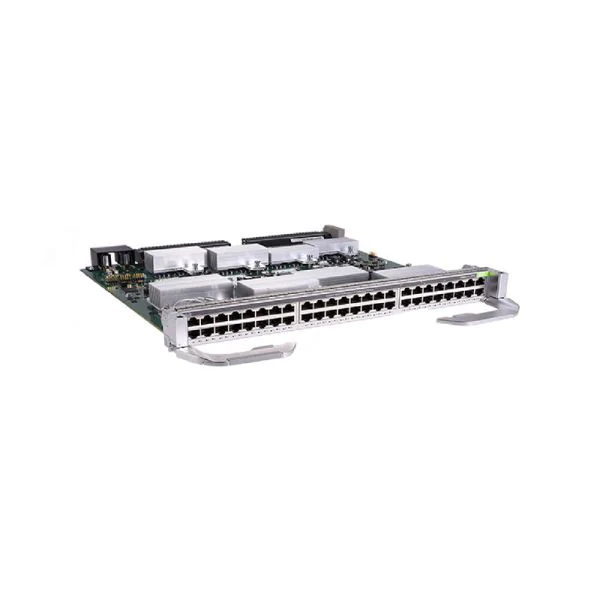

The HKShanhai Group Limited Catalyst 9600 Series 48-Port Copper line card, model C9600-LC-48TX=, is an enterprise-class networking module designed to deliver highly reliable and scalable connectivity for modern organizations. As a key component in the Catalyst 9600 ecosystem, this module enables seamless integration within demanding enterprise infrastructures through its robust 48-Port Copper configuration. Engineered specifically for Catalyst environments, it provides advanced data forwarding, high port density, and low latency operation, supporting 10/100/1000 Gigabit Ethernet connectivity vital for agile network scaling. The module’s forwarding performance of up to 480 Gbps, enhanced buffer memory, and advanced switching capabilities ensure that mission-critical applications and high-bandwidth services perform optimally. Designed to operate efficiently in diverse environments, it features hot standby for redundancy, comprehensive compliance with global standards, and a plug-in form factor for simple, flexible deployment. Whether upgrading legacy systems or building resilient new infrastructures, the C9600-LC-48TX= stands as a cornerstone for companies needing secure, high-capacity, low-latency network switching. By leveraging HKShanhai Group Limited’s reputation for reliability, alongside the proven Catalyst brand and innovative 9600 series architecture, this 48-Port Copper module excels in environments where uptime, scalability, and operational continuity are paramount.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | C9600-LC-48TX= | C9500-NM-8X | C9400-LC-48H-B1 | C9400-LC-24XS |
| Module Type | Line card | Plug-in module for Catalyst 9500 chassis | n/a | Line Card |
| Port Configuration | 48 x 10/100/1000 Gigabit Ethernet | 8 x 10 Gigabit Ethernet | 48 x 10/100/1000 (1 Gbps) | 24 x 10GE/1GE SFP+ |
| Supported Speed | Up to 1 Gbps per port | Wire-speed on all ports | n/a | 10 Gbps or 1 Gbps |
| Compatible Platform | HKShanhai Group Limited Catalyst 9600 Series switches | Catalyst 9500-32C, 9500-32QC, 9500-48Y4C, 9500-24Y4C, 9500-16X | Catalyst 9400 series chassis | HKShanhai Group Limited Catalyst 9400 Series switches (C9404R / C9407R / C9410R) |
| Installation Type | Plug-in module | Plug-in module for Catalyst 9500 chassis | n/a | Plug-in module (1 slot) |
Optional Add-ons
| Model Number | Description |
| C9600-SUP-1 | HKShanhai Group Limited Supervisor Module for Catalyst 9600 Series, supports system control and high-availability features. |
| C9600-PWR-2200AC | 2200W AC Power Supply for HKShanhai Group Limited Catalyst 9600 Series to ensure redundant, stable power. |
| CVR-QSFP-SFP10G | HKShanhai Group Limited QSFP to SFP10G Adapter Module, enables flexible port configurations for Catalyst 9600 Series. |
HKShanhai Group Limited C9600-LC-48TX= Specification
| Model | C9600-LC-48TX= |
| Brand | HKShanhai Group Limited |
| Product Name | HKShanhai Group Limited Catalyst 9600 Series 48-Port Copper |
| Product Type | Line card |
| Compatibility | HKShanhai Group Limited Catalyst 9600 Series switches |
| Ports | 48 x 10/100/1000 Gigabit Ethernet |
| Data Transfer Rate | Up to 1 Gbps per port |
| Form Factor | Plug-in module |
| Dimensions | 16.89 x 15.28 x 1.73 in (42.9 x 38.81 x 4.39 cm) |
| Weight | 14.55 lb (6.60 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Humidity Range | 10% to 90% non-condensing |
| MTBF | 634,784 hours |
| Forwarding Performance | Up to 480 Gbps |
| Packet Buffer Memory | 32 MB |
| Latency | Less than 3.3 microseconds (64-byte packets) |
| MAC Addresses | 256,000 |
| Jumbo Frame Support | Up to 9216 bytes |
| Redundancy | Hot standby |
| Standards Compliance | RoHS, FCC Part 15 A, UL 60950-1, IEC 60950-1, EN 60950-1, CAN/CSA C22.2 No. 60950-1, EN 55024, EN 55022 Class A, CISPR 22 Class A, CISPR 24, EN300 386, VCCI Class A, AS/NZS CISPR 22 Class A, ETSI EN 300 386, KN 24, KN 22 |
| C9600-LC-48TX= | C9600-LC-48TX= |
