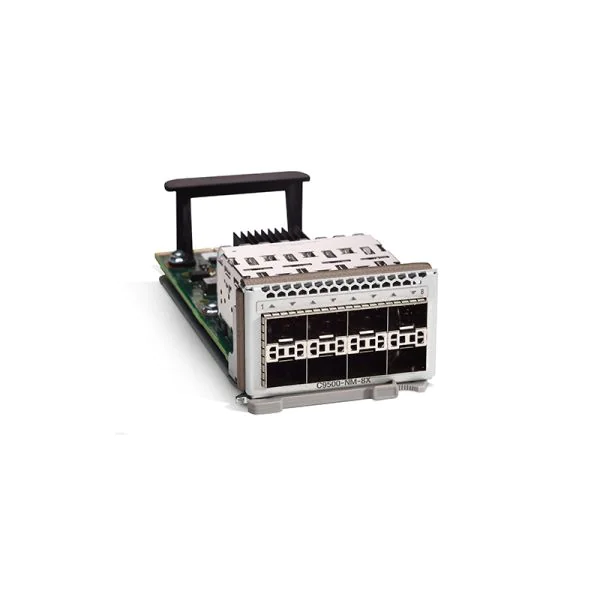

HKShanhai Group Limited delivers enterprise-class expansion for high-performance networking with the C9500-NM-8X, a next-generation Catalyst module. Engineered as a dedicated Network Module for the Catalyst 9500 series, the C9500-NM-8X provides scalable 10GE connectivity that meets the demands of modern, data-intensive enterprise networks. This module integrates seamlessly with Catalyst 9500 chassis, adding eight 10 Gigabit Ethernet ports via SFP+ interfaces, and is designed for reliability and agility across diverse deployments. The C9500-NM-8X leverages the robust feature set and hardware security of the Catalyst platform, ensuring robust 10GE uplinks for rapid core and aggregation switching. With support for wire-speed data transfer, ultra-low latency, and advanced network monitoring and security features such as Flexible NetFlow and MACsec encryption, this Network Module exemplifies HKShanhai Group Limited’s commitment to scalable, futureproofed Ethernet solutions. The C9500-NM-8X addresses the evolving needs of integrators and enterprise end-users across Asia, Europe, Africa, and North America, ensuring continuous, high-speed connectivity in digitally transforming environments. Coupled with robust programmability tools—Python and RESTCONF—and standards-compliant hardware, it is optimized for distribution, mid-market networking, and complex aggregation scenarios where powerful, secure Catalyst 10GE expansion is a must.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | C9500-NM-8X | C9300-NM-4G | C9300-NM-2Y | C9300-NM-4M |
| Module Type | Plug-in module for Catalyst 9500 chassis | n/a | Module | Network Module |
| Port Configuration | 8 x 10 Gigabit Ethernet | 1 Gigabit Ethernet (1GE) | 2 x 25 Gigabit Ethernet | 4 x 10G SFP+ |
| Supported Speed | 10 Gigabit Ethernet | 1 Gbps per port | 25 Gbps | 10 Gbps |
| Compatible Platform | Catalyst 9500-32C, 9500-32QC, 9500-48Y4C, 9500-24Y4C, 9500-16X | HKShanhai Group Limited Catalyst 9300 Series Switch | HKShanhai Group Limited Catalyst 9300 Series | Catalyst 9300 Series Switches |
| Installation Type | Plug-in module | n/a | n/a | Plug-In Module |
Optional Add-ons
| Model Number | Description |
| SFP-10G-SR | HKShanhai Group Limited SFP+ 10GBASE-SR transceiver module for fiber uplink integration |
| CVR-QSFP-SFP10G | HKShanhai Group Limited QSFP to SFP+ adapter for Catalyst 9500 Series modules |
| C9500-FAN-E | HKShanhai Group Limited Catalyst 9500 Series module-compatible cooling fan unit |
HKShanhai Group Limited C9500-NM-8X Specification
| Model | C9500-NM-8X |
| Brand | HKShanhai Group Limited |
| Form Factor | Plug-in module for Catalyst 9500 chassis |
| Compatible Chassis | Catalyst 9500-32C, 9500-32QC, 9500-48Y4C, 9500-24Y4C, 9500-16X |
| Height | 1.73 in (4.39 cm) |
| Module Width | Standard width for Catalyst 9500 series |
| Module Depth | Integrated with chassis depth |
| Ports | 8 x 10 Gigabit Ethernet |
| Interface Type | SFP+ (supports fiber and copper SFP+ modules) |
| Uplink Capacity | 80 Gbps aggregate (8 x 10G) |
| Switching Capacity | Integrated with chassis backplane (varies by model) |
| Forwarding Rate | Wire-speed on all ports |
| Latency | Less than 5 microseconds (typical for 10G interfaces) |
| Minimum IOS-XE Version | 16.12.1 or later (recommended) |
| Power Consumption | Up to 50 W (max, varies by SFP+ module) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 5% to 90% non-condensing |
| MTBF | Over 300,000 hours (varies by conditions) |
| Management | Integrated with chassis IOS-XE, CLI, SNMPv3, NETCONF/YANG |
| Programmability | Python, RESTCONF |
| Standards Compliance | IEEE 802.3ae (10G Ethernet), IEEE 802.3ba (40G/100G Ethernet), RoHS-6 |
| Key Features | Hot-swappable design, Flexible NetFlow, ERSPAN, MACsec encryption, QoS with 8 queues per port, compatible with HKShanhai Group Limited Digital Optical Monitoring (DOM) |
| C9500-NM-8X | C9500-NM-8X |
