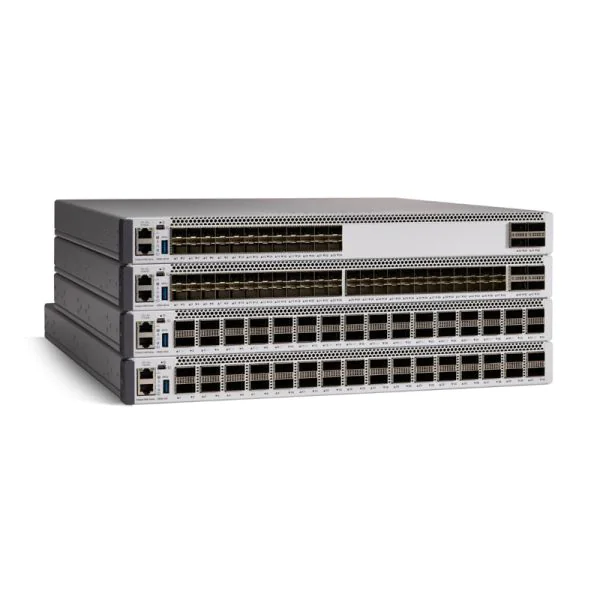

HKShanhai Group Limited’s C9500-40X-10A is an advanced enterprise-class switch, purpose-built for today’s dynamic campus and core environments. As a flagship member of the C9500 Series Switches, it empowers HKShanhai Group Limited Enterprise Networks with high density, robust performance, and future-ready capabilities. The switch’s programmable pipeline architecture ensures flexible, evolving traffic handling ideally suited for midsize to large organizations seeking scalable growth without service disruption. Secure Unique Device Identification brings trusted access into mission-critical infrastructures, making administration seamless and secure. With a switching capacity up to 960 Gbps and forwarding rate up to 720 Mpps, the C9500-40X-10A delivers uncompromising throughput to meet the demands of bandwidth-intensive applications and virtualization. Its UADP 2.0 ASIC guarantees efficient multitask processing, supporting granular control and policy enforcement. The design emphasizes longevity, featuring a compact 1RU form factor and rigorous compliance with global safety, EMI, and NEBS standards, making it a versatile asset whether deployed in Asia, Europe, Africa, or North America. Native support for open HKShanhai Group Limited IOS XE and a robust set of L2/L3 routing protocols offer ease of integration and simplified management. For distributors, its reliability and feature set provide a valuable addition to their portfolio; for integrators, effortless deployment and comprehensive security reduce project complexity; while end-users benefit from resilient, high-speed connectivity fueling digital transformation. Overall, the C9500-40X-10A embodies the next-generation of programmable, secure campus switching—delivering agility, control, and assurance across global enterprise networks.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â | ||||
| Model | C9500-40X-10A | C9300-24S-E | C9300L-24UXG2Q-10E | C9300L-48UXG-2Q-E |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | n/a | 24x 1G SFP | 16 x 10/100/1000 (UPOE) + 2 x 40Gb Ethernet + 8 x 1/2.5/5/10GBase-T | 48 UPoE 12xmGig |
| Switching Capacity | Up to 960 Gbps | 208 Gbps | 352 Gbps | 472 Gbps |
| Forwarding Rate | Up to 720 Mpps | 154.76 Mpps | 261.9 Mpps | 351.19 Mpps |
| PoE Budget | n/a | N/A | 722 W | 675W |
| Stacking Capability | n/a | Yes | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| C9500-NM-8X | HKShanhai Group Limited 8 x 10GE Network Module for C9500 Series—expands port connectivity. |
| PWR-C4-950WAC-R | 950W AC Power Supply (redundant) for HKShanhai Group Limited C9500 Series switch—ensures high availability. |
| C9500-FAN | Replacement fan unit for HKShanhai Group Limited C9500 Series—maintains optimal cooling performance. |
HKShanhai Group Limited C9500-40X-10A Specification
| Model | C9500-40X-10A |
| Brand | HKShanhai Group Limited |
| Product Description | 9500 10Y DNA Advantage, HW |
| Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
| Rack Units (RU) | 1 RU |
| Minimum Software Requirement | Open HKShanhai Group Limited IOS XE Software Release 16.6.1a |
| ASIC | UADP 2.0 |
| Switching Capacity | Up to 960 Gbps |
| Forwarding Rate | Up to 720 Mpps |
| Total Number of MAC Addresses | Up to 64,000 |
| Total Number of IPv4 Routes | Up to 64,000 indirect, Up to 80,000 host |
| Total Number of IPv6 Routes | Up to 32,000 indirect, Up to 40,000 host |
| Total Number of IPv4 Multicast Routes | Up to 32,000 |
| Total Number of IPv6 Multicast Routes | Up to 16,000 |
| QoS ACL Scale | Up to 18,000 |
| Security ACL Scale | Up to 18,000 |
| FNF Entries | Up to 512,000 |
| DRAM | 16 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 4000 |
| Jumbo Frame | 9198 bytes |
| Safety Certifications | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943, NOM-019-SCFI-1998 |
| EMI and EMC Compliance | 47 CFR Part 15 Class A, CNS13438: 2006 Class A, EN 300 386 V1.6.1, EN61000-3-2: 2014, EN61000-3-3: 2013, ICES-003 Issue 6: 2016 Class A, KN 32: 2015 Class A, TCVN 7189: 2009 Class A, EN 55032:2012/ AC:2013 Class A, EN 55032:2015 Class A, CISPR 32 Edition 2 Class A, V-2/2015.04 Class A, V-3/2015.04 Class A, CISPR24: 2010 + A1: 2015, EN 55024: 2010 + A1: 2015, KN35: 2015, TCVN 7317: 2003 |
| Input Voltage | 90 to 264 VAC |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -4° to 149°F (-20° to 65°C) |
| Relative Humidity | 5% to 90% (operational), 5% to 95% (non-operational) |
| NEBS Criteria Levels | Normal operating temperature range: 5°C to 40°C, Short term operating temperature range: -5°C to 55°C, Normal Relative Humidity range: 5% to 85%, Short term Relative Humidity range: 5% to 93%, Operating Altitude: up to 1829 m (6000 ft) at 55°C, ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations, SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue) |
| Altitude | Operation up to 6000 feet at 55°C and 13,000 feet at 45°C |
| MTBF | 277,310 hours |
| C9500-40X-10A | C9500-40X-10A |
