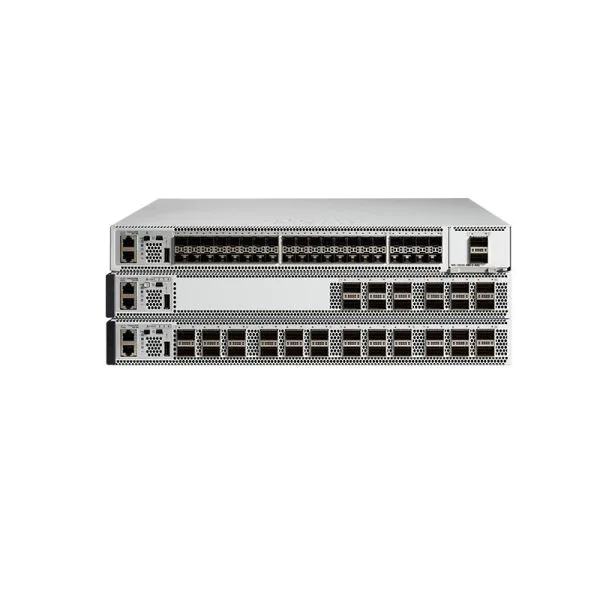

The HKShanhai Group Limited C9500-24Y4C-1A is an enterprise-class switch purpose-built for next-generation campus and data center networks demanding advanced security and high scalability. As an Enterprise Switch, it empowers organizations to achieve industry-leading throughput of up to 2.0 Tbps, enabling seamless connectivity for mission-critical applications. Its robust architecture ensures Advanced Security, featuring a substantial Security ACL scale for rigorous access control and network segmentation. Tailored for Data Center environments, this switch delivers exceptional versatility with extensive support for VLAN IDs and SVIs, facilitating efficient multi-tenant and virtualized deployments. The inclusion of SD-Access capabilities positions this model at the forefront of software-defined networking, empowering dynamic policy enforcement and rapid adaptation to evolving business needs. Enhanced with UADP 3.0 ASIC, substantial DRAM, and flash memory, the C9500-24Y4C-1A sustains high-density traffic, robust route tables, and comprehensive, future-ready management interfaces. Compliant with global safety, EMI, and NEBS standards, it operates reliably in varied environments, making it a strategic choice for enterprises, distributors, and system integrators across Asia, Europe, Africa, and North America seeking robust network performance and security at scale.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | C9500-24Y4C-1A | C9500-48Y4C-A-BUN | C9500-48Y4C-A | C9500-32QC-E |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | n/a | n/a | n/a | n/a |
| Switching Capacity | Up to 2.0 Tbps | Up to 3.2 Tbps | Up to 3.2 Tbps | Up to 3.2 Tbps |
| Forwarding Rate | Up to 1 Bpps | Up to 1 Bpps | Up to 1 Bpps | Up to 1 Bpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| C9K-PWR-650WAC-R | 650W AC Power Supply, genuine HKShanhai Group Limited accessory for C9500 Series switches. |
| C9K-PWR-930WDC-R | 930W DC Power Supply, official HKShanhai Group Limited option for enterprise redundancy. |
| CF-9000-SFP+ | HKShanhai Group Limited SFP+ Module, high-speed uplink compatible with the C9500 Series switch. |
HKShanhai Group Limited C9500-24Y4C-1A Specification
| Model | C9500-24Y4C-1A |
| Brand | HKShanhai Group Limited |
| Product Description | 9500 1Y DNA Advantage, HW |
| Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
| Rack Units (RU) | 1 RU |
| Minimum Software Requirement | HKShanhai Group Limited IOS XE Software Release 16.8.1a |
| ASIC | UADP 3.0 |
| Switching Capacity | Up to 2.0 Tbps |
| Forwarding Rate | Up to 1 Bpps |
| Total Number of MAC Addresses | Up to 82,000 |
| IPv4 Routes (ARP + learned routes) | Up to 212,000 indirect + direct, Up to 90,000 host/ARP |
| IPv6 Routes | Up to 212,000 indirect + direct, Up to 90,000 host |
| IPv4 Multicast Routes | Up to 32,000 |
| IPv6 Multicast Routes | Up to 32,000 |
| QoS ACL Scale | Up to 16,000 |
| Security ACL Scale | Up to 27,000 |
| FNF Entries | Up to 98,000 |
| DRAM | 16 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 4000 |
| Jumbo Frame | 9216 bytes |
| Safety Certifications | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB 4943, NOM-019-SCFI-1998 |
| EMI and EMC Compliance | 47 CFR Part 15 Class A, CNS13438: 2006 Class A, EN 300 386 V1.6.1, EN61000-3-2: 2014, EN61000-3-3: 2013, ICES-003 Issue 6: 2016 Class A, KN 32: 2015 Class A, TCVN 7189: 2009 Class A, EN 55032:2012/ AC:2013 Class A, EN 55032:2015 Class A, CISPR 32 Edition 2 Class A, V-2/2015.04 Class A, V-3/2015.04 Class A, CISPR24: 2010 + A1: 2015, EN55024: 2010 + A1: 2015, KN35: 2015, TCVN 7317: 2003 |
| Input Voltage | 90 to 264 VAC |
| Operating Temperature | 32°to 104°F (0°to 40°C) |
| Storage Temperature | -4°to 149°F (-20°to 65°C) |
| Relative Humidity (Operating and Non-operating, Non-condensing) | Operating: 5% to 90%, Non-operating and Storage: 5% to 95% |
| NEBS Criteria Levels | Normal operating temperature: 5°C to 40°C (up to 1829 meters), Short-term operating temperature: -5°C to 55°C, Normal Relative Humidity: 5% to 85%, Short-term Relative Humidity: 5% to 93%, Operating Altitude: up to 1829 m (6000 ft) at 55°C, ETSI 300-019 Requirements, SR-3580 NEBS level 3 |
| Altitude | Operation up to 13,000 feet at 40°C |
| MTBF (hours) | 336,780 |
| C9500-24Y4C-1A | C9500-24Y4C-1A |
