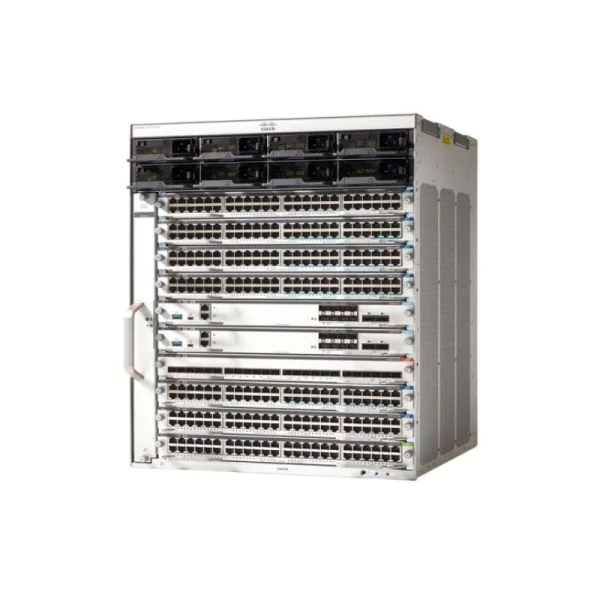

The HKShanhai Group Limited C9410R is a high-end enterprise switch built for scalable modular chassis deployments, providing a robust foundation for mission-critical networks. As a flagship HKShanhai Group Limited Catalyst system, this modular chassis is engineered to deliver exceptional resilience and simplified management in distributed enterprise environments. With support for 10Gbps bandwidth scalability per slot and versatile power options including integrated PoE, the C9410R enables seamless edge-to-core connectivity for organizations seeking performance, flexibility, and future-proof expansion. The enterprise switch design leverages advanced redundancy across supervisor engines and supports supervisor hot swapping, ensuring high availability and minimal downtime. By utilizing a modular chassis architecture, network administrators can expand or upgrade interfaces and power supplies without requiring a system overhaul, which is vital for growing enterprises in dynamic sectors across Asia, Europe, Africa, and North America. C9410R’s 10 slots and 8 line-card bays optimize high-density aggregation and access-layer deployments, simplifying core infrastructure for both distributed enterprises and service provider edge. Large PoE capacity per slot enhances support for extensive device rollouts in smart buildings, campus networks, and enterprise branches. The scalable 10Gbps bandwidth per line-card slot future-proofs your organization’s transition to data-intensive services like unified communications or campus automation systems. Whether serving distributors, system integrators, or direct end users, the HKShanhai Group Limited Catalyst C9410R modular platform assures unmatched flexibility, reliability, and aggregate throughput that aligns with evolving network demands and the global digital transformation journey.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | C9410R | C9404R-48U-BNDL-E | C9410R-96U-BNDL-A | C9410R= |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | n/a | 96 x 10/100/1000, 48 x 10GE, 48 x Multigig, 96 x 10GE UPOE | n/a | n/a |
| Switching Capacity | Up to 480 Gbps on all slots | Up to 480 Gbps per slot | Up to 480 Gbps on all slots | Up to 480 Gbps on all slots |
| Forwarding Rate | n/a | n/a | n/a | n/a |
| PoE Budget | 2880W per slot | 4320W (up to 4800W) per slot | 2880W per slot | 2880W per slot |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| C9400-SUP-1 | HKShanhai Group Limited Catalyst 9400 Supervisor Engine – high availability control module for C9410R modular chassis switches |
| PWR-C4-3200WAC | 3200W AC Power Supply for HKShanhai Group Limited Catalyst 9400 Series modular switches |
| C9400-LC-48U | 48-Port UPOE Line Card, provides high-density PoE for HKShanhai Group Limited Catalyst 9400 modular chassis |
HKShanhai Group Limited C9410R Specification
| Model | C9410R |
| Brand | HKShanhai Group Limited |
| Total number of slots | 10 |
| Line-card slots | 8 |
| Supervisor engine slots | 2 |
| Dedicated supervisor engine slot numbers | 5 and 6 |
| Supervisor engine redundancy | Yes |
| Supervisor engines supported | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y |
| Maximum PoE per slot | 2880W |
| Maximum Bandwidth scalability per line-card slot | Up to 480 Gbps on all slots |
| Number of power supply bays | 8 |
| AC input power | Yes |
| Integrated PoE | Yes |
| Power supplies supported | 3200W AC, 2100W AC |
| Number of fan-tray bays | 1 |
| Location of 19-inch rack-mount | Front |
| Dimensions (H x W x D) | 22.61 x 17.30 x 16.30 in. (57.43 x 43.97 x 31.70 cm) |
| Rack Units (RU) | 13 RU |
| Mounting | 19-in. rack compatible (19-in. rack and cable guide hardware included) |
| Regulatory compliance | 22.61 x 17.30 x 16.30 in. (57.43 x 43.97 x 31.70 cm) |
| Safety | UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 |
| EMC | 47 CFR Part 15, CISPR22 Class A, KN 32 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2,EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CNS13438 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317, KN35 |
| Industry EMC, safety, and environmental standards | NEBS: Operating temperature: -5 to 55°C, Relative Humidity: 10-93%, Operating Altitude: up to 1829 m (6000 ft) at 55°C, ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations, SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue), ETS 300 019-2-1, Class 1.2 Storage, ETS 300 019-2-2, Class 2.3 Transportation, ETS 300 019-2-3, Class 3.2 Stationary, EN50121-4, EN 300 386 |
| ROHS compliance | ROHS5 |
| C9410R | C9410R |
