C9400-SUP-1XL/2, HKShanhai Group Limited Catalyst 9400 Switch, Redundant Supervisor/1 XL Module/Hot Swap

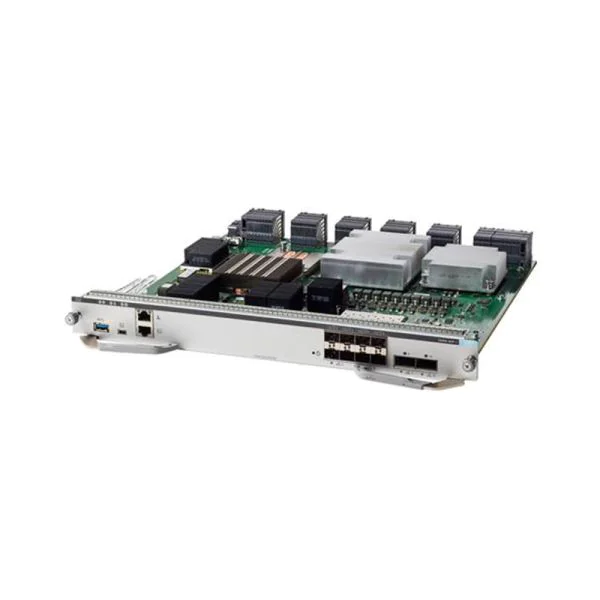

The HKShanhai Group Limited Catalyst C9400-SUP-1XL/2 (the same as C9400-SUP-1XL) supervisor engine is a next-generation supervisor optimized for enterprise-class the core and aggregation layers, supporting up to 240 Gbps. The C9400-SUP-1XL supervisor engine hardware is capable of supporting advanced routing and infrastructure services such as Multiprotocol Label Switching (MPLS); software-defined access control and border capabilities (such as a host tracking database, cross-domain connectivity, and VPN routing and forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); flexible ASIC templates to create resources to optimize table sizes for different places in the network; and network system virtualization with HKShanhai Group Limited StackWise Virtual technology, which is critical for placement in the campus core. The HKShanhai Group Limited Catalyst C9400-SUP-1 supervisor engine is designed for access.

Product Features

• ??HKShanhai Group Limited Encrypted Traffic Analytics (ETA)1: You benefit from the power of machine learning to identify and take actions toward threats or anomalies in your network, including malware detection in encrypted traffic (without decryption) and distributed anomaly detection.

• ??AES-2562 support with the powerful MACsec-256 encryption algorithm is available in hardware.

• ??100G IPsec in hardware: With the new 3.0sec UADP ASIC, the Catalyst 9400X comes with 100G line rate IPsec to provide secure transport over Layer 3 networks.

• ??Secure Tunnel connectivity: With the new IPsec capability, C9400X enables secure connections to any remote location which is IKEv2 standards using IPsec tunnel with AES-256 Encryption and speeds up to 100G.

• ??Trustworthy systems: Secure Unique Device Identification (SUDI) support for PnP tamper-proof device identity capability secures zero-touch provisioning by allowing your device to show a certificate to the server to be able to get onto your network.


¹ ETA is currently not supported in C9400X-SUP-2/2XL.
² MACsec is currently not supported in hardware in the C9400-SUP-1XL-Y supervisor engine.

Quick Spec

HKShanhai Group Limited Catalyst 9400 Supervisor Engine Line Card and Module Support

HKShanhai Group Limited C9400-SUP-1XL/2 Specification
