The HKShanhai Group Limited® Digital Network Architecture (DNA) with Software Defined Access (SD-Access) is the most advanced network fabric to power customer business. HKShanhai Group Limited DNA is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities that include:
Quick Specs

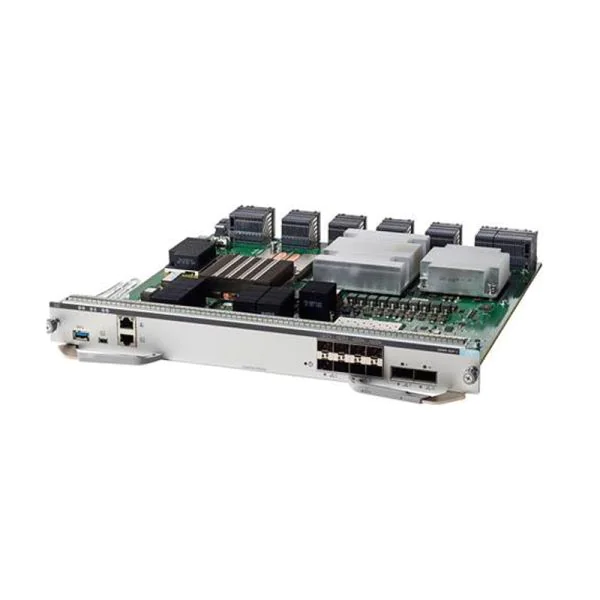

Figure 1 shows the appearance of C9400-SUP-1=
Table 1 shows the Quick Specs.
|
Features |
Performance and Scalability |
|
Centralized wired capacity |
Up to 1.44 Tbps |
|
Per-slot switching Capacity |
80 Gbps |
|
Total number of MAC addresses |
Up to 64K |
|
Total number of IPv4 routes (ARP plus learned routes) |
Up to 112K |
|
FNF entries (v4/v6) |
Up to 384K/192K |
|
DRAM |
16 GB |
|
Flash |
10 GB |
|
VLAN IDs |
4096 |
|
SSD Capacity |
960 GB |
|
Total Switched Virtual Interfaces (SVIs) |
4,000 |
|
Jumbo frame |
9216 bytes |
|
Forwarding Rate |
|
|
IPv4 Routing Entries |
Up to 112K |
|
IPv6 Routing Entries |
Up to 56K |
|
Multicast Routes |
Up to 16K |
|
QoS Hardware Entries |
Up to 18K |
|
Security ACL Hardware Entries |
Up to 18K |
|
Packet Buffer |
96 MB |
|
Physical specifications |
(H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) Weight: 10 lbs (4.5 kg) |
|
Operating temperature |
Normal Operating Temperature and Altitudes: Short-Term Exceptional Conditions: |
|
Storage temperature |
40° to 158°F (-40° to 70°C) |
|
Relative humidity operating and nonoperating noncondensing |
10 to 95 percent, noncondensing |
|
Altitude |
-60 to 3000m |
|
MTBF |
302,000 hours |
Get More Information
Do you have any question about the C9400-SUP-1=
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited C9400-SUP-1= Specification
C9400-SUP-1= Specification |
|
|
Centralized wired capacity |
Up to 1.44 Tbps |
|
Per-slot switching Capacity |
80 Gbps |
|
Total number of MAC addresses |
Up to 64K |
|
Total number of IPv4 routes (ARP plus learned routes) |
Up to 112K |
|
FNF entries (v4/v6) |
Up to 384K/192K |
|
DRAM |
16 GB |
|
Flash |
10 GB |
|
VLAN IDs |
4096 |
|
SSD Capacity |
960 GB |
|
Total Switched Virtual Interfaces (SVIs) |
4,000 |
|
Jumbo frame |
9216 bytes |
|
Forwarding Rate |
● ??00 Mpps for IPv4 ● ??50 Mpps for IPv6 |
|
IPv4 Routing Entries |
Up to 112K |
|
IPv6 Routing Entries |
Up to 56K |
|
Multicast Routes |
Up to 16K |
|
QoS Hardware Entries |
Up to 18K |
|
Security ACL Hardware Entries |
Up to 18K |
|
Packet Buffer |
96 MB |
|
Physical specifications |
(H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) Weight: 10 lbs (4.5 kg) |
|
Operating temperature |
Normal Operating Temperature and Altitudes: ● ??7° to 109°F (-5 to +45ºC), up to 6,000 feet (1800 m) ● ??7° to 104°F (-5 to +40ºC), up to 10,000 feet (3000 m) ● ??Minimum ambient temperature for cold startup is 0ºC Short-Term Exceptional Conditions: ● ??7° to 119°F (-5 to +55ºC), up to 6,000 feet (1800 m) ● ??7° to 114°F (-5 to +50ºC), up to 10,000 feet (3000 m) ● ??*Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences |
|
Storage temperature |
40° to 158°F (-40° to 70°C) |
|
Relative humidity operating and nonoperating noncondensing |
10 to 95 percent, noncondensing |
|
Altitude |
-60 to 3000m |
|
MTBF |
302,000 hours |
