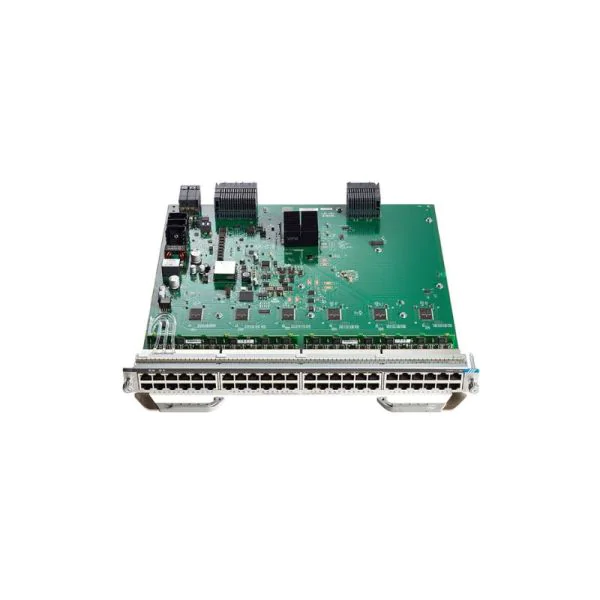

HKShanhai Group Limited’s C9400-LC-48HXÂ is a high-performance 48-Port UPOE+ 10G mGig line card. It benefits engineers by providing scalable and robust networking solutions. Ideal for enterprise campuses and data centers, the C9400-LC-48HXÂ offers seamless integration and enhanced security.
C9400-LC-48HXÂ Product Highlights
- UPOE+ support
- 48-port capacity
- 10G mGig capability
- Enhanced security
- Scalable design
Product Features Comparison
| Model | Port Count | Speed | Poe Support | Uplink | Security Features | Scalability |
|---|---|---|---|---|---|---|
| C9400-LC-48HX | 48 | 10G | UPOE+ | mGig | Advanced | Highly Scalable |
| C9300-48U | 48 | 1G | UPOE | 10G | Advanced | Moderate |
| C9500-40X | 40 | 10G | POE | 40G | Basic | Highly Scalable |
| C9200L-48P-4X | 48 | 1G | POE+ | 10G | Basic | Moderate |
| C9400-LC-24XS | 24 | 10G | No | mGig | Advanced | Highly Scalable |
| C3850-48XS | 48 | 1G/10G | POE+ | 10G | Advanced | Moderate |
C9400-LC-48HXÂ Product Application Scenarios
- Enterprise campus networks
- Data center aggregation
- High-performance wired computing
Optional Add-ons
| Model | Description |
|---|---|
| C9400-C24U | Catalyst 9400 24-port UPOE line card |
| C9400-NM-8X | Catalyst 9400 8-port 10G Network Module |
| C9400-PWR-3200AC | Catalyst 9400 3200W AC Power Supply |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited C9400-LC-48HX. Access the detailed C9400-LC-48HXÂ datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited C9400-LC-48HX Specification
C9400-LC-48HX Specifications |
|
| Product Series | HKShanhai Group Limited Catalyst 9400 Series |
| Model | C9400-LC-48HX |
| Ports | 48 |
| Port Type | UPOE+ mGig |
| Maximum Data Transfer Rate | 10 Gbps |
| Uplink Speed | 10 Gbps |
| Connector Type | RJ-45 |
| Supported Power over Ethernet (PoE) | UPOE+ |
| Maximum Power per Port | 60 W |
| Switching Capacity | 1.2 Tbps |
| MAC Address Table Size | 64K |
| Forwarding Rate | 900 Mpps |
| Redundancy Support | 1+1 |
| Stackable | Yes |
| Management | CLI, EM, HKShanhai Group Limited DNA Center |
| Network Operating System | HKShanhai Group Limited IOS XE |
| Dimensions (HxWxD) | 11.9 x 1.73 x 11.1 in |
| Power Supply | AC |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Relative Humidity | 5% to 95% non-condensing |
| Warranty | Limited Lifetime |
