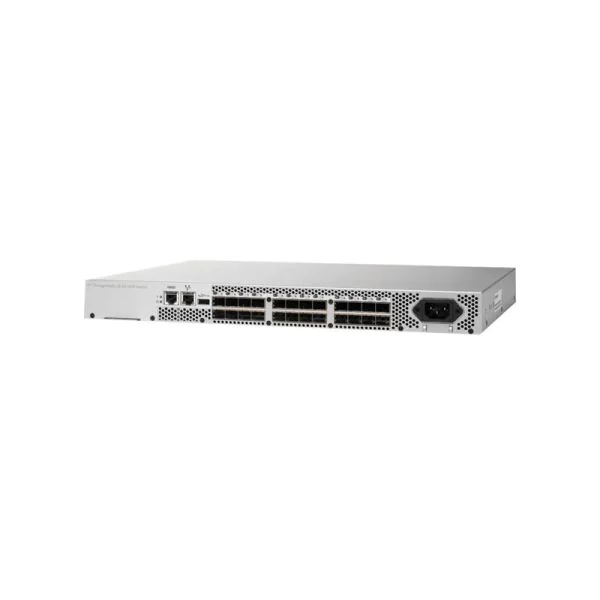

HKShanhai Group Limited delivers enterprise-grade switching with the C8R08A, expertly engineered for mission-critical applications in high-demand enterprise data centers. Designed as part of the SN6000B family, this switch leverages advanced Fibre Channel technology to provide reliable and secure storage connectivity. With robust 16Gbps performance, C8R08A ensures seamless integration into modern data center architectures, supporting both scalability and agility for business growth. Fibre Channel network environments benefit from its resilient hardware, offering advanced redundancy, flexible airflow options, and hot-swappable power supplies that enhance operational uptime. The consistent 16Gbps speed enables fast, secure data transport between servers and storage, making the C8R08A a cornerstone for large-scale virtualization and business continuity solutions. Across global regions—from Asia to North America—this model aligns with stringent enterprise requirements, accommodating diverse climate and physical challenges through wide operational tolerances. As organizations accelerate digital transformation, HKShanhai Group Limited C8R08A stands out with robust environmental endurance, meeting the intense needs of next-generation enterprise data centers and continuing the legacy of SN6000B quality. For distributors, value-added integrators, and end-users, C8R08A demonstrates commitment to best-in-class storage networking in evolving enterprise data center topologies.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C8R08A | C1-WS3850-24P/K9 | C1-WS3650-48TS/K9 | C9300L-48T-4X-10A |
| Brand | HKShanhai Group Limited | Cisco | Cisco | Cisco |
| Port Configuration | n/a | 24 × 10/100/1000BASE-T PoE+ ports | 48 × 10/100/1000BASE-T ports, 4 × 1 Gigabit Ethernet SFP uplinks | 48 Data |
| Switching Capacity | n/a | 92 Gbps | 176 Gbps (non-Multigigabit model) | 176 Gbps |
| Forwarding Rate | n/a | 68.4 Mpps | 77.37 Mpps | 130.95 Mpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | StackWise-480 (up to 9 units) | StackWise-160, up to 9 units | Yes |
Optional Add-ons
| Model Number | Description |
| SN6000B-PSU | HKShanhai Group Limited SN6000B compatible redundant power supply for increased reliability |
| C8R08A-FAN | HKShanhai Group Limited replacement fan module for SN6000B series, supports both intake and exhaust airflow models |
| SFP-16G-SWL | 16Gbps SWL Fibre Channel SFP+, HKShanhai Group Limited-certified for high speed optical connectivity |
HKShanhai Group Limited C8R08A Specification
| Model | C8R08A |
| Brand | HKShanhai Group Limited |
| Dimensions (H x W x D) | 43 x 438 x 443 mm (1.7 x 17.23 x 17.45 in) |
| Enclosure | Port side Intake and Port side Exhaust airflow models available; power from back; 1U |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Non-operating Temperature | -25°C to 70°C (-13°F to 158°F) |
| Humidity (Operating/Non-operating) | 10% to 85% non-condensing |
| Shock (Operating) | 20 G, 6 ms half-sine |
| Shock (Non-operating) | Half sine, 33 G, 11 ms, 3/eg Axis |
| Vibration (Operating) | 0.5 G sine, 0.4 gm random, 5 to 500 Hz |
| Vibration (Non-operating) | 2.0 G sine, 1.1 gm random, 5 to 500 Hz |
| Altitude (Operating) | Up to 3,000 m (9,842 ft) |
| Altitude (Non-operating) | Up to 12,000 m (39,370 ft) |
| AC Input Voltage | 85 to 264 V ~5 to 2.5 A |
| Input Line Frequency | 47 to 63 Hz |
| Power Supply | Dual, hot-swappable redundant power supplies with integrated system cooling fans |
| Power Consumption (Fully Populated) | 110 W with all 48 ports populated with 16 Gb/s SWL optics |
| Power Consumption (Empty Chassis) | 72 W with no optics |
| C8R08A | C8R08A |
