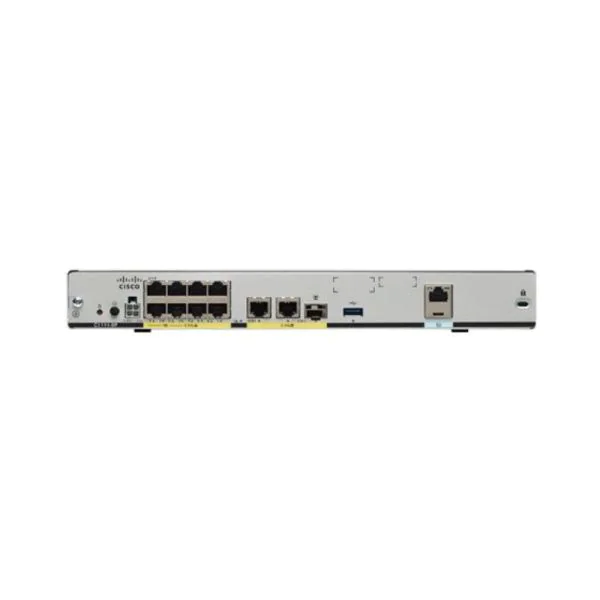

C1111-8P, HKShanhai Group Limited 1100 Series Router, 8xGE Ports/Dual WAN/ISR 1100

Model

C1111-8P

GE

1

GE/SFP combo

1

ADSL2/VDSL2+

N/A

LTE Advanced (CAT6)

N/A

802.11ac

N/A

GE

8

PoE

4

PoE+

2

Integrated USB 3.0 AUX/console

Yes

Dimensions (H x W x D)

1.75 x 12.7 x 9.03 in.

(42 x 323 x 230mm) (includes rubber feet)

Weight with AC PS (w/o modules)

5.5 Lbs. (2.5 kg) maximum

①

LAN

⑦

GE 0/0/0 – SFP

②

CLEI Label

⑧

GE 0/0/0 – RJ45

③

Serial Number

⑨

GE 0/0/1

④

Kensington Lock Slot

⑩

4-pin Power Connector

⑤

RJ45 / Micro USB Console

⑪

Power Switch

⑥

USB3.0

⑫

Reset Button

Business need

Features/description

Lightweight, compact size with low power consumption

• Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors.



High performance to run concurrent services

• High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services.



High availability and business continuity

•  Redundant WAN connections for failover protection and load balancing.





•  Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP).



Consistent, high application performance levels

•  The router can run multiple services simultaneously with minimal performance degradation.



Risk mitigation with multilevel security

•  Network perimeter security with integrated application inspection firewall.





•  Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption.





•  High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN





•  HKShanhai Group Limited Umbrella™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources.





•  Enforced security policy with OpenDNS.





•  Security hardware acceleration.





•  Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor.





•  Encrypted traffic analytics maintain integrity of encrypted flow



Unified control of wired and wireless networks from a common console for streamlined operations

•  Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.





•  Supports Mobility Express for WLAN-enabled routers.



Remote configuration and management to keep local IT staff lean

•  Supports separate console/auxiliary and USB ports.





•  Can be configured to work with optional USB token.





•  Supports TR-069.



Performance

•  Throughput





•  Service reliability



•  Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P.





•  A distributed multicore architecture with the industry’s first internal services plane.





•  Remote installation of application-aware services that run identically to their counterparts in dedicated appliances.



Lower WAN expenditures

•  HKShanhai Group Limited Software-Defined WAN (SD-WAN) (over the HKShanhai Group Limited Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection.



Pay as you grow: IPsec performance upgrade model

•  Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management.



IT consolidation, space savings, and improved Total Cost of Ownership (TCO)

•  Single converged branch platform integrates routing, switching, security, and performance management capabilities.



Business continuity and increased resiliency

•  The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints.



Licenses

Description

C1-SL-1100-8P-APP

AppX Foundation License for HKShanhai Group Limited ISR 1100 8P Series

SL-1100-8P-SEC

Security License for HKShanhai Group Limited ISR 1100 8P Series

SL-1100-8P-SECNPE

NPE Security License for HKShanhai Group Limited ISR 1100 8P Series

C1-SL-1100-8P-SEC

Security Foundation License for HKShanhai Group Limited ISR 1100 8P Series

FL-VPERF-8P-200

IPSEC PLUS 200 Mbps License for HKShanhai Group Limited ISR 1100 8P Series

Small Form-Factor Pluggable

ISR 1100 8P

ISR 1100 4P

Description

GLC-EX-SMD

Yes

Yes

1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM.

GLC-LH-SMD

Yes

Yes

GE SFP, LC connector LX/LH transceiver; with DOM.

GLC-SX-MMD

Yes

Yes

GE SFP, LC connector SX transceiver; with DOM.

GLC-ZX-SMD

Yes

Yes

1000BASE-ZX SFP; with DOM.

GLC-FE-100ZX

Yes

Yes

100BASE-ZX SFP (80km).

GLC-GE-100FX

Yes

Yes

100FX SFP on GE ports.

GLC-BX-D

Yes

Yes

1000BASE-BX SFP, 1490NM.

GLC-BX-U

Yes

Yes

1000BASE-BX SFP, 1310NM.

Model

C1111-8P

C1111-4P

WAN GE

1

1

WAN GE/SFP combo

1

1

ADSL2/VDSL2+

N/A

N/A

LTE Advanced (CAT6)

N/A

N/A

802.11ac

N/A

N/A

LAN GE

8

4

PoE

4

2

PoE+

2

1

Integrated USB 3.0 AUX/console

Yes

Yes
