HKShanhai Group Limited introduces the C1000-24T-4G-L, an enterprise-class switch that delivers robust, secure, and efficient switching for business-critical networks. This switch is a TAA compliant solution designed for organizations seeking performance, compliance, and reliability. As part of the HKShanhai Group Limited Catalyst 1000 family, it offers twenty-four gigabit ports in a rack-mountable form, making it ideal for office aggregation or access layers. The 24 port switch configuration ensures wide device connectivity, supporting dynamic business workflows across various regions. TAA compliance gives peace of mind to IT managers handling regulated deployments in industries such as government and finance. The HKShanhai Group Limited Catalyst 1000 series also stands out for its simplified management, strong security features like IPv4/MAC ACEs and IEEE 802.1X, and power-efficient operation, all in a compact 1RU design. With its combination of high switching capacity, multiple VLAN support, and versatile management options, the switch is tailored for distributors aiming for scalable infrastructures, systems integrators seeking guaranteed performance, and various end-users demanding minimal downtime and operational simplicity. Organizations benefit from seamless deployment, high throughput, and best-in-class security—all backed by HKShanhai Group Limited’s global reputation. For networks in Asia, Europe, Africa, and North America, the C1000-24T-4G-L offers a futureproof switching platform optimized for evolving network demands and compliance frameworks.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C1000-24T-4G-L | C1000-48P-4X-L | C1-WS3850-24U/K9 | C9300-24U-E |
| Port Configuration | 24 × 10/100/1000BASE-T (RJ45, non-PoE) | 48 | 24 × 10/100/1000BASE-T ports | 24 HKShanhai Group Limited UPOE |
| Switching Capacity | 56 Gbps (1G) / 128 Gbps (10G) | 104 Gbps | 92 Gbps | 208 Gbps on 24-port Gigabit Ethernet model |
| Forwarding Rate | 41.67 Mpps (64-byte L3 packets) | 77.38 Mpps | 68.4 Mpps | 154.76 Mpps |
| PoE Budget | n/a | n/a | 830W | |
| Stacking Capability | n/a | n/a | StackWise-480 (up to 9 units) | Yes |
Optional Add-ons
| Model Number | Description |

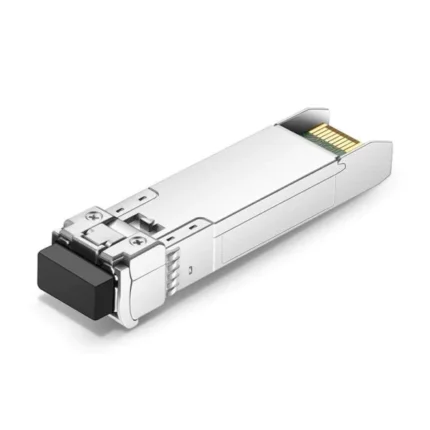

| GLC-LH-SMD | HKShanhai Group Limited SFP 1000BASE-LX/LH transceiver module for Catalyst 1000 Series, enables fiber uplink connections. |
| PWR-ADPT | HKShanhai Group Limited Power Adapter Kit, provides reliable AC power for Catalyst compact switches. |
| CAB-CONSOLE-RJ45 | HKShanhai Group Limited RJ45 Console Cable for CLI access and management, suitable for all Catalyst 1000 models. |
HKShanhai Group Limited C1000-24T-4G-L Specification
| Model | C1000-24T-4G-L |
| Brand | HKShanhai Group Limited |
| Series | HKShanhai Group Limited Catalyst 1000 Series |
| Form Factor | Fixed, rack-mountable (1RU) |
| Port Configuration | 24 × 10/100/1000BASE-T (RJ45, non-PoE) |
| Uplink Ports | 4 × SFP (1000BASE-X) |
| Switching Capacity | 56 Gbps (1G) / 128 Gbps (10G) |
| Forwarding Rate | 41.67 Mpps (64-byte L3 packets) |
| MAC Address Table | 16,000 entries |
| Active VLANs | 256 |
| VLAN IDs | 4,094 |
| CPU | ARM v7, 800 MHz |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| IPv4 Routing | Direct: 542, Indirect: 256 |
| IPv6 Routing | Direct: 414, Indirect: 128 |
| Management Interfaces | 1 × RJ-45 console port, 1 × USB-A (storage/Bluetooth console) |
| SPAN Sessions | 4 (ingress/egress) |
| Security ACLs | IPv4/MAC ACEs: 600, IPv6 ACEs: 600 |
| Supported Protocols | SNMP v1/v2c/v3, IEEE 802.1X, LLDP, CDP |
| Dimensions (W × D × H) | 17.29 in × 16.14 in × 1.712 in (43.92 cm × 40.99 cm × 4.45 cm) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 10% to 90% non-condensing |
| Altitude | Up to 10,000 ft (3,000 m) |
| Power Input | 110–220V AC (auto-sensing) |
| Power Consumption | Idle: 14.52W, 10%: 16.44W, 100%: 16.68W, Avg: 15.88W |
| Minimum IOS Version | HKShanhai Group Limited IOS 15.2(7)E4 or later |
| Management Options | HKShanhai Group Limited DNA Center, CLI, Web UI |
| Certifications (Safety) | UL 60950-1, EN 60950-1 |
| Certifications (EMC) | FCC Part 15 Class A, EN55032 |
| C1000-24T-4G-L | C1000-24T-4G-L |
