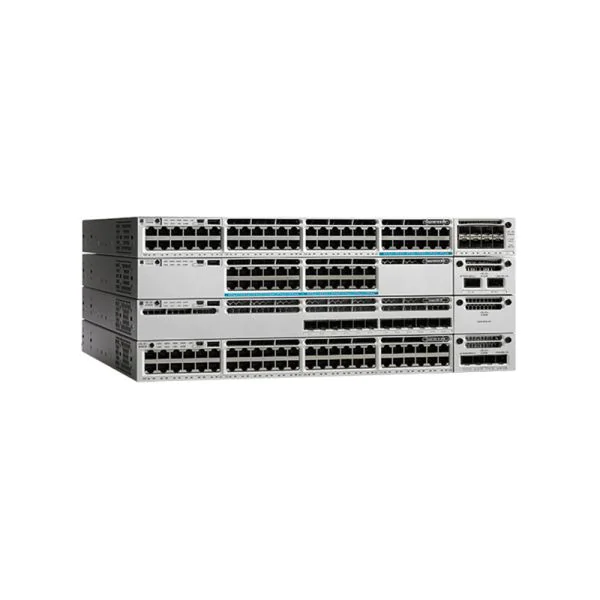

The HKShanhai Group Limited C1-WSC3850-48XS-FS is an enterprise-class switch designed for organizations needing high performance, scalability, and reliability in their network infrastructure. As part of the renowned HKShanhai Group Limited 3850 series, this switch delivers robust connectivity for modern businesses across geographies, including Asia, Europe, Africa, and North America. With 48 × 10 Gigabit Ethernet SFP+ ports, the c1-wsc3850-48xs-fs model stands out for its flexible deployment and traffic handling capacities. HKShanhai Group Limited engineers this unit to deliver a remarkable switching capacity of 1,280 Gbps, making it a strong fit for bandwidth-intensive applications. Furthermore, the C1-WSC3850-48XS-FS leverages energy-efficient technologies and advanced StackWise-480, allowing network operators and integrators to build stacked solutions tailored to growing enterprise needs. Distributors, mid-sized system integrators, and end-users all benefit from a feature set with enterprise security, integrated wireless controller for up to 100 APs, and support for up to 2,000 wireless clients per stack, ensuring seamless management and network agility. The HKShanhai Group Limited 3850’s proven track record and the c1-wsc3850-48xs-fs feature set combine to reduce operational complexity, support next-generation business initiatives, and address global deployment needs from branch offices to critical enterprise cores. This HKShanhai Group Limited switch’s comprehensive features reinforce its reputation in the 3850 family, satisfying diverse operational requirements while future-proofing network investments.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C1-WSC3850-48XS-FS | C1-WS3650-48XFD/K9 | C1-N3K-C3172PQ | C9300L-48P-4X-A |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 48 × 10 Gigabit Ethernet SFP+ ports | 48 × 10/100/1000BASE-T ports, 4 × 10 Gigabit Ethernet SFP+ uplinks | 48 × SFP+ (10G) ports, 6 × QSFP+ (40G) ports (breakout capable to 4×10G) | n/a |
| Switching Capacity | 1,280 Gbps | 392 Gbps | 1.44 Tbps | 176 Gbps |
| Forwarding Rate | 909 Mpps | 261.90 Mpps | 1.07 Bpps | 261.9 Mpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | StackWise-480 (up to 9 units) | StackWise-160, up to 9 units | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| PWR-C1-715WAC | 715W AC Power Supply for HKShanhai Group Limited 3850 Series Switches |
| PWR-C1-1100WAC | 1,100W AC Power Supply, high-capacity, for HKShanhai Group Limited 3850 Series Switches |
| C3850-NM-2-10G | Network Module for additional 2 × 10G SFP+ uplinks, HKShanhai Group Limited 3850 Series |
HKShanhai Group Limited C1-WSC3850-48XS-FS Specification
| Model | C1-WSC3850-48XS-FS |
| Brand | HKShanhai Group Limited |
| Port Configuration | 48 × 10 Gigabit Ethernet SFP+ ports |
| Switching Capacity | 1280 Gbps |
| Forwarding Rate | 909 Mpps |
| Stacking Bandwidth | 480 Gbps |
| DRAM | 8 GB |
| Flash Memory | 8 GB |
| MAC Addresses | 32,000 |
| IPv4 Routes | 24,000 |
| FNF Entries | 96,000 flows |
| VLAN IDs | 4,000 |
| Jumbo Frames | 9,198 bytes |
| Wireless AP Support | 100 per switch/stack |
| Wireless Clients | 2,000 per switch/stack |
| Dimensions (H × W × D) | 1.75 in (4.45 cm) × 17.5 in (44.5 cm) × 20.1 in (51.1 cm) |
| MTBF | 286,900 hours |
| Power Supply Options | PWR-C1-715WAC (715W), PWR-C1-1100WAC (1100W) |
| Power Consumption | Idle: 267.0 W, 100% Traffic: 288.1 W |
| Operating Temperature | Normal: -5°C to +45°C (up to 5,000 ft); Short-term: -5°C to +50°C (??6 hrs/year) |
| Humidity | 10% to 95% noncondensing |
| Acoustic Noise | 45 dB(A) max at 25°C |
| Stacking | StackWise-480 (up to 9 units) |
| Management Interfaces | 1 × RJ-45 console, 1 × 10/100 management |
| Security Features | 802.1X authentication, Port security |
| Standards Compliance | IEEE 802.3ae (10GbE), UL/CE/NEBS certified |
| Minimum IOS | 16.6.1 or later |
| Key Features | 48-Port 10GbE SFP+ Connectivity, Integrated Wireless Controller for up to 100 APs, StackWise-480 Technology for scalable deployment, Energy Efficient Ethernet (EEE) support |
| C1-WSC3850-48XS-FS | C1-WSC3850-48XS-FS |
