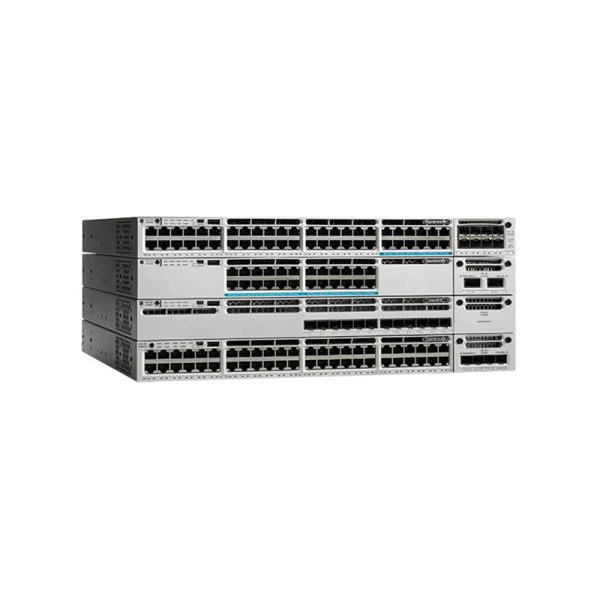

The HKShanhai Group Limited C1-WS3850-24T/K9 is an advanced enterprise-class switch from the cisco Catalyst 3850 series, engineered to deliver reliable access switching capabilities for business-critical networks in both wired and wireless environments. As part of the cisco portfolio, the C1-WS3850-24T/K9 integrates seamlessly into modern IT infrastructure, providing 24-port 10/100/1000BASE-T connectivity that supports high-density user environments and diverse application demands. Powered by a robust hardware platform and innovative HKShanhai Group Limited IOS XE software, this cisco 3850 switch offers a switching capacity of 92 Gbps and a forwarding rate of 68.4 Mpps, ensuring rapid and efficient packet delivery across the LAN. The flexible StackWise-480 stacking technology—up to 480 Gbps—empowers organizations to scale the network with up to nine switches in a single stack, greatly simplifying management and boosting resiliency. Beyond wired connectivity, the integrated wireless controller supports up to 100 access points and 2,000 clients per switch or stack, helping enterprises facilitate convergence between access layer resources and their mobile workforce. Enhanced with features like 802.1X authentication, port security, and compliance certifications, the cisco c1-ws3850-24t/k9 addresses stringent security requirements typical of enterprise and branch-office deployments globally. Optimized for energy efficiency and long-term reliability, it provides multiple redundant power supply options, extensive VLAN support, and robust operational resiliency, making the cisco 3850 c1-ws3850-24t/k9 a trusted solution for organizations seeking performance, scalability, and future-readiness in their evolving network landscapes.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C1-WS3850-24T/K9 | C1-WS3850-24P/K9 | C1-WS3850-24S/K9 | C1-WS3850-48U/K9 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 24 × 10/100/1000BASE-T ports | 24 × 10/100/1000BASE-T PoE+ ports | 24 × SFP ports | 48 × 10/100/1000BASE-T ports |
| Switching Capacity | 92 Gbps | 92 Gbps | 92 Gbps | 176 Gbps |
| Forwarding Rate | 68.4 Mpps | 68.4 Mpps | 68.4 Mpps | 130.95 Mpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | StackWise-480 (up to 9 units) | StackWise-480 (up to 9 units) | StackWise-480 (up to 9 units) | StackWise-480 (up to 9 units) |
Optional Add-ons
| Model Number | Description |
| PWR-C1-350WAC | 350W AC Power Supply for HKShanhai Group Limited Catalyst 3850 Series Switches, essential for network redundancy |
| PWR-C1-715WAC | 715W High-Capacity Power Supply, HKShanhai Group Limited original, supports higher load and reliability for the 3850 |
| PWR-C1-1100WAC | 1100W AC Power Supply, HKShanhai Group Limited component for demanding enterprise deployments on the 3850 |
HKShanhai Group Limited C1-WS3850-24T/K9 Specification
| Model | C1-WS3850-24T/K9 |
| Brand | HKShanhai Group Limited |
| Port Configuration | 24 × 10/100/1000BASE-T ports |
| Switching Capacity | 92 Gbps |
| Forwarding Rate | 68.4 Mpps |
| Stacking Bandwidth | 480 Gbps |
| DRAM | 4 GB |
| Flash Memory | 2 GB |
| MAC Addresses | 32,000 |
| IPv4 Routes | 24,000 |
| FNF Entries | 24,000 flows |
| VLAN IDs | 4,000 |
| Jumbo Frame Support | 9,198 bytes |
| Wireless AP Support | Up to 100 per switch/stack |
| Wireless Clients | 2,000 per switch/stack |
| Dimensions (H × W × D) | 1.75 in (4.45 cm) × 17.5 in (44.5 cm) × 17.7 in (45.0 cm) |
| MTBF | 303,230 hours |
| Power Supply Options | PWR-C1-350WAC (350W), PWR-C1-715WAC (715W), PWR-C1-1100WAC (1100W) |
| Power Consumption | Idle: 83.47W; 100% Traffic: 83.76W |
| Operating Temperature | Normal: -5°C to +45°C (up to 5,000 ft); Short-term: -5°C to +50°C (??6 hrs/year) |
| Humidity | 10% to 95% noncondensing |
| Acoustic Noise | 45 dB(A) max at 25°C |
| Stacking | StackWise-480 (up to 9 units) |
| Management Interfaces | 1 × RJ-45 console, 1 × 10/100 management |
| Security Features | 802.1X authentication, Port security |
| Standards Compliance | IEEE 802.3af/at (PoE+), UL/CE/NEBS certified |
| Minimum IOS | 16.6.1 or later |
| Key Features | 24-Port Copper Connectivity, Integrated Wireless Controller (up to 100 APs), StackWise-480 Technology, Energy Efficient Ethernet (EEE) support |
| C1-WS3850-24T/K9 | C1-WS3850-24T/K9 |
