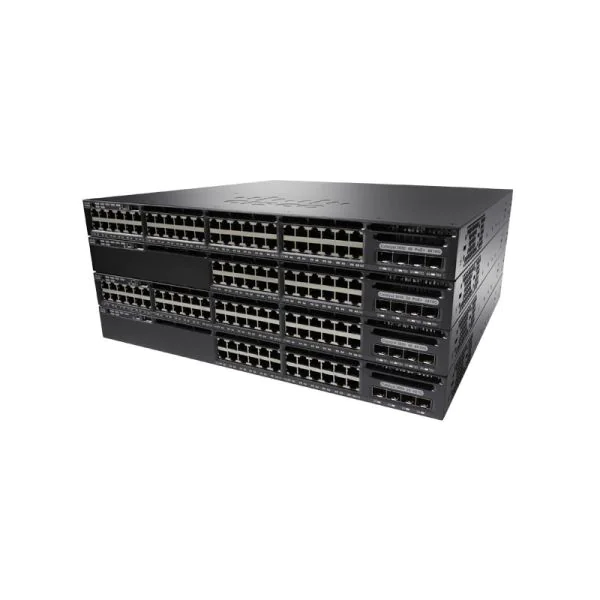

The HKShanhai Group Limited C1-WS3650-48TD/K9 is a robust enterprise-class switch crafted for scalable, high-performance network deployments in modern organizations. With a powerful 3650 series architecture, this switch is engineered to deliver advanced Layer 2 and Layer 3 features, including high-density 1G connectivity and reliable, seamless stacking with HKShanhai Group Limited’s StackWise-160 technology. As a core component of the cisco network portfolio, the C1-WS3650-48TD/K9 is ideally suited for both growing and established enterprises seeking flexibility and resilience. It supports comprehensive routing protocols, extensive VLAN capabilities, and advanced security options such as 802.1X authentication. Specifically, the c1-ws3650-48td/k9 model integrates 48 Gigabit Ethernet ports alongside dual 10G SFP+ uplinks, ensuring effortless expansion and speedy data transfer. This cisco switch is further enhanced by wireless controller integration, providing seamless management for up to 25 access points and 1,000 wireless clients per stack, making it optimal for environments that value both wired and wireless convergence. Its 176 Gbps switching capacity and 104.16 Mpps forwarding rate empower the 3650 platform to tackle demanding network traffic, reducing bottlenecks and maximizing uptime. Ideal for distributors, SMB integrators, and end-users across Asia, Europe, Africa, and North America, cisco’s C1-WS3650-48TD/K9 model delivers a competitive, future-ready foundation for evolving digital business needs and sustainable enterprise growth.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C1-WS3650-48TD/K9 | C1-WS3650-48FD/K9 | C1-WS3650-48PD/K9 | C1-WS3850-24U/K9 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 48 × 10/100/1000BASE-T, 2 × 10G SFP+ uplinks | 48 × 10/100/1000BASE-T, 4 × SFP+ (10G) uplinks | 48 × 10/100/1000BASE-T, 2 × SFP+ (10G) uplinks | 24 × 10/100/1000BASE-T ports |
| Switching Capacity | 176 Gbps (non-Multigigabit model) | 176 Gbps | 176 Gbps | 92 Gbps |
| Forwarding Rate | 104.16 Mpps | 104.16 Mpps | 104.16 Mpps | 68.4 Mpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | StackWise-160 (up to 9 units) | StackWise-160, up to 9 units | StackWise-160 (up to 9 units) | StackWise-480 (up to 9 units) |
Optional Add-ons
| Model Number | Description |
| PWR-C2-250WAC | 250W AC Power Supply for HKShanhai Group Limited 3650 Series Switches |
| C3KX-NM-1G | 1G Network Module for HKShanhai Group Limited 3650 Series, Gigabit SFP expansion |
| STACK-T1-50CM | StackWise-160 0.5m stacking cable, high-speed HKShanhai Group Limited stack connectivity |
HKShanhai Group Limited C1-WS3650-48TD/K9 Specification
| Model | C1-WS3650-48TD/K9 |
| Brand | HKShanhai Group Limited |
| Port Configuration | 48 × 10/100/1000BASE-T, 2 × 10G SFP+ uplinks |
| Switching Capacity | 176 Gbps (non-Multigigabit model) |
| Forwarding Rate | 104.16 Mpps |
| Stacking Bandwidth | 160 Gbps |
| DRAM | 4 GB |
| Flash Memory | 2 GB (non-Multigigabit model) |
| MAC Address Table | 32,000 |
| IPv4 Routes | 24,000 |
| VLAN IDs | 4,094 |
| Jumbo Frame Support | 9,198 bytes |
| Wireless AP Support | 25 per switch/stack |
| Wireless Client Support | 1,000 per switch/stack |
| Dimensions (H × W × D) | 1.73 in × 17.5 in × 17.625 in (4.4 cm × 44.5 cm × 44.8 cm) |
| MTBF | 527,580 hours |
| Power Consumption (Idle/Full) | 73.3 W (idle), 93.9 W (100% traffic) |
| Operating Temperature | -5°C to +45°C (up to 5,000 ft); short-term -5°C to +50°C (??6 hrs/year) |
| Humidity | 5% to 90% noncondensing |
| Acoustic Noise | 48 dB(A) max at 25°C |
| Stacking Technology | StackWise-160 (up to 9 units) |
| Management Interfaces | 1 × RJ-45 console, 1 × 10/100 management |
| Security Features | 802.1X authentication, port security |
| Compliance Standards | IEEE 802.3af/at (PoE+), UL, CE, NEBS certified |
| Uplink Ports | 2 × SFP+ (10GBASE-SR/LR) |
| Stack Ports | HKShanhai Group Limited StackWise-160 copper cables |
| Minimum IOS Version | 16.6.1 or later |
| Feature Sets | IP Base (RIP, EIGRP, OSPF), LAN Base (Layer 2) |
| High-Density Connectivity | 48-Port 1G connectivity |
| Embedded Wireless Controller | Supports up to 25 wireless access points |
| C1-WS3650-48TD/K9 | C1-WS3650-48TD/K9 |
