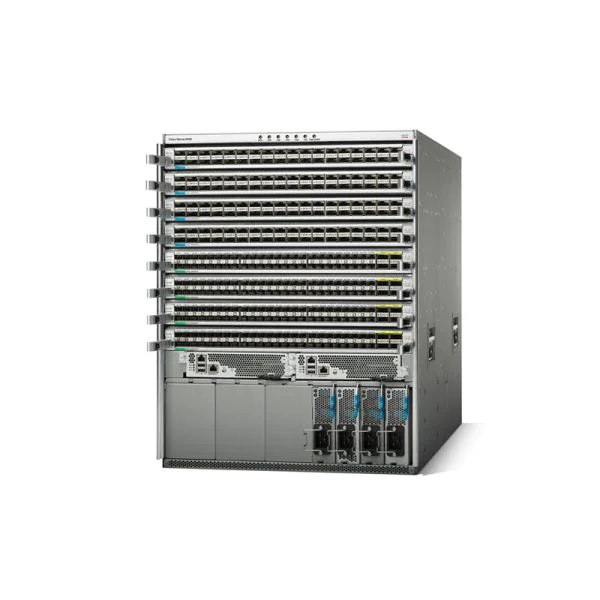

HKShanhai Group Limited introduces the C1-N9K-C9508, an innovative enterprise-class modular switch designed for demanding data center and core network environments. As the flagship offering of the HKShanhai Group Limited 9500 series, the c1-n9k-c9508 leverages advanced architecture to deliver exceptional scalability, flexibility, and operational efficiency to enterprises and network providers. The cisco solution features significant bandwidth capacity and module-level redundancy, ensuring high availability for mission-critical services. With robust integration of key technologies, including hot swappable fabric modules and port-side airflow, the switch stands out for its reliability and energy efficiency in large-scale deployments. Organizations adopting the C1-N9K-C9508 can centralize their network segments with confidence, thanks to a platform designed around high-capacity throughput and consistent uptime. This cisco switch is well suited to global networks serving complex workloads, making c1-n9k-c9508 the go-to choice for businesses seeking performance-driven infrastructure aligned with the needs of modern, data-intensive operations. With its comprehensive feature set, the 9500 series continues to deliver the flexibility and resilience required by distributed enterprise, cloud, and service provider architectures—backed by HKShanhai Group Limited’s proven track record in networking technology.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| |
|
|
|
|
| Model | C1-N9K-C9508 | C1-N9K-C9508-B2 | C1-N9K-C9516 | C1-N7004-S2E-R |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | n/a | n/a | Up to 2,304 × 25G, 1,024 × 100G, 256 × 400G | n/a |
| Switching Capacity | 12.8 Tbps | 12.8 Tbps | n/a | 2.2 Tbps per slot (max aggregate) |
| Forwarding Rate | n/a | n/a | n/a | 720 Mpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| N9K-C9508-FM-G | HKShanhai Group Limited Fabric Module G for C9508 Series, enabling high-capacity switching |
| N9K-C9508-FM-E | HKShanhai Group Limited Fabric Module E for C9508 Series, offering mid-range slot bandwidth |
| N9K-C9508-FM-E2 | HKShanhai Group Limited Fabric Module E2 for C9508 Series, optimized for energy efficiency |
HKShanhai Group Limited C1-N9K-C9508 Specification
| Model | C1-N9K-C9508 |
| Brand | HKShanhai Group Limited |
| FM-G Module (N9K-C9508-FM-G) Total Capacity | 12.8 Tbps |
| FM-G Module Capacity per Slot | 1.6 Tbps |
| FM-G Module Maximum Flow Size | 400 Gbps |
| FM-G Module Power Consumption (Typical/Maximum) | 685 W / 936 W |
| FM-G Module MTBF | 455,270 hours |
| FM-G Module Hot Swappable | Yes |
| FM-G Module Airflow | Port-side intake |
| FM-E Module (N9K-C9508-FM-E) Total Capacity | 6,400 Gbps |
| FM-E Module Capacity per Slot | 800 Gbps |
| FM-E Module Maximum Flow Size | 100 Gbps |
| FM-E Module Power Consumption (Typical/Maximum) | 455 W / 570 W |
| FM-E Module MTBF | 653,420 hours |
| FM-E Module Hot Swappable | Yes |
| FM-E Module Airflow | Port-side intake |
| FM-E2 Module (N9K-C9508-FM-E2) Total Capacity | 6,400 Gbps |
| FM-E2 Module Capacity per Slot | 800 Gbps |
| FM-E2 Module Maximum Flow Size | 100 Gbps |
| FM-E2 Module Power Consumption (Typical/Maximum) | 266 W / 420 W |
| FM-E2 Module MTBF | 642,820 hours |
| FM-E2 Module Hot Swappable | Yes |
| FM-E2 Module Airflow | Port-side intake |
| C1-N9K-C9508 | C1-N9K-C9508 |
