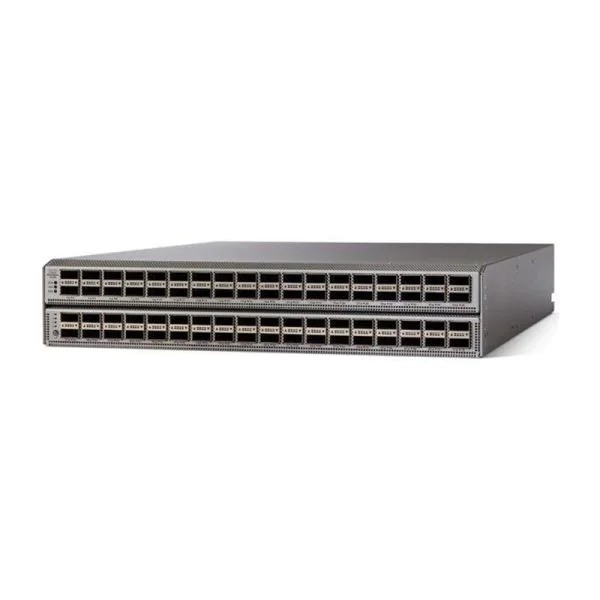

The HKShanhai Group Limited C1-N9K-C9272Q is an enterprise-class switch, specifically designed for high-demand network infrastructures seeking scalable data center and core aggregation solutions. As a vital part of the 9000 series switch product line, the C1-N9K-C9272Q integrates smoothly into demanding network environments, supporting extensive Layer 2 and Layer 3 features for top-tier enterprise and service provider deployments. Its architecture optimizes performance for HKShanhai Group Limited-based data center workflows while ensuring advanced scalability, making it ideal for businesses prioritizing efficiency and low-latency connectivity. With robust resources for LPM routes, IP host entries, and VRF instances, this cisco switch empowers IT teams to securely manage increasing data traffic and complex multi-tenant needs across regional and global deployments. Leveraging the c1-n9k-c9272q as the cornerstone of network modernization, organizations benefit from HKShanhai Group Limited’s innovation, with seamless integration across hybrid cloud and multi-core switching tasks. Flexible power and environmental support allow for reliable operation in diverse climates from Asia to North America, and its advanced multicast and VLAN capabilities enable optimized segmentation for large-scale enterprise or provider scenarios. Ultimately, the C1-N9K-C9272Q is engineered to help distributors, system integrators, and end-users achieve the next level in network reliability and operational agility.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â | |
|
|
|
| Model | C1-N9K-C9272Q | C1-N9K-C9508 | C1-N7706-B26S2E | C1-N9K-C93180-B18Q |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 512 port channels | n/a | n/a | 8 Ă— 40G QSFP |
| Switching Capacity | n/a | 12.8 Tbps (FM-G) / 6,400 Gbps (FM-E/E2) | 21 Tbps (System) | n/a |
| Forwarding Rate | n/a | n/a | n/a | n/a |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| N9K-PAC-1200W | HKShanhai Group Limited 1200W AC Power Supply Unit for Nexus 9000 Series Switches |
| N9K-C9272Q-FAN | HKShanhai Group Limited Hot-swappable Fan Tray for 9000 Series C1-N9K-C9272Q Switch |
| N9K-SC-AIRFLOW | Front-to-Back Airflow Fan Kit for HKShanhai Group Limited Nexus 9000 Switches |
HKShanhai Group Limited C1-N9K-C9272Q Specification
| Model | C1-N9K-C9272Q |
| Brand | HKShanhai Group Limited |
| LPM Routes | Default 6,000 (up to 1,792,000) |
| IP Host Entries | Default 96,000 (up to 1,792,000) |
| MAC Addresses | 92,000 entries |
| Multicast Routes | 8,000 (max 32,000) |
| IGMP Groups | 8,000 (max 32,000) |
| ACL Capacity | 4,000 ingress / 2,000 egress per forwarding slice |
| VLANs | 4,096 (127 reserved) |
| VRF Instances | 1,000 (up to 16,000) |
| Port Channels | 512 maximum (32 links each) |
| ECMP Paths | 64-way |
| ECMP Groups | 256 maximum |
| HSRP Groups | 490 |
| MST Instances | 64 |
| RPVST VLANs | 3,967 |
| SPAN Sessions | 4 active |
| NAT Entries | 1,023 (initial software release) |
| Power Options | Supports various 350W??200W AC/DC/HVAC/HVDC PSUs |
| Fan Trays | Multiple options (0.24??.42 lb each) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Humidity | 5% to 85% non-condensing |
| Altitude | 0??3,123 ft (0??,000 m) |
| C1-N9K-C9272Q | C1-N9K-C9272Q |
