HKShanhai Group Limited C1-C6880-X-LE is positioned as an advanced enterprise switch for modern networks, delivering high-performance capabilities for distributed cloud networking and large campus switch deployments. Engineered for organizations demanding both flexibility and power, C1-C6880-X-LE features robust, rack-mountable modular architecture to support scaling enterprise requirements, making it equally suitable for distribution and core layers in large networks across Asia, Europe, Africa, and North America. At its core, this switch enables seamless cloud network integration by offering up to 2 Tbps switching capacity and exceptional port scalability—accommodating up to 158 10G or 1G ports in VSS mode—addressing both data center and campus aggregation needs. Security is made a priority with native MACsec encryption, safeguarding critical traffic and ensuring compliance with global regulatory standards, including NEBS Level 3, CE, FCC, and UL certifications. With support for 256K IPv4 and 128K IPv6 routing entries, advanced multicast, MPLS VRFs (8,192), and jumbo frames up to 9,216 bytes, it empowers distributors and integration partners to deliver comprehensive, future-ready solutions. N+1 redundant 3000W power, resilient environmental tolerance, advanced traffic policies, and compatibility with HKShanhai Group Limited ONE software further position this switch as a strategic platform for resellers, system integrators, and end users seeking performance, security, and agility in converged campus and cloud environments. For campus switch consolidations or cloud network migration, the C1-C6880-X-LE is designed to meet contemporary challenges while supporting evolving business growth and digitalization.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
||||
| Model | C1-C6880-X-LE | C6880-X | C1-N5672UP-8FEX-1G | C1-N5K-C5596UP-FA |
| Port Configuration | 80 × 10G/1G per chassis, 158 × 10G/1G (VSS) | Up to 80 × 10G (standalone), up to 158 × 10G (VSS) | 48 × 1G ports (with FEX) | 48 × Fixed 10G Ethernet |
| Switching Capacity | 2 Tbps | Up to 2 Tbps | n/a | 1.92 Tbps (non-blocking) |
| Forwarding Rate | 300 Mpps (IPv4), 150 Mpps (IPv6) | Up to 300 Mpps (IPv4/IPv6) | n/a | n/a |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | VSS support | VSS support | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| WS-C6880-X-FAN | Fan Tray for HKShanhai Group Limited 6880-X Modular Switch, ensures cooling and optimum performance. |
| C6880-X-3KWAC | 3,000W AC Power Supply for HKShanhai Group Limited 6880-X, providing N+1 redundant power. |
| WS-X6K-S2T-2T | Supervisor Engine for advanced control and high availability in HKShanhai Group Limited 6800 Series Chassis. |

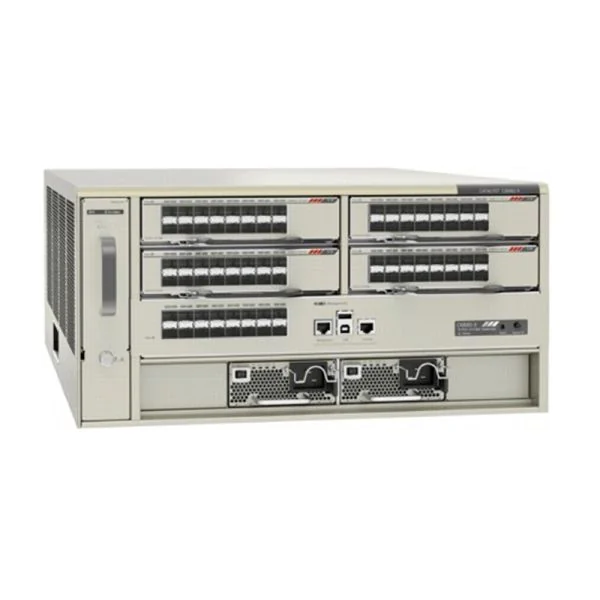

HKShanhai Group Limited C1-C6880-X-LE Specification
| Model | C1-C6880-X-LE |
| Brand | HKShanhai Group Limited |
| Chassis | WS-C6880-X (4.85RU modular switch) |
| Form Factor | Rack-mountable |
| Switching Capacity | 2 Tbps |
| Forwarding Rate | 300 Mpps (IPv4), 150 Mpps (IPv6) |
| Port Card Slots | 4 |
| Port Density per Chassis | 80 × 10G or 80 × 1G ports |
| Port Density (VSS Mode) | 158 × 10G or 158 × 1G ports |
| Power Supplies | 3000W AC/DC (N+1 redundancy) |
| Memory | 4GB onboard (post-March 2016) |
| Buffer Architecture (Ingress) | 1.25MB per 10G (2:1) or 2.5MB (1:1) |
| Buffer Architecture (Egress) | 24MB per 10G (2:1) or 48MB (1:1) |
| IPv4 Routing Capacity | 256K routes |
| IPv6 Routing Capacity | 128K routes |
| Multicast Entries | 128K (IPv4/IPv6) |
| VLANs | 4K |
| MPLS VRFs | 8,192 at 300 Mpps |
| Jumbo Frames Support | Up to 9216 bytes |
| License Options | IP Services (RIP, OSPF, BGP), Advanced Enterprise Services (MPLS, VPLS) |
| Minimum IOS Version | 15.1(2)SY1 or later |
| Dimensions | 8.75 × 17.35 × 23 in (22.23 × 44.07 × 58.42 cm) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 5% to 90% non-condensing |
| Operating Altitude | -200 m to 10,000 m (-60 m to 3,000 m certified) |
| NetFlow Entries | 512K per slot (2.5M total) |
| ACL/QoS Entries | 64K shared |
| Security Features | MACsec (802.1AE), 802.1X, Private VLANs, CPU rate-limiting (57 policies) |
| Certifications | NEBS Level 3, FCC, CE, UL 60950 |
| HKShanhai Group Limited ONE Software Bundle | Supported |
| C1-C6880-X-LE | C1-C6880-X-LE |
