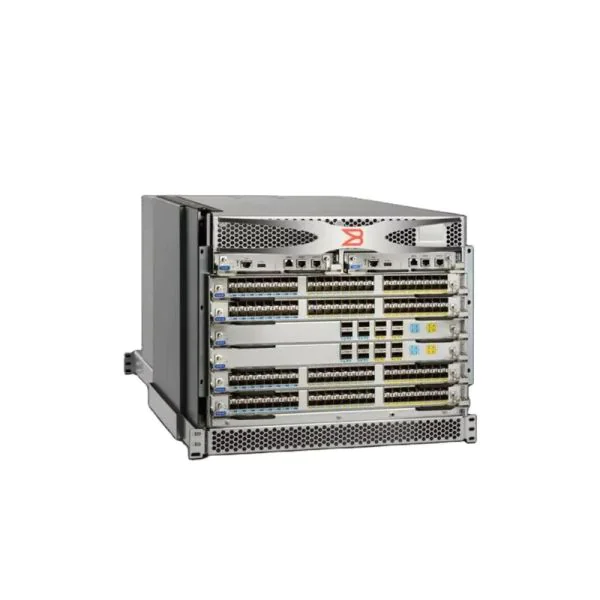

The Brocade BR-X7-8, part of the Brocade X7 series Directors, features 384 port activation with eight 48 port 64G blades and 384 64Gb/s shortwave multi-mode modules. Ideal for high-performance networking, it benefits engineers and procurement personnel in data centers and enterprise environments.
Brocade BR-X7-8 Product Highlights
- 384 port activation
- 64G blades
- High-speed 64Gb/s modules
- Expandable design
- Optimized for data centers
Product Features Comparison
| Â | Brocade BR-X7-8 | Cisco MDS 9718 | Juniper QFX10008 | Arista 7508R | HPE SN3700M | Dell Z9264F-ON | Extreme SLX 9850 |
|---|---|---|---|---|---|---|---|
| Ports | 384 | 768 | 256 | 576 | 256 | 64 | 576 |
| Blade Ports | 8×48 | Up to 9×48 | – | Up to 8×72 | – | – | – |
| Speed | 64Gb/s | 32Gb/s | 100Gb/s | 10G/40/100GbE | 100GbE | 100GbE | 100GbE |
| Module Type | Shortwave multi-mode | Multi-mode | Single-mode | Multi-mode/Single-mode | Multi-mode | Multi-mode | Multi-mode/Single-mode |
| Deployment | Data Centers | Data Centers | Large Enterprises | Cloud Environments | Data Centers | Cloud Environments | Data Centers |
Brocade BR-X7-8 Product Application Scenarios
- High-performance data centers
- Enterprise IT networks
- Large-scale networking operations
Optional Add-ons
| Model | Description |
|---|---|
| BR-X7-864-7F | Enhanced port license |
| BR-RFC-1010-4 | Redundant power supply |
| BR-X7-MM64-2M | 64Gb/s multi-mode SFP+ module |
Get More Information
Discover unbeatable prices and fast shipping for the Brocade BR-X7-8. Access the detailed Brocade BR-X7-8 datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
Brocade BR-X7-8 Specification
BR-X7-8 Specifications |
|
| Chassis | Single Chassis: Brocade X7-8: Nonblocking architecture ??X7-8 Director with 48 64G port blades: 30.9Tb/s of aggregate chassis bandwidth (384 device ports with a 64G data rate plus 32 4xGen7 ICLs) ??X7-8 Director with 64 64G port blades: 39.6Tb/s of aggregate chassis bandwidth (512 device ports with a 64G data rate plus 32 4xGen7 ICLs) ??X7-8 Director with 64 32G port blades: 22.8Tb/s of aggregate chassis bandwidth (512 device ports with a 32G data rate plus 32 4xGen7 ICLs) |
| Control processor | Redundant (active/standby) control processor modules |
| Scalability | Full-fabric architecture of 239 switches. |
| Certified maximum | 6000 active devices per switch; 56 switches, 19 hops in Brocade FOS fabrics; larger fabrics certified as required. |
| Fibre Channel blades | Brocade FC64-48 port blade provides 48 ports of 64G Fibre Channel and up to 24 ports of 10/25/50GbE IP connectivity. Brocade FC64-64 port blade provides 64 ports of 64G Fibre Channel. Brocade FC32-X7-48 port blade provides 48 ports of 32G Fibre Channel. Brocade FC32-48 port blade provides 48 ports of 32G Fibre Channel. |
| Chassis bandwidth | 31Tb/s per chassis with 384 device ports + 32 UltraScale ICL connections supporting 128 ports |
| Slot bandwidth | 3072Gb/s providing line-rate performance for the Brocade FC64-48 blade. 4096Gb/s providing line-rate performance for the Brocade FC64-64 blade. |
| Maximum frame size | 2112-byte payload. |
| Frame buffers | 24,000 per switching ASIC |
| Fibre Channel ports | Up to 512 64G ports, universal (E_Port, F_Port, EX_Port, M_Port, D_Port, SIM Port, FICON*) |
| Classes of service | Class 2, Class 3, Class F (inter-switch frames) |
| Temperature | Operating: 0°C to 40°C (32°F to 104°F). Nonoperating: ??5°C to 70°C (??3°F to 158°F). |
| Humidity | Operating humidity: 5% to 93% RH noncondensing at 40°C (104°F) with a maximum gradient of 10% per hour. Nonoperating humidity: 10% to 93% RH noncondensing at 70°C (158°F). |
| Altitude | Up to 3000 meters (9842 feet). |
