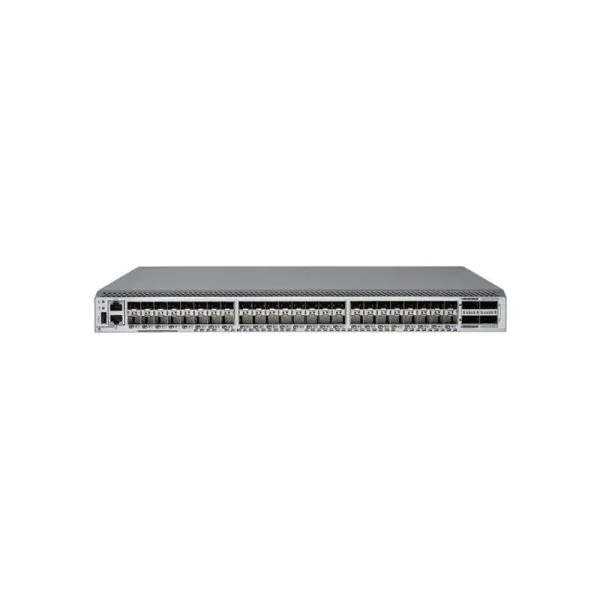

The Brocade BR-G620-24-16G-R is a high-performance enterprise switch designed to deliver robust connectivity for advanced networking solutions. This Brocade switch is purpose-built for enterprise data centers, ensuring seamless and reliable operations in environments where mission-critical applications demand consistently high throughput. Leveraging its 2 Tb/s of bandwidth and scalability to support up to 6,000 active nodes, the BR-G620-24-16G-R empowers high-performance computing environments with comprehensive Fibre Channel support for up to 32G speeds. Through its advanced networking solutions, this model optimizes network architecture, delivering scalable, secure, and resilient fabric infrastructure. The switch’s full duplex capability, QSFP auto-sensing, and dual hot-swappable power supplies offer both flexibility and uninterrupted service, addressing the evolving needs of enterprise data centers. With features such as frame-based ISL trunking and comprehensive FICON support, the BR-G620-24-16G-R is an ideal pillar for modern high-performance computing environments seeking advanced networking solutions that scale across multi-site data fabrics. Designed with cutting-edge hardware and easy management, Brocade’s latest innovation ensures streamlined resource integration, future-readiness, and the reliability required by today’s demanding network infrastructures.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | BR-G620-24-16G-R | BR-6505-12-0R | BR-G730-48-64G-F | C9300L-24-E-A |
| Brand | Brocade | Brocade | Brocade | Cisco |
| Port Configuration | 24 to 64 @ 32G | 24 x 16G FC SFP+ (12 Active) | 24 to 64 @ 64G | n/a |
| Switching Capacity | 2 Tb/s | 384 Gbps | 4.096 Tb/s | 56 Gbps – 176 Gbps |
| Forwarding Rate | n/a | n/a | n/a | 41.66 Mpps – 130.95 Mpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | StackWise-320 |
Optional Add-ons
| Model Number | Description |
| XBR-000180 | Brocade SFP+ 16G Transceiver Module for BR-G620 Series |
| XBR-0001-0001 | Brocade Redundant Hot-Swappable Power Supply (205W) for G620 |
| XBR-000245 | Brocade 0.5m Mini-SAS HD Active Optical Cable for high-speed stacking BR-G620 |
Brocade BR-G620-24-16G-R Specification
| Model | BR-G620-24-16G-R |
| Brand | Brocade |
| Lifecycle | Active |
| Access Gateway | Supports |
| Bandwidth | 2 Tb/s |
| Certified Maximum | 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required |
| Fibre Channel Performance | Fibre Channel: 4.25Gb/s, 8.5Gb/s, 10.53Gb/s, 14.025Gb/s, 28.05Gb/s line speed, full duplex; auto-sensing 4/8/10/16/32G port speeds; 10Gb/s optionally programmable to fixed speed. QSFP ports auto-sensing 4×32/4×16/4×8/4×4G with Brocade FOS v8.2.0 |
| FICON Support | Supports |
| Frame Based ISL Trunking | 256Gb/s frame-based trunk (optional) |
| Power | 205W, dual hot-swappable power supplies |
| Size (mm) | 440(W) x 43.9(H) x 355.6(D) |
| Total Line Rate Ports | 24 to 64 @ 32G |
| BR-G620-24-16G-R | BR-G620-24-16G-R |
