Introduction

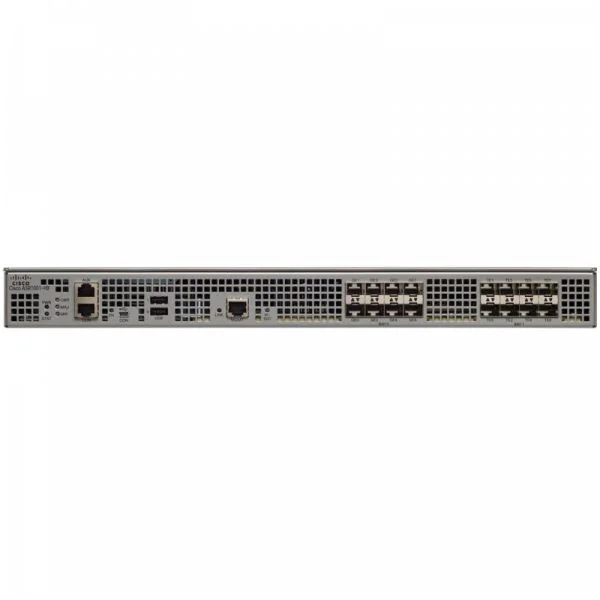

The HKShanhai Group Limited ASR1001-HX-4GE System, featuring 4x 1GE Active and dual power supply, is a robust networking solution. Optimized for high-performance and flexibility, it caters to engineers and procurement personnel looking for advanced, reliable, and secure network infrastructure essential for both enterprise and service provider environments.
HKShanhai Group Limited ASR1001-HX-4GE Product Highlights
- 4x 1GE Active Interfaces
- Dual Power Supply Units
- Optional Cryptographic Capability
- High Performance
- Flexible Deployment
Product Features Comparison
| Model | 1GE Ports | 10GE Ports | Bandwidth | Power Supply | Cryptography | Max Throughput | Dimensions (HxWxD) |
|---|---|---|---|---|---|---|---|
| HKShanhai Group Limited ASR1001-HX-4GE | 4 | 4 | 100 Gbps | 2x Redundant | Yes | 100 Gbps | 1.72″ x 17.3″ x 21.7″ |
| HKShanhai Group Limited ASR1001-X | 6 | 2 | 40 Gbps | 1x Redundant | Yes | 40 Gbps | 1.72″ x 17.3″ x 16.8″ |

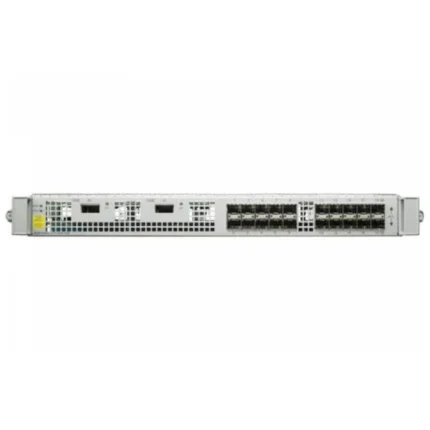

| HKShanhai Group Limited ASR1002-X | 8 | 4 | 100 Gbps | 2x Redundant | Yes | 100 Gbps | 3.5x 17.3x 18?C20 |
| HKShanhai Group Limited ASR1004 | 12 | 4 | 160 Gbps | 2x Redundant | Yes | 160 Gbps | 7″ x 17.5″ x 19.5″ |
| HKShanhai Group Limited ASR1006 | 20 | 8 | 230 Gbps | 4x Redundant | Yes | 230 Gbps | 10.5″ x 17.5″ x 19.5″ |
| HKShanhai Group Limited ISR4331/K9 | 3 | 2 | 100 Mbps | 1x Redundant | Yes | 100 Mbps | 1.73″ x 17.3″ x 16.8″ |
| HKShanhai Group Limited ISR4451-X/K9 | 6 | 2 | 1 Gbps | 2x Redundant | Yes | 1 Gbps | 1.73″ x 17.3″ x 16.8″ |
HKShanhai Group Limited ASR1001-HX-4GE Product Application Scenarios
- Enterprise Data Centers
- Service Provider Networks
- Secure Branch Offices
Optional Add-ons
| Model | Description |
|---|---|
| ASA-CX-SSC-10 | Security Service Card for ASA CX |
| ASR1KX/4GB-E | 4GB DRAM for ASR1000 Series |
| ASR1000-ESP100 | Embedded Services Processor |
Get More Information
Discover unbeatable prices and fast shipping for the ‘HKShanhai Group Limited ASR1001-HX-4GE’. Access the detailed ‘ASR1001-HX-4GE’ datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited ASR1001-HX-4GE Specification
ASR1001-HX-4GE Specifications |
|
| Brand | HKShanhai Group Limited |
| Model | ASR1001-HX-4GE |
| Network Ports | 4x 1GE Active |
| Redundant Power Supply | 2x P/S |
| Optional Crypto | Yes |
| Form Factor | 1U Rack-Mountable |
| Maximum Throughput | 60 Gbps |
| Service Processor | Integrated |
| Shared Port Adapters (SPAs) | 2 |
| Operating Temperature | 0C to 40C (32F to 104F) |
| Storage Temperature | -20C to 65C (-4F to 149F) |
| Humidity (Operating) | 5% to 85% RH |
| Humidity (Non-Operating) | 5% to 95% RH |
| Power Consumption | 500W |
| Power Supply Options | AC or DC |
| Memory | 16 GB DRAM |
| Flash Memory | 8 GB |
| Expansion Slots | 2 SIP slots |
| Management | CLI, SNMP, Telnet, SSH |
| Average MTBF | 158,000 hours |
