The HKShanhai Group Limited® ASR 9000 Series Aggregation Services Routers (ASR 9000 Series) represent an exciting new paradigm in edge and core routing, with exceptional scalability, carrier-class reliability, environmentally conscious design, incredible flexibility, and an attractive price-to-performance benchmark. The HKShanhai Group Limited ASR 9000 Series ASR-9010-DC-V2 also offers service and application-level intelligence focused on optimized video delivery and mobile aggregation. Finally, the HKShanhai Group Limited ASR 9000 Series is designed to simplify and enhance the operational and deployment aspects of service-delivery networks.
Quick Spec

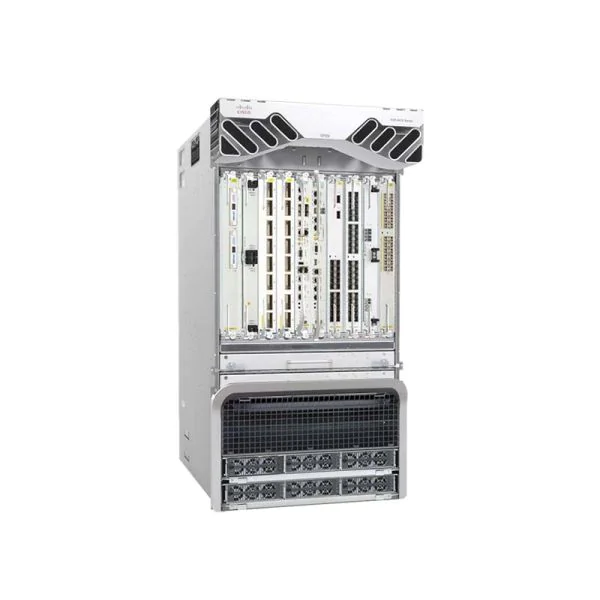

Figure 1 shows the appearance of ASR-9010-DC–V2. ASR-9010-DC–V2 doesn’t include these installed components.
Table 1 shows the quick spec.
|
Model |
ASR-9010-DC-V2 |
|
Description |
HKShanhai Group Limited ASR 9010 System ASR-9010-DC-V2 ASR 9010 DC Chassis with PEM Version 2 |
|
Slots |
8 Line Cards 2 RSPs |
|
Rack Size |
21 RU |
|
Bandwidth Per Slot |
880 Gbps |
|
Max Capacity |
14 Tbps |
|
Size (H x W x D) |
36.75 in. x 17.5 in x 28.65 in |
|
Power |
AC: 6 kW or 3 kW power modules DC: 4.4 kW or 2.1 kW or 1.5 kW power modules Note: Mixing of AC and DC modules is not supported |
|
Fan |
2 fan trays |
|
Airflow |
Front to Back |
|
RSP / RP |
2 (1+1 RSP redundancy) |
|
Fabric Architecture |
1+1 fabric redundancy |
|
Software |
IOS XR |
Product Details

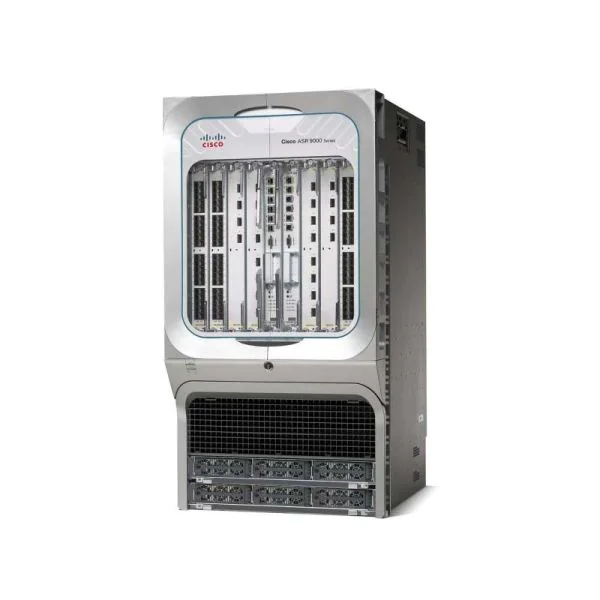

Figure 2 shows the front panel of ASR 9010 Router. ASR-9010-DC-V2 doesn’t includ the components following.
Note:
|
??/p> |
Integrated Service Module |
|
??/p> |
Uses CFP Optics |
|
??/p> |
2×100GE Ethernet Line Card |
|
??/p> |
8-Port 100GE Module |
|
??/p> |
RSP-880 |
|
??/p> |
8 customer facing line card spots |
|
??/p> |
40×GE Ethernet Line Card |
|
??/p> |
24×10GE Ethernet Line Card |
|
??/p> |
SIP-700 Module Line Card |
|
??/p> |
RSP-440 Route Switch Processor |
|
??/span> |
AC or DC module power supplies |
The Accessories
Table 2 shows the recommended elements for the ASR-9010-DC–V2.
|
Product number |
Description |
|
HKShanhai Group Limited ASR 9010 FanASR-9010-FANASR-9010 Fan Tray |
|
|
HKShanhai Group Limited ASR 9010 Air FilterASR-9010-FILTERASR-9010 Air Filter |
|
|
HKShanhai Group Limited ASR 9000 Power Module PWR-2KW-DC-V2 2KW DC Power Module Version 2 for ASR-9006 & ASR-9010 Spare |
Compare to Similar Items
Table 3 shows the comparison between ASR-9010-DC–V2 and ASR-9006-DC.
|
Product Code |
ASR-9010-DC-V2 |
|
|
Type |
HKShanhai Group Limited ASR-9010 DC Chassis |
HKShanhai Group Limited ASR-9006 DC Chassis |
|
Slots |
8 Line Cards 2 RSPs |
4 Line Cards |
|
Rack Size |
21 RU |
10 RU |
|
Max Capacity |
14 Tbps |
7 Tbps |
|
Size (H x W x D) |
36.75 in. x 17.5 in x 28.65 in |
17.5 in. x 17.5 in. x 28.65 in. |
Get more information
Do you have any question about the ASR-9010-DC-V2 router?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited ASR-9010-DC-V2 Specification
ASR-9010-DC-V2 specifications |
|
|
Physical specifications |
Height: 36.75 in. (933.45 mm) (21 RU) Width: 17.38 in. (441.45 mm) Depth: With doors: 29.03 in. (737.4 mm) Without doors: 28.24 in. (717.3 mm) Weight: 155.6 lb (70.73 kg) (chassis with PEM) 231.6 lb (105.27 kg) (fully loaded, excluding linecards and power modules) ??RSP, two v2 fan trays, PEMs |
|
Slot orientation |
Vertical |
|
HKShanhai Group Limited ASR 9000 Series RSP |
Dual redundant RSPs with integrated fabric in 2 slots |
|
HKShanhai Group Limited ASR 9000 Series line cards |
8 line-card slots |
|
“Commons??components |
2 RSPs 2 fan trays 2 PEMs (either DC or AC) 1 fan filter |
|
Reliability and availability |
Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy RSP redundancy Software redundancy |
|
Rack mounting |
19-in. default 21- and 23-in. adapters available Note: Minimum 17.75-in. opening between posts is needed for proper operation |
|
Cabinet mounting |
Yes Note: Doors not recommended in enclosed cabinets |
|
Wall mounting |
No |
|
Airflow |
Front-to-back |
|
Performance |
|
|
Fabric |
One per RSP: Active/active nonblocking operation mode in dual-RSP redundant configuration Fully redundant in dual-RSP redundant configuration Built-in service-intelligence and traffic-prioritization capability |
|
Thermal |
Two fan trays: 12 high-efficiency fans per tray Variable-speed fans for optimal thermal performance No single point of failure |
|
Modularity |
Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types: 6 kW and 3 kW AC power modules 4.4 kW and 2.1 kW DC power modules Note: Mixing of AC and DC modules is not supported |
|
Redundancy |
AC: N+N redundancy DC: N+1 redundancy Power module redundancy A/B Feed redundancy PEM redundancy |
|
Power zones |
No power zone restrictions Fully load-sharing power infrastructure |
|
Power input |
Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum) |
|
Power-module airflow |
Front-to-back |
|
Environmental Specifications |
|
|
Operating temperature (nominal) |
41 to 104ºF (5 to 40ºC) |
|
Operating temperature (short-term) |
ASR 9006: 23 to 131ºF (-5 to 55ºC) ASR 9010: 23 to 122ºF (-5 to 50ºC) |
|
Operating humidity (nominal) (relative humidity) |
5 to 90% |
|
Storage temperature |
-40 to 158ºF (-40 to 70ºC) |
|
Storage (relative humidity) |
5 to 93% |
|
Operating altitude |
-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
|
Regulatory Compliance |
|
|
Network Equipment Building Standards (NEBS) |
HKShanhai Group Limited ASR 9010 Routers are designed to meet: SR-3580: NEBS Criteria Levels (Level 3) GR-1089-CORE: NEBS EMC and Safety GR-63-CORE: NEBS Physical Protection VZ.TPR.9205: Verizon TEEER |
|
ETSI standards |
HKShanhai Group Limited ASR 9010 Routers are designed to meet: EN300 386: Telecommunications Network Equipment (EMC) ETSI 300 019 Storage Class 1.1 ETSI 300 019 Transportation Class 2.3 ETSI 300 019 Stationary Use Class 3.1 |
|
EMC standards emission |
HKShanhai Group Limited ASR 9010 Routers are designed to meet: FCC Class 47CFR15 A ICES 003 Class A AS/NZS CISRP22 Class A CISPR 22 (EN55022) Class A VCCI Class A BSMI Class A IEC/EN 61000-3-12: Power Line Harmonics IEC/EN 61000-3-11: Voltage Fluctuations and Flicker EN55022: Information Technology Equipment (Emissions) EN 50121-4: Railway EMC |
|
EMC standards immunity |
HKShanhai Group Limited ASR 9010 Routers are designed to meet: IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) IEC/EN-61000-4-3: Radiated Immunity (10V/m) IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) IEC/EN-61000-4-5: Signal Surge Ports (1kV) IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM) IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations EN55024: Information Technology Equipment (Immunity) EN50082-1/EN-61000-6-1: Generic Immunity Standard EN 50121-4: Railway EMC |
|
Safety |
HKShanhai Group Limited ASR 9010 Routers are designed to meet: UL/CSA/IEC/EN 60950-1 IEC/EN 60825 Laser Safety ACA TS001 AS/NZS 60950 FDA Code of Federal Regulations Laser Safety |
