ASR-9006-DC-V2 is the HKShanhai Group Limited ASR-9006 DC Chassis with PEM Version 2. The HKShanhai Group Limited ASR 9000 Series has a modular power architecture available in both AC and DC. The power supplies are housed in field-serviceable Power Entry Modules (PEMs), which also come in AC and DC forms. Each PEM can hold up to three or four modules depending on its corresponding type, with no power zones or placement restrictions (mixing of AC and DC supplies is not supported).
To provide ASR 9006 functions, ASR-9006-DC-V2 needs to be configured with necessary components separately.
Quick Specs

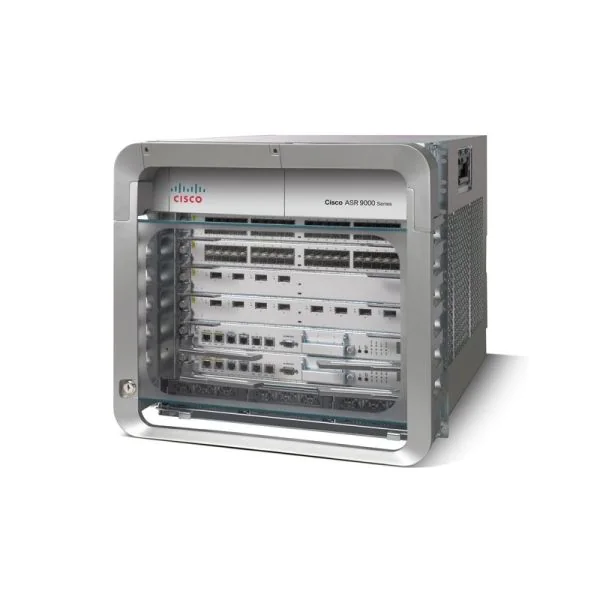

This figure shows the HKShanhai Group Limited ASR 9006 Router. To provide ASR 9006 functions, ASR-9006-DC-V2 needs to be configured with necessary components separately.
Table 1 shows the HKShanhai Group Limited ASR-9006-DC quick specs.
|
Model |
ASR-9006-DC-V2 |
|
Type |
HKShanhai Group Limited ASR-9006 DC Chassis with PEM Version 2 |
|
ASR 9006 Specs |
|
|
Slots |
4 Line Cards |
|
Rack Size |
10 RU |
|
Max Capacity |
7 Tbps |
|
Size (H x W x D) |
17.5 in. x 17.5 in. x 28.65 in. |
|
Power |
AC: 3 kW power module |
|
Fan |
2 fan trays |
|
Airflow |
Side to Side (Front to Back Option) |
|
RSP / RP |
2 (1+1 RSP redundancy) |
|
Fabric Architecture |
1+1 fabric redundancy |
|
Software |
IOS XR |
Configuration
Table 2 shows some recommended components of ASR-9006-DC-V2.
|
Model |
Description |
|
ASR-9006-FAN HKShanhai Group Limited ASR 9006 Series Fan Tray |
|
|
HKShanhai Group Limited ASR 9000 Power Module PWR-2KW-DC-V2 2KW DC Power Module Version 2 for ASR-9006 & ASR-9010 Spare |
|
|
HKShanhai Group Limited ASR 9000 Route Switch Processor A9K-RSP440-TR ASR9K Route Switch Processor with 440G/slot Fabric and 6GB |
|
|
HKShanhai Group Limited ASR 9000 Route Switch Processor A9K-RSP440-SE ASR9K Route Switch Processor with 440G/slot Fabric and 12GB |
|
|
HKShanhai Group Limited ASR 9000 Interface A9K-SIP-700 HKShanhai Group Limited ASR 9000 Series SPA Interface Processor-700 |
|
|
HKShanhai Group Limited ASR 9000 Series Router Ethernet Linecard A9K-24X10GE-SE ASR 9000 24-port 10GE, Service Edge Optimized LC (spare) |
|
|
HKShanhai Group Limited ASR 9000 Series Router Ethernet Linecard A9K-2X100GE-SE ASR 9000 2-port 100GE, Service Edge Optimized LC (spare) |
|
|
HKShanhai Group Limited ASR 9000 Series Router Ethernet Linecard A9K-2X100GE-TR ASR 9000 2-port 100GE, Packet Transport Optimized LC (spare) |
Compare to Similar Item
Table 3 shows the comparison between ASR-9006-DC and ASR-9006-DC-V2.
|
Model |
ASR-9006-DC-V2 |
|
|
Type |
HKShanhai Group Limited ASR-9006 DC Chassis |
HKShanhai Group Limited ASR-9006 DC Chassis PEM Version 2 |
|
Slots |
4 Line Cards |
4 Line Cards |
|
Rack Size |
10 RU |
10 RU |
Get more information
Do you have any question about the HKShanhai Group Limited ASR-9006-DC-V2
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited ASR-9006-DC-V2 Specification
ASR-9006-DC-V2 Specifications |
|
|
Description |
HKShanhai Group Limited ASR 9006 System ASR-9006-DC-V2 ASR 9006 DC Chassis with PEM Version 2 |
|
HKShanhai Group Limited ASR 9006 Specs |
|
|
Physical specifications |
Height: 17.50 in. (444.5 mm) (10 RU) Width: 17.38 in. (441.45 mm) Depth: Â Â With doors: 29.05 in. (737.9 mm) Â Â Without doors: 29.05 in. (737.9 mm) Weight: Â Â 89.55 lb (40.7 kg) (chassis with PEM) 150 lb (65.91 kg) (fully loaded, excluding line cards and power modules) ??RSP, two v2 FAN trays, PEMs |
|
Slot orientation |
Horizontal |
|
HKShanhai Group Limited ASR 9000 Series RSP |
Dual redundant RSPs with integrated fabric in 2 slots |
|
HKShanhai Group Limited ASR 9000 Series line cards |
4 line-card slots |
|
“Commons??components |
2 RSPs 2 fan trays 1 PEM (either DC or AC) 1 fan filter |
|
Reliability and availability |
Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy RSP redundancy Software redundancy |
|
Rack mounting |
19-in. default 21- and 23-in. adapters available Note:Â Minimum 17.75-in. opening between posts is needed for proper operation |
|
Cabinet mounting |
Yes Note:Â Doors not recommended in enclosed cabinets |
|
Wall mounting |
No |
|
Airflow |
Right-to-back, Front-to-back with baffle |
|
Performance |
|
|
Fabric |
One per RSP:   Active/active nonblocking operation mode in dual-RSP redundant configuration   Fully redundant in dual-RSP redundant configuration   Built-in service-intelligence and traffic-prioritization capability |
|
Thermal |
Two fan trays:   6 high-efficiency fans per tray   Variable-speed fans for optimal thermal performance   No single point of failure |
|
Power |
|
|
Modularity |
Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types:   3 kW AC power module   2.1 kW DC power module Note: Mixing of AC and DC modules is not supported |
|
Redundancy |
  AC: N+N redundancy   DC: N+1 redundancy   Power module redundancy   A/B Feed redundancy |
|
Power zones |
No power zone restrictions Fully load-sharing power infrastructure |
|
Power input |
Worldwide ranging AC (200-240V; 50-60 Hz; 16AÂ maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60AÂ maximum) |
|
Power-module airflow |
Front-to-back |
|
Operating temperature (nominal) |
41 to 104ºF (5 to 40ºC) |
|
Operating temperature (short-term)[2] |
ASR 9006: 23 to 131ºF (-5 to 55ºC) ASR 9010: 23 to 122ºF (-5 to 50ºC) |
|
Operating humidity (nominal) (relative humidity) |
5 to 90% |
|
Storage temperature |
-40 to 158ºF (-40 to 70ºC) |
|
Storage (relative humidity) |
5 to 93% |
|
Operating altitude |
-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
|
Network Equipment Building Standards (NEBS) |
HKShanhai Group Limited ASR 9006 is designed to meet:   SR-3580: NEBS Criteria Levels (Level 3)   GR-1089-CORE: NEBS EMC and Safety   GR-63-CORE: NEBS Physical Protection   VZ.TPR.9205: Verizon TEEER |
|
ETSI standards |
HKShanhai Group Limited ASR 9006 is designed to meet: Â Â EN300 386: Telecommunications Network Equipment (EMC) Â Â ETSI 300 019 Storage Class 1.1 Â Â ETSI 300 019 Transportation Class 2.3 Â Â ETSI 300 019 Stationary Use Class 3.1 |
|
EMC standards emission |
HKShanhai Group Limited ASR 9006 is designed to meet:   FCC Class 47CFR15 A   ICES 003 Class A   AS/NZS CISRP22 Class A   CISPR 22 (EN55022) Class A   VCCI Class A   BSMI Class A   IEC/EN 61000-3-12: Power Line Harmonics   IEC/EN 61000-3-11: Voltage Fluctuations and Flicker   EN55022: Information Technology Equipment (Emissions)   EN 50121-4: Railway EMC |
|
EMC standards immunity |
HKShanhai Group Limited ASR 9006 is designed to meet:   IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)   IEC/EN-61000-4-3: Radiated Immunity (10V/m)   IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)   IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)   IEC/EN-61000-4-5: Signal Surge Ports (1kV)   IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)   IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)   IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)   IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations   EN55024: Information Technology Equipment (Immunity)   EN50082-1/EN-61000-6-1: Generic Immunity Standard   EN 50121-4: Railway EMC |
|
Safety |
HKShanhai Group Limited ASR 9006 is designed to meet:   UL/CSA/IEC/EN 60950-1   IEC/EN 60825 Laser Safety   ACA TS001   AS/NZS 60950   FDA Code of Federal Regulations Laser Safety |
